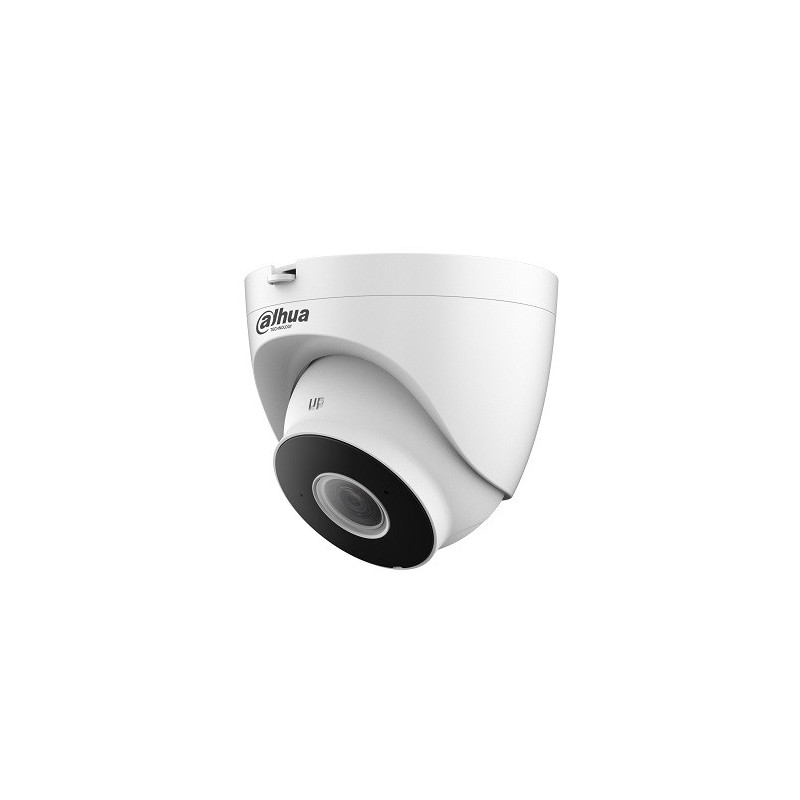

IP camera HDW1230DT-STW. 2MP with IR up to 30m. WIFI. SD up to 256GB. 2.8mm 100 3D-NO

IP camera HDW1230DT-STW. 2MP with IR up to 30m. WIFI. SD up to 256GB. 2.8mm 100 3D-NO

Short description:
IP camera dome 2 megapixel with WIFI, 1/3" inch Day/Night with IR illumination up to 30m. 2 Megapixel CMOS sensor, 2M(1920×1080)@1~25fps, H.265/H.264. Lens: 2.8mm viewing angle 100°, BLC / DWDR, 3D-NR: noise reduction technology, corridor mode. Built-in microphone and speaker. Built-in dual antenna 2.4G Wi-Fi (coverage up to 120m in open area). SD memory port Max 256GB, IP67 moisture resistant. Supports ONVIF (Profile S/Profile T); CGI; P2P standard. Model: HDW1230DT-STW, 2.8mm.
Brief technical characteristics:
• 2 megapixel Day/Night dome IP camera with IR illumination and integrated WIFI network.
• 1/3" inch 2 Megapixel CMOS sensor.
• Effective pixels: 1920(H) x 1080(V).
• 2.8 mm fixed lens (lens viewing angle about 100°).
• Video compression H.264B; H.264; H.264H; H.265, Smart H.265+; Smart H.264.
• Operating system LINUX.
• Scanning system: Progressive.
• Remote control and live monitoring via SMART PSS, DSS, DMSS.
• Free software for camera control (DSS/PSS/SMART PSS/Easy4IP), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc.
• Video resolution options: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720).
• Compression rate: main stream: 2MP(1920 × 1080)@(1~25fps), sub stream:(704 x 576)@(1~25 fps); (704 x 480)@(1~25 fps).
• Bit rate: H.264: 24Kbps ~ 4096Kbps, H.265: 9Kbps ~ 4096Kbps.
• Support for two streams simultaneously.
• D/N: switches from color to black and white at a certain light intensity - mechanical Day/Night function.
• Min. illumination: 0.025 Lux@F2.0 (Color, 30 IRE); 0.0025 Lux@F2.0 (B/W, 30 IRE); 0Lux/F2.0 (IR on).
• 1pc. IR LED.
• Illumination distance 30m.
• 3D-NR: noise reduction technology.
• S/N ratio > 56dB.
• Electronic shutter: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC / DWDR.
• Video format: PAL.
• Corridor mode.
• Integrated WIFI network (IEEE802.11b/g/n) 2.4-2.4835 GHz; 2.4G; wireless communication distance up to 120m.
• 10/100 Mb/s network port (Ethernet RJ-45).
• Protocols: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; ONVIF (Profile S/Profile T); CGI; P2P.
• Browsers: IE, Chrome, Firefox.
• Remote control: Monitoring, EPTZ zoom, system settings, File download, Viewing, software update.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user connection: 6 (total bandwidth
36M).
• Internal memory: SD memory port Max 256GB.
• Operating temperature: -30°C~+60°C, 95% RH.
• Waterproof IP67.
• Power supply: DC 12V.
• Power consumption: 1.9W, max. 6.1W.
• Dimensions: 109.9mm×102.2mm.
• Weight: 352g.
Compatible mounts:
• PFA109.
• PFA13G.
• PFB220C.
• PFA152-E.
