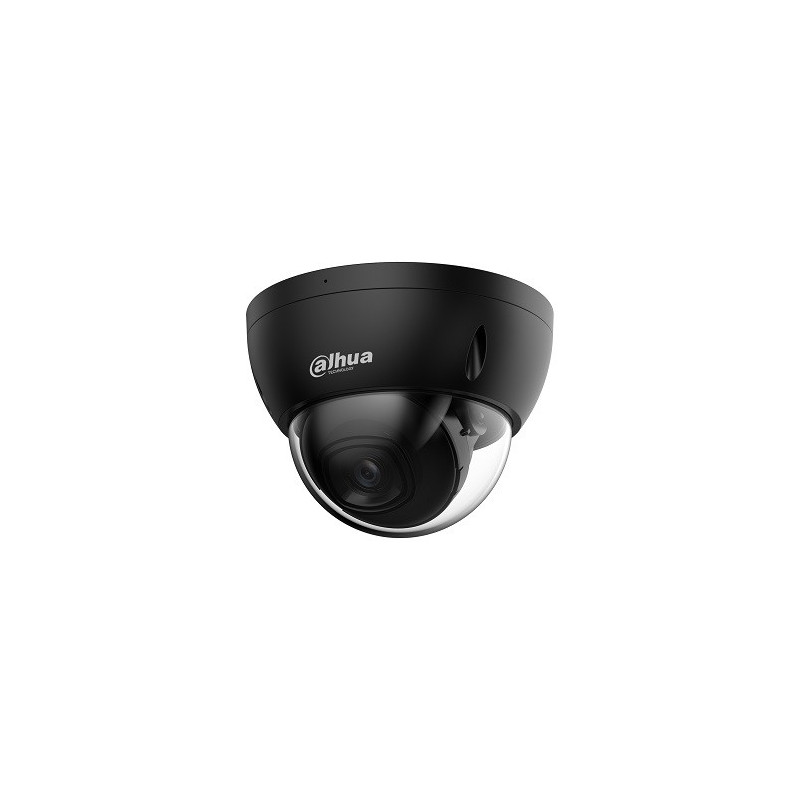

IP camera dome 5MP with IR up to 30m, 2.8mm 111°, WDR120dB, 3DNR, IP67, IK10, PoE, H.265

IP camera dome 5MP with IR up to 30m, 2.8mm 111°, WDR120dB, 3DNR, IP67, IK10, PoE, H.265

Short description:IP camera dome 5 megapixel with IR illumination up to 30m., Day/Night, 1/2.7' inch 5 MP CMOS sensor, 5M(2960 × 1668)@ 1~20fps, supports 4M(2688×1520) resolution 1~25fps. H.265+/H.265/H.264+/H.264, Lens: 2.8mm viewing angle 111°, BLC / HLC / WDR (120dB), 3D-NR noise reduction technology, corridor mode, SMD Plus, ROI, IVS, PoE, built-in microphone, SD memory port max. 256GB, IP67 moisture resistant, IK10 shock resistant, supports ONVIF(Profile S/Profile G/Profile T); CGI; P2P standard. Model: DH-IPC-HDBW2541E-S 2.8mm, color black.Brief technical characteristics:• 5 megapixel Day/Night dome IP camera with IR illumination. • IVS functions: line crossing, perimeter intrusion. • 1/2.7' inch 5MP CMOS sensor. • Effective pixels: 2960 (H) × 1668 (V). • 2.8mm fixed lens (lens viewing angle about 111°). • Video compression: H.265+; H.264+; H.265; H.264; H.264H; H.264B; MJPEG. • Operating system LINUX. • Audio compression: G.711a; G.711Mu; PCM; G.726. • Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox. • Free software for camera control (DSS, DMSS, Smart PSS Lite), video viewing and archiving, using a computer network or the Internet. • Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record images to a computer. • Free program for monitoring via mobile phone or handheld computer, suitable for iOS, Android phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc. • IP camera can be used with software from other companies. • Available video resolution options: 5M (2960 × 1668/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240). • Compression rate: main stream: 5M(2960 × 1668)@(1-20 fps) / 4M(2688 × 1520)@(1-25 fps), sub stream: (704 × 576)@(1-25 fps) / (704 × 480)@(1-25 fps). • Bit rate: H.265: 32kbps-8192 kbps; H.264: 12kbps ~ 8192kbps. • D/N: switches from color to black and white under certain light intensity - mechanical Day/Night function. • Min. illumination: 0.007 Lux@F1.6. • 3 pcs. IR-LEDs. • Illumination distance 30m. • 3D-NR: noise reduction technology. • S/N ratio > 56dB. • Scanning system: Progressive. • Electronic delay: Auto/Manual, 1/3 s-1/100000 s. • White balance: Auto/Manual, BLC / HLC / true WDR 120dB. • Privacy (image masking) zones: 4. • Video format: PAL. • Image rotation (Flip) 0°/90°/180°/270°. • 10/100 Mb/s network port (Ethernet RJ-45). • Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P, ONVIF(Profile S/Profile G/Profile T); CGI. • Alarm: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; disturbance; intrusion; sound detection; voltage detection; SMD; cybersecurity exception. • Smart search works together with NVR. • Unlimited number of users (possibility to grant different rights to each user). • Maximum simultaneous user login: 20 (total flow 64M). • Internal memory: SD memory port max. 256GB. • 3-axis mechanism for camera adjustment (Pan:0°~355°; Tilt:0°~65°; Rotation:0°~355°). • Recording: Recording: Dahua Cloud, FTP, SFTP or NAS servers. • Operating temperature: -40°C~+60°C, humidity: <95% RH. • Impact resistance IK10. • Moisture resistance IP67. • Power supply: DC12V, PoE (802.3af). • Consumption: 2.3W (12V DC), 2.9W (PoE); max. 5W (12V DC), 6.1W (PoE). • Dimensions: 81 mm × 109.9 mm. • Weight: 340 g. • PFA136. • PFB203W. • PFA152-E. • PFA200W. • PFA106. • PFB220C.
