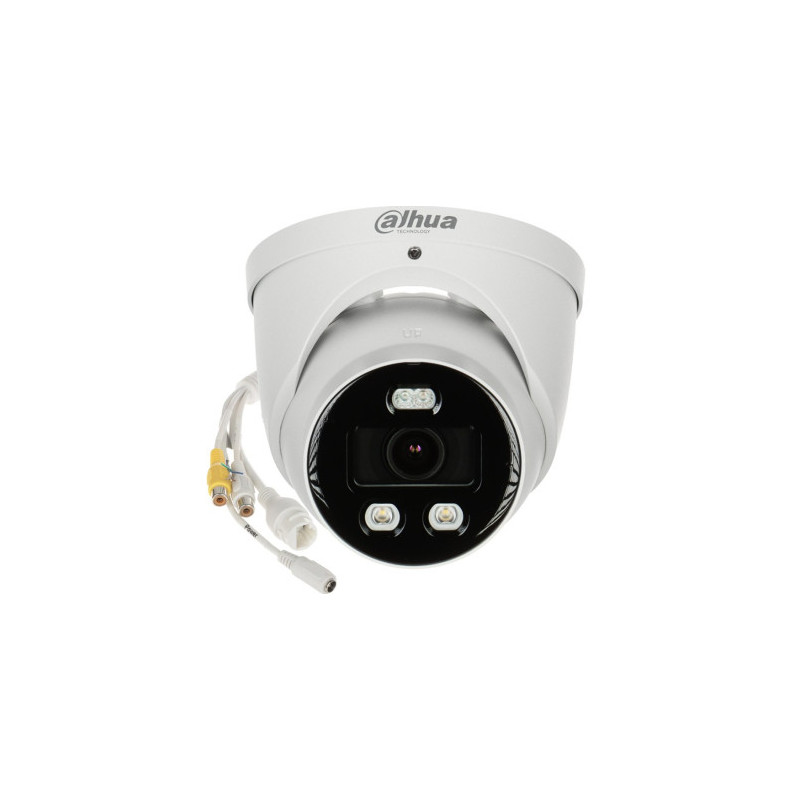

IP camera Dahua Dome IPC-HDW3849H-AS-PV-0280B-PRO (White, 8MP, 2.8mm 109°, IR LED 30m, IP67)
Product reference:
26-DAHIPCHDW3849HASPV28
- Type: IP camera
- Model: IPC-HDW3849H-AS-PV-0280B-PRO
- Brand: Dahua
- Series: WizColor
- Image sensor: 8 MP
- Lens: 2.8 mm (109°)
- Lighting: IR LED, up to 30 m
- Audio: Built-in microphone
- Image technologies: 120 dB WDR, 3D DNR, HLC, BLC
- Advanced features: Perimeter protection, SMD 4.0, defog
- PoE
- Memory: SD card up to 256 GB
- Resistance: IP67
IP camera Dahua Dome IPC-HDW3849H-AS-PV-0280B-PRO (White, 8MP, 2.8mm 109°, IR LED 30m, IP67)
Product reference:
26-DAHIPCHDW3849HASPV28
- Type: IP camera
- Model: IPC-HDW3849H-AS-PV-0280B-PRO
- Brand: Dahua
- Series: WizColor
- Image sensor: 8 MP
- Lens: 2.8 mm (109°)
- Lighting: IR LED, up to 30 m
- Audio: Built-in microphone
- Image technologies: 120 dB WDR, 3D DNR, HLC, BLC
- Advanced features: Perimeter protection, SMD 4.0, defog
- PoE
- Memory: SD card up to 256 GB
- Resistance: IP67
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Home
- Sensor 1/1.8" CMOS
- Max resolution 3840 (H) × 2160 (V)
- ROM 256MB
- RAM 2 G
- Scanning system Progressive
- Electronic shutter speed Auto/Manual 1/3 s-1/100,000 s
- Min. lighting 0.0008 Lux@F1.0 (Color, 30IRE), 0.0004 Lux@F1.0 (B/W, 30IRE), 0 lux (Illuminator on)
- S/N ratio > 56 dB
- Lighting distance Up to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
- Lighting control Auto; Manual
- Number of lights 2 (Multi-core (IR + warm) light)
- Changing the angle Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
- Lens type Fixed focal
- Lens installation M16
- FOV 2.8mm; 3.6mm
- Max aperture F1.0
- FOV 2.8 mm: H: 109°; W: 59°; D: 131°, 3.6 mm: H: 93°; V: 50°; D: 111°
- Aperture control Fixed
- Closest focus 2.8mm: 3.2m (10.50ft), 3.6mm: 4.4m (14.44ft)
- DORI Distance (2.8 mm) Detect: 82.0 m (269.03 ft), Observe: 32.8 m (107.64 ft), Recognize: 16.4 m (53.81 ft), Identify: 8.2 m (26.90 ft)
- DORI Distance (3.6 mm) Detect: 100.0 m (328.08 ft), Observe: 40.0 m (131.23 ft), Recognize: 20.0 m (65.62 ft), Identify: 10.0 m (32.81 ft)
- IVS (Perimeter Security) Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)
- SMD SMD 4.0
- AcuPick Deep learning-based target matching and search for people and motor vehicles
- AI SSA Deep learning algorithms adjust image parameters based on conditions
- Smart search Works with Smart NVR for refined intelligent search and event extraction
- Image compression H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
- Smart Codec Smart H.265+; Smart H.264+
- AI coding AI H.265 (≥25% compression rate), AI H.264 (≥25% compression rate)
- Video frame rate Main stream: 3840 × 2160@(1-25/30 fps), Sub stream: 1920 × 1080@(1-25/30 fps), Third stream: 1920 × 1080@(1-25/30 fps)
- Flow capacity 3 streams
- Resolution 8M (3840 × 2160), 6M (3200 × 1800), 5M (3072 × 1728), 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Bit rate control CBR/VBR/ABR
- Video bit rate H.264: 3 kbps-16384 kbps, H.265: 3 kbps-16384 kbps
- Day/night mode Auto(ICR)/Color/B/W
- BLC Yes
- HLC Yes
- WDR 120dB
- Scene Self-adaptation (SSA) Yes
- White balance Car; Natural; Street lamps; Outdoors; Manual; Regional custom
- Gain control Car
- Noise reduction 3D NR
- Motion detection OFF/ON (4 areas, rectangular)
- Area of interest Yes (4 areas)
- Smart lighting Yes
- Smart Dual Light Yes
- Fog removal Yes
- Image rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
- Mirror Yes
- Privacy masking Area 8
- LDC Yes
- Built-in microphone Yes, dual Mic
- Built-in speaker Yes, built-in speaker
- Audio compression PCM; G.711a; G.711Mu; G.726; G.723
- Dangerous event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
- Network port RJ-45 (10/100 Base-T)
- SDKs and APIs Yes
- Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
- Compatibility ONVIF (Profile S; Profile G; Profile T); CGI
- User/port 20 (Total bandwidth: 64 M)
- Storage FTP; SFTP; Micro SD card (max. 512 GB); NAS
- Browser IE11; Chrome; Firefox
- Management software Smart PSS Lite; DSS; DMSS; DoLynk Care
- Mobile app iOS; Android
- Cybersecurity Video encryption; Firmware encryption; Configuration encryption; digest; WSSE; Account lockout; Security logs; IP/MAC filtering; X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
- Certificates CE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
- Audio input 1 channel (RCA port)
- Audio output 1 channel (RCA port)
- Alarm input 1 channel in: wet contact, 5 mA 3-5 VDC
- Alarm output 1 channel out: wet contact, 300 mA 12 VDC
- Power supply 12VDC; PoE
- Dual Power Backup Supports power redundancy when using both adapter and PoE, but will not restart when one is disconnected
- Energy consumption Basic: 4.1 W (12 VDC); 6 W (PoE), Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10W (PoE)
- Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
- Working conditions (humidity) ≤95%
- Protection IP67
- Housing materials Metal
- Product size Φ122.0 mm × 116.1 mm (4.80" × Φ4.57")
- Weight without packaging 0.8 kg (1.76 lb)
- Weight with packaging 1.0 kg (2.20 lb)
| Manufacturer | Dahua |
| Manufacturer code | DAHIPCHDW3849HASPV28 |
| Weight | 1kg |
