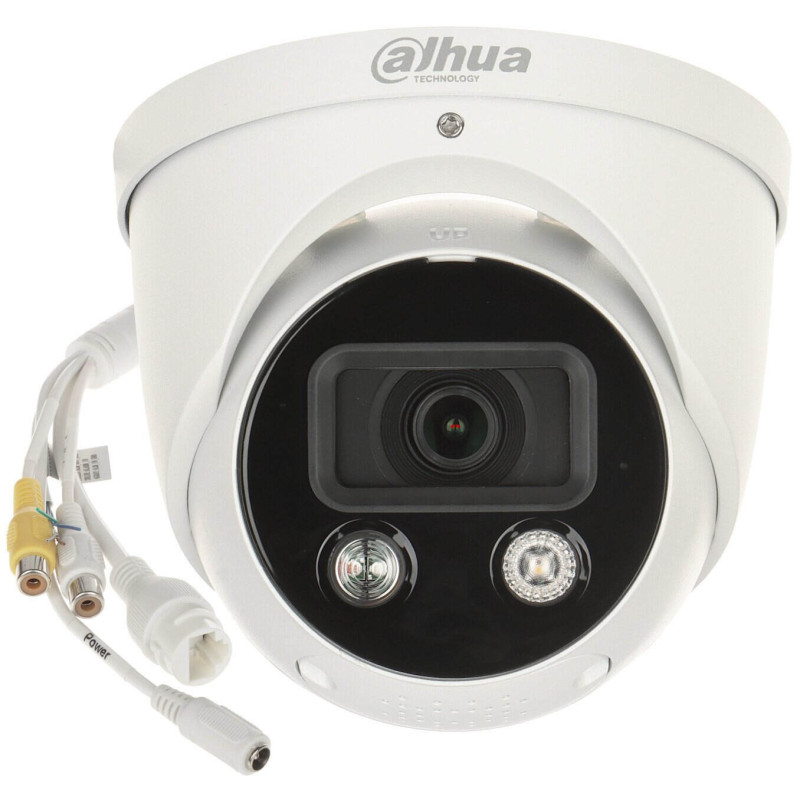

IP camera Dahua Dome IPC-HDW3549H-AS-PV 2.8mm (White, 5MP, 97°, IR LED 50m, IP67)
Product reference: 26-6939554972157
  • Type: IP camera
  • Model: IPC-HDW3549H-AS-PV
  • Brand: Dahua
  • Series: WizSense
  • Body type: Eyeball
  • Image sensor: 5 MP
  • Lens: 2.8 mm (97°)
  • Lighting: White light LED, IR LED up to 50 m
  • Sound: Built-in microphone, speaker and siren
  • Image technologies: WDR, 3D NR, HLC, BLC
  • Advanced features: SMD 4.0, defog
  • Connection: PoE
  • Memory: SD card up to 256 GB
  • Resistance: IP67
IP camera Dahua Dome IPC-HDW3549H-AS-PV 2.8mm (White, 5MP, 97°, IR LED 50m, IP67)

IP camera Dahua Dome IPC-HDW3549H-AS-PV 2.8mm (White, 5MP, 97°, IR LED 50m, IP67)

Product reference: 26-6939554972157
  • Type: IP camera
  • Model: IPC-HDW3549H-AS-PV
  • Brand: Dahua
  • Series: WizSense
  • Body type: Eyeball
  • Image sensor: 5 MP
  • Lens: 2.8 mm (97°)
  • Lighting: White light LED, IR LED up to 50 m
  • Sound: Built-in microphone, speaker and siren
  • Image technologies: WDR, 3D NR, HLC, BLC
  • Advanced features: SMD 4.0, defog
  • Connection: PoE
  • Memory: SD card up to 256 GB
  • Resistance: IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
119,73 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Sensor 1/2.7" CMOS
  • Max resolution 2960 (H) × 1688 (V)
  • ROM 256MB
  • RAM 1 G
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 s-1/100,000 s
  • Min. lighting 0.003 lux@F1.0 (Color, 30 IRE), 0.0003 lux@F1.0 (B/W, 30 IRE), 0 lux (Illuminator on)
  • S/N ratio > 56 dB
  • Lighting distance Up to 30 m (98.43 ft) (IR), Up to 30 m (98.43 ft) (Warm light)
  • Lighting control Auto; Manual
  • Number of lights 1 (AND LED); 1 (Warm light)
  • Changing the angle Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
  • Lens type Fixed focal
  • Lens installation M12
  • FOV 2.8mm; 3.6mm
  • Max aperture F1.0
  • FOV 2.8 mm: H: 97°; V: 70°; D: 128°, 3.6 mm: H: 78°; W: 58°; D: 102°
  • Aperture control Fixed
  • Closest focus 2.8mm: 1.5m (4.92ft), 3.6mm: 2.2m (7.22ft)
  • DORI Distance (2.8 mm) Detect: 66.0 m (216.54 ft), Observe: 26.4 m (86.61 ft), Recognize: 13.2 m (43.31 ft), Identify: 6.6 m (21.65 ft)
  • DORI Distance (3.6 mm) Detect: 78.0 m (255.91 ft), Observe: 22.2 m (72.83 ft), Recognize: 15.6 m (51.18 ft), Identify: 7.8 m (25.59 ft)
  • IVS (Perimeter Security) Intrusion, tripwire (supports classification and accurate detection of vehicles and humans)
  • SMD SMD 4.0
  • AcuPick Deep learning-based target matching and search for people and motor vehicles
  • AI SSA Deep learning-based image parameter adjustment
  • Smart search Works with Smart NVR for refined intelligent search and event extraction
  • Image compression H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
  • Smart Codec Smart H.265+; Smart H.264+
  • AI coding AI H.265 (Compression rate ≥25%), AI H.264 (Compression rate ≥25%)
  • Video frame rate Main stream: 2880 × 1620/2960 × 1668@(1-20 fps), 2688 × 1520@(1-30 fps), Sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps), Third stream: 1920 × 1080@(1-25/30 fps)
  • Flow capacity 3 streams
  • Resolution 5M (2880 × 1620/2960 × 1668), 4M (2688 × 1520/2560 × 1440), 3M (2304 × 1296/2048 × 1536), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
  • Bit rate control CBR/VBR/ABR
  • Video bit rate H.264: 3 kbps-16384 kbps, H.265: 3 kbps-16384 kbps
  • Day/night mode Auto(ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120dB
  • Scene Self-adaptation (SSA) Yes
  • White balance Car; Natural; Street lamps; Outdoors; Manual; Regional custom
  • Gain control Car
  • Noise reduction 3D NR
  • Motion detection OFF/ON (4 areas, rectangular)
  • Area of interest Yes (4 areas)
  • Smart lighting Yes
  • Fog removal Yes
  • Image rotation 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror Yes
  • Privacy masking Area 4
  • LDC Yes
  • Built-in microphone Yes
  • Built-in speaker Yes
  • Audio compression PCM; G.711a; G.711Mu; G.726; G.723
  • Dangerous event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
  • Network port RJ-45 (10/100 Base-T)
  • SDKs and APIs Yes
  • Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
  • Compatibility ONVIF (Profile S; Profile G; Profile T); CGI
  • User/port 20 (Total bandwidth: 64 M)
  • Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
  • Browser IE 9/11; Chrome; Firefox
  • Management software Smart PSS Lite; DSS; DMSS
  • Mobile app iOS; Android
  • Cybersecurity Video encryption; Firmware encryption; Configuration encryption; digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; Syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
  • Certificates CE-LVD: EN 62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • Audio input 1 channel (RCA port)
  • Audio output 1 channel (RCA port)
  • Alarm input 1 channel in: wet contact, 5 mA 3-5 VDC
  • Alarm output 1 channel out: wet contact, 300 mA 12 VDC
  • Power supply 12VDC; PoE
  • Energy consumption Basic: 3.7 W (12 VDC); 4.8 W (PoE), Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE)
  • Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
  • Working conditions (humidity) ≤95%
  • Protection IP67
  • Housing materials Metal
  • Product size Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
  • Weight without packaging 0.75 kg (1.65 lb)
  • Weight with packaging 0.92 kg (2.03 lb)

ManufacturerDahua
Manufacturer codeTVKIPCHDW3549HASPVS5
Weight0.775 kg
