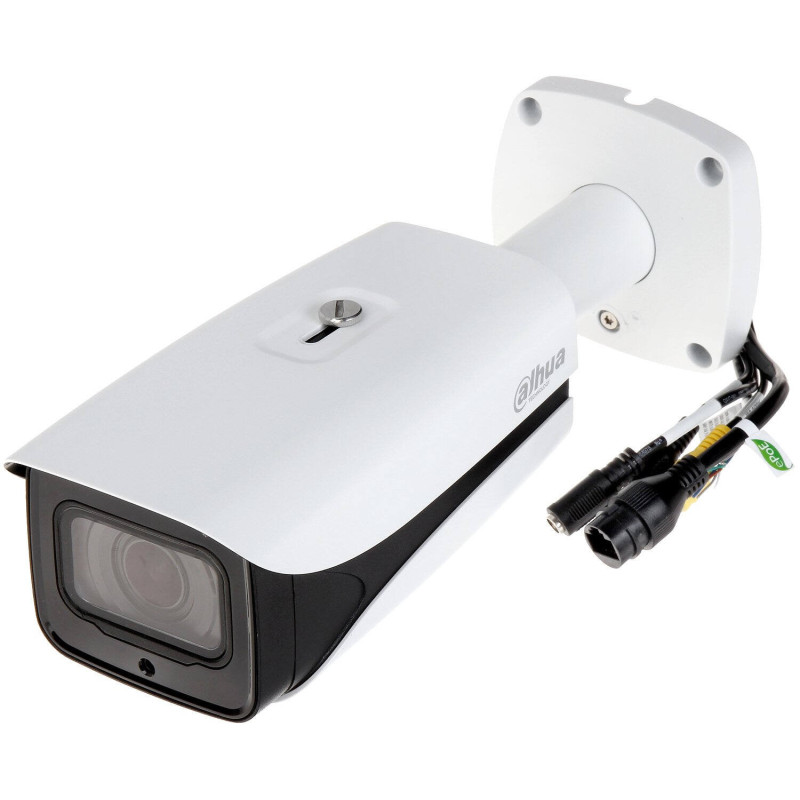

IP camera Dahua Bullet IPC-HFW5541E-ASE-0280B-S3 (5MP, 2.8mm, WizMind, IR 50m, ePoE, IP67)
Product reference: 26-6923172585172
  • Category: IP camera
  • Brand: Dahua
  • Model: IPC-HFW5541E-ASE-0280B-S3
  • Type: Bullet
  • Technology: WizMind
  • Resolution: 5 MP
  • Lens: 2.8 mm (111°)
  • Connection: ePoE
  • Alarm interfaces: Alarm in/out
  • Audio interfaces: RCA in/out
  • IR illumination: up to 50 m
  • Image enhancement: WDR 120 dB, 3D NR, HLC, BLC
  • Protection class: IP67
IP camera Dahua Bullet IPC-HFW5541E-ASE-0280B-S3 (5MP, 2.8mm, WizMind, IR 50m, ePoE, IP67)

IP camera Dahua Bullet IPC-HFW5541E-ASE-0280B-S3 (5MP, 2.8mm, WizMind, IR 50m, ePoE, IP67)

Product reference: 26-6923172585172
  • Category: IP camera
  • Brand: Dahua
  • Model: IPC-HFW5541E-ASE-0280B-S3
  • Type: Bullet
  • Technology: WizMind
  • Resolution: 5 MP
  • Lens: 2.8 mm (111°)
  • Connection: ePoE
  • Alarm interfaces: Alarm in/out
  • Audio interfaces: RCA in/out
  • IR illumination: up to 50 m
  • Image enhancement: WDR 120 dB, 3D NR, HLC, BLC
  • Protection class: IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
127,43 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Image sensor 1/2.7" CMOS
  • Highest resolution 2592 (H) × 1944 (V)
  • ROM 128MB
  • RAM 512MB
  • Scanning system Progressive
  • Electronic shutter speed Auto/Manual 1/3 s-1/100,000 s
  • Minimal lighting 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)
  • Signal-to-noise ratio > 56 dB
  • Lighting distance 50 m (164.04 ft) (IR)
  • Lighting control Auto; manual
  • Number of lights 2 (AND LED)
  • Pan/Tilt/Rotation Range Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°
  • Lens type Fixed focal
  • Lens mount M12
  • Focal Length Options 2.8mm, 3.6mm, 6mm
  • Maximum aperture F1.6
  • Field of view 2.8 mm: H: 102°, W: 71°, D: 131°; 3.6 mm: H: 84°, V: 58°, D: 110°; 6mm: H: 51°, W: 37°, D: 63°
  • Aperture control Fixed
  • Close focus distance 2.8 mm: 0.9 m; 3.6 mm: 1.6 m; 6mm: 3.1m
  • DORI Distance (2.8 mm) Detect: 56 m, Observe: 22.4 m, Recognize: 11.2 m, Identify: 5.6 m
  • DORI distance (3.6 mm) Detect: 80 m, Observe: 32 m, Recognize: 16 m, Identify: 8 m
  • DORI Distance (6 mm) Detect: 120 m, Observe: 48 m, Recognize: 24 m, Identify: 12 m
  • Smart Event - IVS Abandoned object; missing object
  • Heat map Yes
  • IVS (Perimeter Security) Intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection
  • SMD 3.0 Less false alarm, longer detection distance
  • Facial recognition Detection, tracking, snapshot, enhancement, exposure, filters, optimization
  • People counting Entry/exit/pass count, area rules, stay time, queue management
  • Smart search Yes, via Smart NVR
  • Image compression H.265, H.264, H.264H, H.264B, MJPEG (sub stream only)
  • Smart Codec Smart H.265+, Smart H.264+
  • AI coding AI H.265, AI H.264
  • Video frame rate Main: 2592×1944@1-20 fps, 2688×1520@1-25/30 fps, 1080p@1-50/60 fps; Sub: D1@1-25/30 fps; Third: 1080p@1-25/30 fps
  • Flow capabilities 3 streams
  • Supported Resolutions 2592×1944, 2688×1520, 2304×1296, 1080p, 1.3M, 720p, D1, VGA, CIF
  • Bit rate control CBR/VBR
  • Video bit rate H.264/H.265: 3 kbps-20480 kbps
  • Day/night mode Auto(ICR)/Color/B/W
  • BLC Yes
  • HLC Yes
  • WDR 120dB
  • SSA Yes
  • White balance Auto, natural, street lamp, outdoor, manual, regional custom
  • Gain control Auto; manual
  • Noise reduction 3D NR
  • Motion detection ON/OFF (4 areas)
  • Image area of interest Yes (4 areas)
  • Fog removal Yes
  • Image rotation 0°/90°/180°/270° (90°/270° for ≤ 4MP)
  • Mirror Yes
  • Privacy masking Area 8
  • Dangerous events SD errors, network issues, intrusion, motion, IVS, SMD, people counting, video tampering, etc.
  • Network port RJ-45 (10/100 Base-T)
  • Wi-Fi Not available
  • SDK and API Support Yes
  • Cybersecurity Video/firmware/config encryption, WSSE, logs, account lockout, X.509 certs, syslog, HTTPS, 802.1x, trusted boot/execution/upgrade
  • Network protocols IPv4/IPv6, HTTP/S, TCP/UDP, RTP/RTSP/RTMP, FTP/SFTP, DHCP/DNS/DDNS, NTP, UPnP, ICMP, SNMP, etc.
  • Compatibility ONVIF (S/G/T), CGI, Milestone, P2P
  • Max Users 20 (80 Mbps total bandwidth)
  • Storage options FTP, SFTP, microSD (up to 256 GB), NAS
  • Browser support IE 8+, Chrome, Firefox
  • Management software Smart PSS, DSS, DMSS
  • Mobile app iOS; Android
  • Certificates CE-LVD: EN60950-1; CE-EMC 2014/30/EU; FCC Part 15; UL60950-1; CAN/CSA C22.2 No.60950-1-07
  • Power source 12 VDC, PoE (802.3af), ePoE
  • Energy consumption Basic: 2.4 W (12 VDC), 3 W (PoE); Max: 5.7 W (12 VDC), 6.8 W (PoE)
  • Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Working humidity ≤ 95%
  • Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Protection class IP67
  • Housing Metal + plastic
  • Product dimensions 179.9 mm × 70 mm × 70 mm (7.08" × 2.76" × 2.76")
  • Net weight 470g (1.04lb)
  • Total weight 590g (1.30lb)

ManufacturerDahua
Manufacturer codeDAHIPCHFW5541EASE28
Weight0.82 kg
