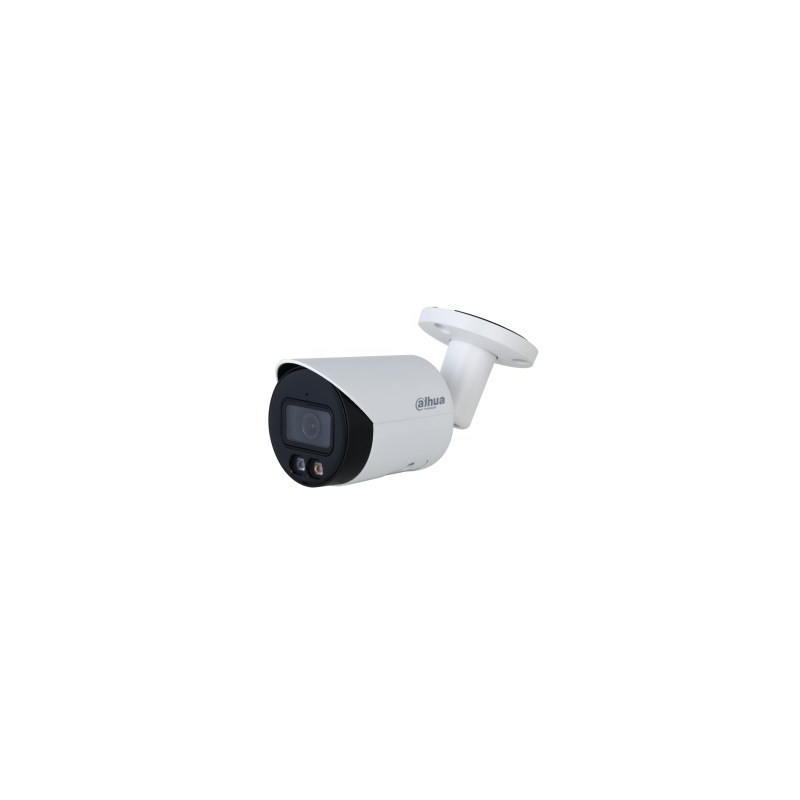

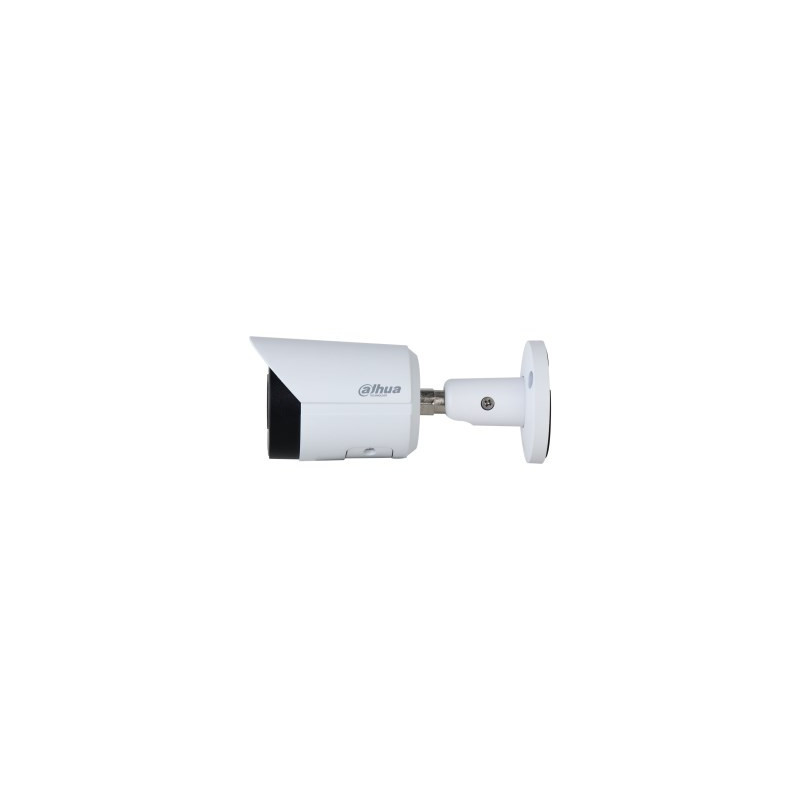

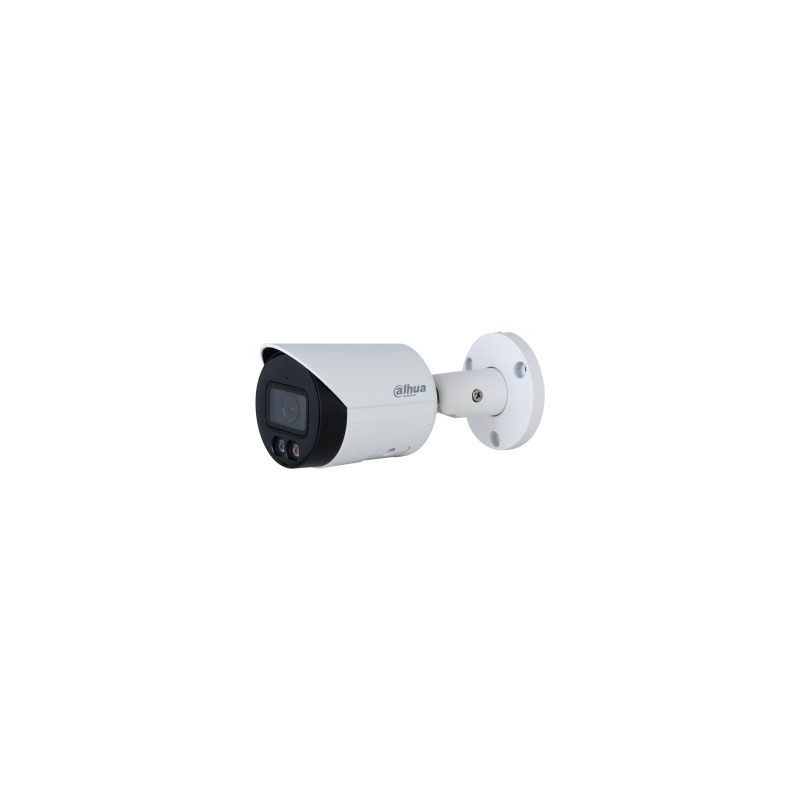

2 MP outdoor IP camera with a fixed 2.8 mm lens, 120 dB WDR and 1080p resolution at up to 30 frames per second. Supports PoE or 12 V DC power supply, has IR and warm light illumination up to 30 m, built-in microphone, microSD card up to 256 GB and IP67 protection.
2 MP outdoor IP camera with a fixed 2.8 mm lens, 120 dB WDR and 1080p resolution at up to 30 frames per second. Supports PoE or 12 V DC power supply, has IR and warm light illumination up to 30 m, built-in microphone, microSD card up to 256 GB and IP67 protection.
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
2 MP outdoor IP camera with fixed 2.8 mm lens, 120 dB WDR and 1080p video at up to 30 frames per second. Supports PoE or 12 VDC power supply, IR and warm light illumination up to 30 m, has a built-in microphone, microSD card up to 256 GB and IP67 protection.
Product information | |
|---|---|
| Product type | Outdoor IP security camera |
| Brand | Dahua |
| Model | HFW2249S-S-IL |
| Camera shape | Cylindrical chamber |
| Image sensor | 1/2.8 inch CMOS |
| Image scanning system | Progressive scan |
Optics and image characteristics | |
| Lens type | Fixed focal length lens with M12 connector |
| Maximum aperture | F1.6 |
| Field of view | Horizontal: 107°; Vertical: 56°; Diagonal: 127° |
| Minimum illumination | 0.002 lux in color mode; 0.0002 lux in monochrome mode; 0 lux with backlight on |
| Signal-to-noise ratio | Greater than 56 dB |
| Day and night mode | Automatic ICR, color or black and white mode |
| Backlight compensation | BLC and HLC |
| Noise reduction | 3D noise reduction |
| Shutter speed | Automatic or manual, from 1/3 s to 1/100,000 s |
| Image settings | Automatic or manual gain, multiple white balance modes, image rotation, mirror image, and privacy masks |
Image and sound | |
| Highest resolution | 1,920 × 1,080 pixels |
| Number of streams | Two streams |
| Image compression | H.264, H.264H, H.264B, H.265 and MJPEG in additional stream |
| Smart Codec | Smart H.265+ and Smart H.264+ |
| Speed control | CBR or VBR |
| Video data stream | H.264: 32-6 144 kbps; H.265: 12-6 144 kbps |
| Built-in microphone | Yes |
| Audio compression | G.711a, G.711Mu, PCM and G.726 |
Security and connectivity | |
| Perimeter security | Intrusion and virtual line crossing detection by classifying people and vehicles |
| Motion detection | Configurable in four rectangular areas |
| Network port | RJ-45 10/100 Base-T |
| Network protocols | IPv4, IPv6, HTTP, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP and IGMP |
| Compatibility | ONVIF Profile S and Profile T, CGI, P2P and Milestone |
| Supported users/hosts | Up to 6; total bandwidth - 36 Mb/s |
| Local and network storage | FTP, SFTP and microSD card support up to 256 GB |
| Management software | DSS and DMSS; mobile support for iOS and Android devices |
| Cybersecurity features | HTTPS, account lockout, security logs, video encryption, IP/MAC filtering, 802.1X, secure boot, trusted updates, and X.509 certificate support |
Power supply and construction | |
| Power source | 12 VDC or PoE per IEEE 802.3af |
| Energy consumption | Base: 1.6 W using 12 VDC or 1.9 W via PoE; Peak: 3.8 W using 12 VDC or 4.4 W via PoE |
| Operating temperature | From −40°C to +60°C |
| Operating humidity | Up to 95% |
| Environmental protection class | IP67 |
| Housing material | Metal inner body and cover with plastic decorative ring |
| Product dimensions | 99.1 × 121.9 mm |
| Net weight | 0.46 kg |
Safety warning | |
| Warning | For security monitoring purposes only. Installation and electrical connections must be performed by a qualified person. Use only a compatible 12 VDC power supply or IEEE 802.3af PoE equipment and ensure that all connections are properly sealed against moisture. Do not open, modify, or operate the camera in environmental conditions exceeding the specified limits. |
| Height | 75 mm |
| Length | 166 mm |
| Weight | 650g |
| Width | 75 mm |
