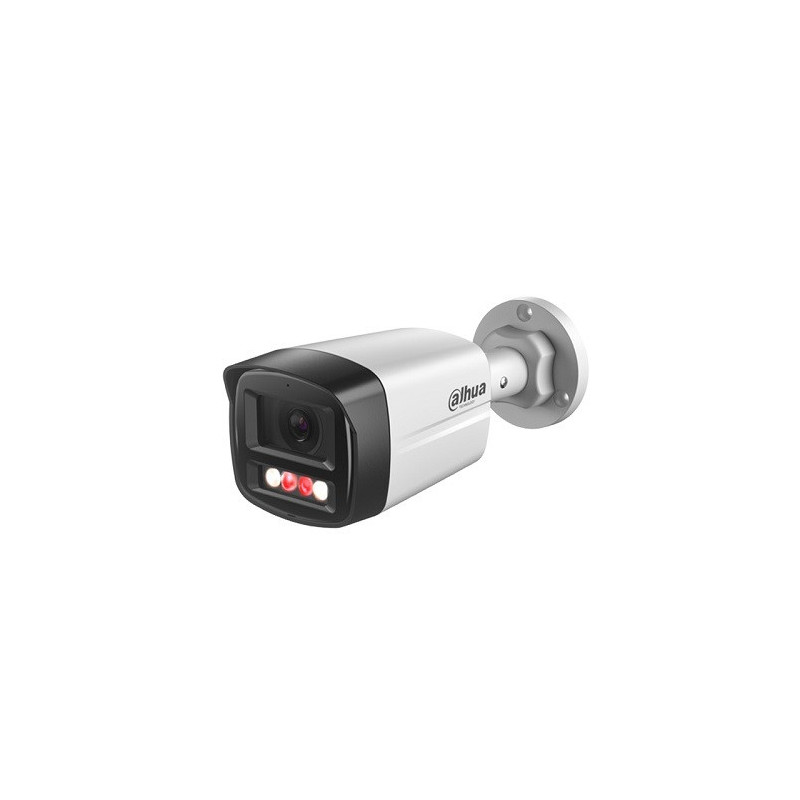

IP cam. cylinder 4MP, 1 / 2.9' 3.6mm. 78° F1.6, 25fps, IR+LED 30m, WDR, IVS, IP67, MIC

Short description:

• IP camera cylindrical 4MP with integrated microphone, 1/2.9" inch,


• FULL-COLOR CMOS sensor, intelligent dual illumination IR illumination up to 30m,


• LED illumination up to 30m, 4MP(2560x1440) @25fps,


• fixed lens: 3.6mm F1.6 viewing angle 78°, H.265+/ H.265/ H.264, BLC / HLC / HDR / WDR 120dB, ROI, IVS; SMD; 3D NR: noise reduction technology,


• PoE, IP67 moisture resistant suitable for outdoor and indoor conditions, 3-axis adjustment, PoE, supports ONVIF (Profile S/Profile T/Profile G); CGI; P2P standard, model: DH-IPC-HFW1439TL1-A-IL, 3.6mm.

Brief technical characteristics:
• 4MP FULL-COLOR cylindrical IP camera with dual illumination (IR+warm LED) and integrated microphone.
• IVS functions: line crossing, perimeter intrusion.
• 1/2.9" inch 4MP FULL-COLOR CMOS sensor.
• 3.6 mm fixed lens F1.6 (lens viewing angle approx. 78°).
• Integrated microphone.
• Audio compression: G.711a; G.711Mu; G.726; PCM.
• Video compression H.265; H.264; H.264H; H.264B; MJPEG; Smart H.265+/ Smart H.264+.
• LINUX operating system.
• Scanning system: Progressive.
• IR illumination up to 30m, LED illumination up to 30m.
• 2 pcs. IR + 2 pcs. warm light LEDs.
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS, DMSS, Smart PSS Lite), video viewing and archiving using a computer network or the Internet.
• Free program that allows the user to monitor and view camera recordings from different objects, the program allows you to save the image to a computer.
• Free application for monitoring via mobile phone or handheld computer, suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with third-party software.
• Effective pixel count: 2560 (H) x 1440 (V).
• Available video resolution options: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240).
• Compression rate: main stream: 4M(2560 × 1440) @1~25 fps; sub stream: (704 × 576)@1~25 fps; (704 × 480)@1~25 fps.
• Bit rate: H.264: 32 kbps-4096 kbps H.265: 12 kbps-4096 kbps.
• Min. illumination: 0.006 Lux@F1.6.
• 3D NR: Noise reduction technology.
• Image rotation 0°/180°.
• ROI function.
• S/N ratio > 56dB.
• Electronic Shutter: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC/HLC/HDR/WDR 120dB.
• Video format: PAL.
• 10/100 Mb/s network socket (Ethernet RJ-45).
• Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; ONVIF (Profile S/Profile T/Profile G); CGI.
• Recording: to FTP servers.
• Alarm: Motion detection; IP conflict; network disconnection; unauthorized access; camera disconnection; video loss; audio detection; SMD (human detection); cybersecurity exception.
• People Detection: Supports people detection and classification.
• Smart search works in conjunction with NVR.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user connections: 6 (total traffic 24M).
• Privacy zones: 4.
• Operating temperature: -40°C~+60°C, <95% RH.
• 3-axis mechanism for camera adjustment (Pan:0°~360°; Tilt:0°~90°; Rotation:0°~360°).
• IP67 waterproof, suitable for outdoor and indoor use.
• Power supply: DC 12V, PoE (802.3af).
• Consumption: 2.0W (12V DC), 2.9W (PoE); max. 6.4W (12V DC), 7.7W (PoE).
• Dimensions: 197.9 mm x 80.2 mm x 76.2 mm.
• Weight: 310 g.

Compatible mounts:

• PFA134.
• PFA130-E.
• PFA152-E.
