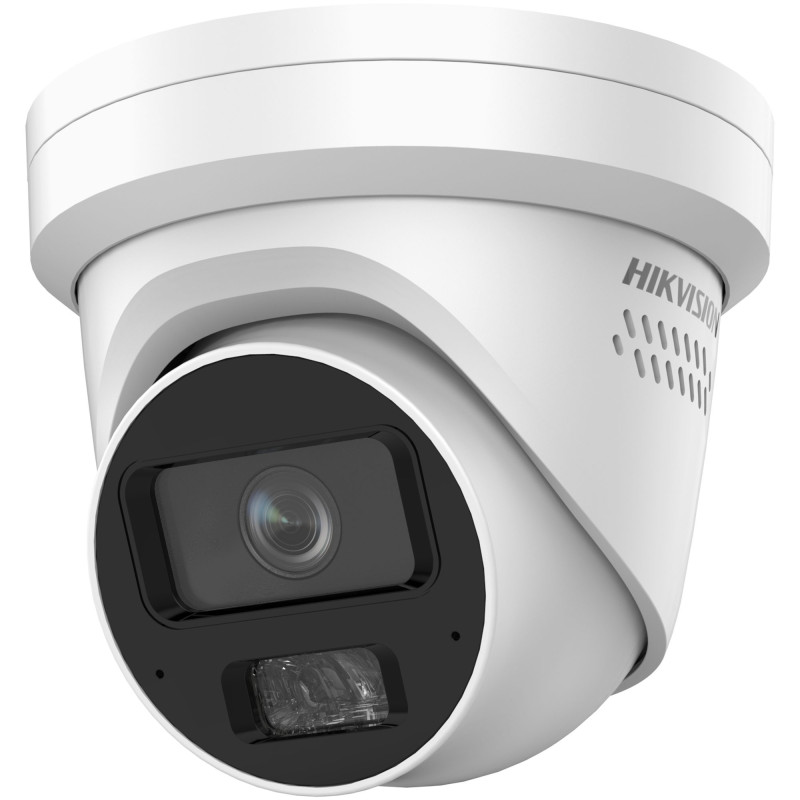

Hikvision Turret iDS-2CD5347G2 / V-XS F2.8 (white, 4MP, Hybrid Light 40m, Guanlan AI, for perimeter protection)
Product reference: 26-6936422176662
  • Image resolution: 4 MP
  • Technology: Darkfighter 2.0 (Color:0.0015Lux/F1.0BW:0.0001Lux/F1.0)
  • Image compression H.265+
  • VCA - perimeter protection (line crossing, intrusion, exit from the region)
  • Hybrid night vision 40 m (IR + white light)
  • Built-in dual microphone + speaker
  • Artificial Intelligence Guanlan reduces false alarms by up to 90%
  • The AI Encoding feature reduces the size of recordings by up to 50% while maintaining video quality.
  • EIS - image stabilization function to eliminate camera vibrations and shake
  • Protection class: IP67
  • Suitable base: DS-2280ZJ-WA140
Hikvision Turret iDS-2CD5347G2 / V-XS F2.8 (white, 4MP, Hybrid Light 40m, Guanlan AI, for perimeter protection)

Hikvision Turret iDS-2CD5347G2 / V-XS F2.8 (white, 4MP, Hybrid Light 40m, Guanlan AI, for perimeter protection)

Product reference: 26-6936422176662
  • Image resolution: 4 MP
  • Technology: Darkfighter 2.0 (Color:0.0015Lux/F1.0BW:0.0001Lux/F1.0)
  • Image compression H.265+
  • VCA - perimeter protection (line crossing, intrusion, exit from the region)
  • Hybrid night vision 40 m (IR + white light)
  • Built-in dual microphone + speaker
  • Artificial Intelligence Guanlan reduces false alarms by up to 90%
  • The AI Encoding feature reduces the size of recordings by up to 50% while maintaining video quality.
  • EIS - image stabilization function to eliminate camera vibrations and shake
  • Protection class: IP67
  • Suitable base: DS-2280ZJ-WA140
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
285,18 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015
  • Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
  • Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
  • Transport Certification IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
  • Sound
  • Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8) to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio sampling frequency 8 kHz/16 kHz/32 kHz/48 kHz
  • Audio type Mono sound
  • Removing extraneous sounds Yes
  • Camera
  • Changing the angle Pan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°
  • DayNight IR cut filter,Blue glass module (less ghost phenomenon)
  • Image sensor 1/1.8" Progressive Scan CMOS
  • Highest resolution 2688 × 1520
  • Minimal lighting B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter speed 1 s to 1/100,000 s
  • DOROUS
  • DOROUS 2.8 mm: D (Detect) : 61.5 m, O (Observe) : 24.4 m, R (Recognize): 12.73 m, I(Identify): 6.2 m4 mm: D (Detect) : 72.1 m, O (Observe) : 28.6 m, R (Recognize): 14.4 m, I(Identify): 7.2 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
  • Smart features
  • AcuSeek Support search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.
  • Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection
  • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range: up to 40 m (nighttime)
  • Features
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart), alarm input and output, video quality diagnosis
  • Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
  • Smart features Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection, loitering detection, people gathering detection, fast moving detection, parking detection
  • General information
  • Dimensions Ø138.63 mm × 123.42 mm (Ø5.46" × 4.86")
  • Main functions Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
  • Integrated Connector Panel No
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Material Aluminum alloy body
  • Package size 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 6.0")
  • Power supply 12 VDC ± 20%, 0.93 A, max. 11.2 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.25 A to 0.19 A, max. 12.7 W
  • Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Weight Approx. 820 g (1.81 lb.)
  • Weight with packaging Approx. 1095 g (2.42 lb.)
  • Lighting
  • IR wavelength 850 nm
  • Smart additional lighting Yes
  • Additional lighting range Up to 40 m
  • Additional lighting type Hybrid (IR and White Light)
  • Photo
  • Day/night switch Day, Night, Auto, Schedule, Alarm Trigger
  • Photo beautification BLC,HLC,3D DNA, Defog, Distortion Correction
  • Photo parameters converter Yes
  • Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Image stabilization EIS
  • Photo overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privacy mask 8 programmable polygon privacy masks
  • Wide Dynamic Range (WDR) 140 dB
  • Interface
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Sound 1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Built-in microphone 2 built-in microphones
  • Built-in speaker 1 built-in speaker
  • Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Output power 12 VDC, max. 100 mAExternal extension cord less than 10 meters.
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reboot button Yes
  • Lens
  • Aperture F1.0
  • Focal Length FOV 2.8 mm, horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138°4 mm, horizontal FOV 95°, vertical FOV 48°, diagonal FOV 117°
  • Iris type Fixed
  • Lens type Fixed focal lens, 2.8 and 4 mm optional
  • Network
  • API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • Customer iVMS-4200,Hik-Connect
  • Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • Safety Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3,AES128/256
  • Live video viewing Up to 20 channels
  • User/port Up to 32 users3 user levels: administrator, operator, and user
  • Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • AI Encoding Yes
  • Bit rate control CBR,VBR
  • Fourth stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • H.264 type Baseline Profile, Main Profile, High Profile
  • H.265 type Main Profile
  • Main stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI) 4 fixed regions for each stream
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Secondary flow 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video bit rate 32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG

ManufacturerHikvision
Manufacturer codeKIP2CD5347G2VXSF28
Weight0.83 kg
