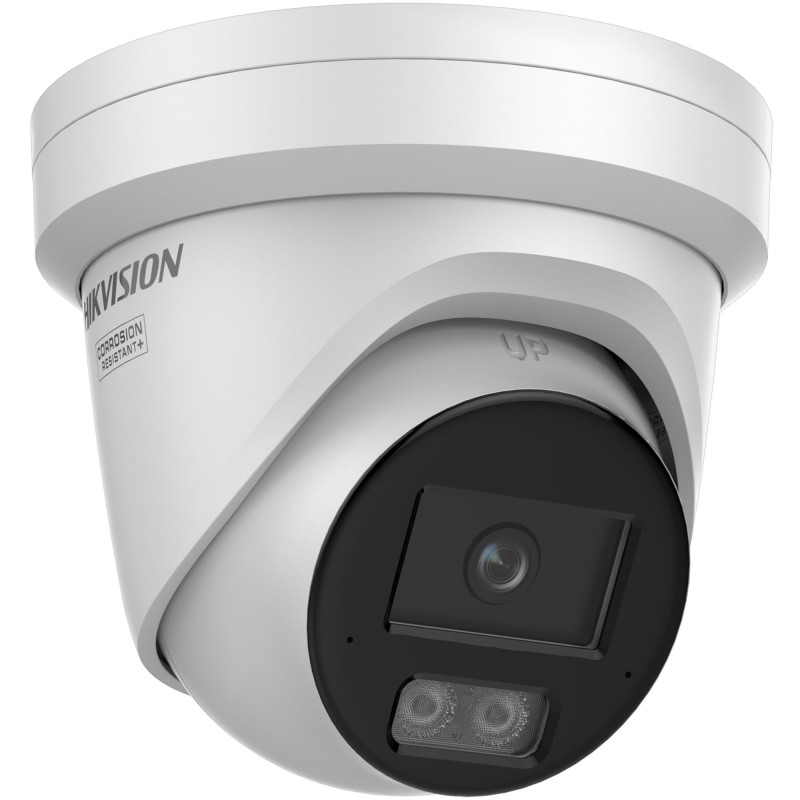

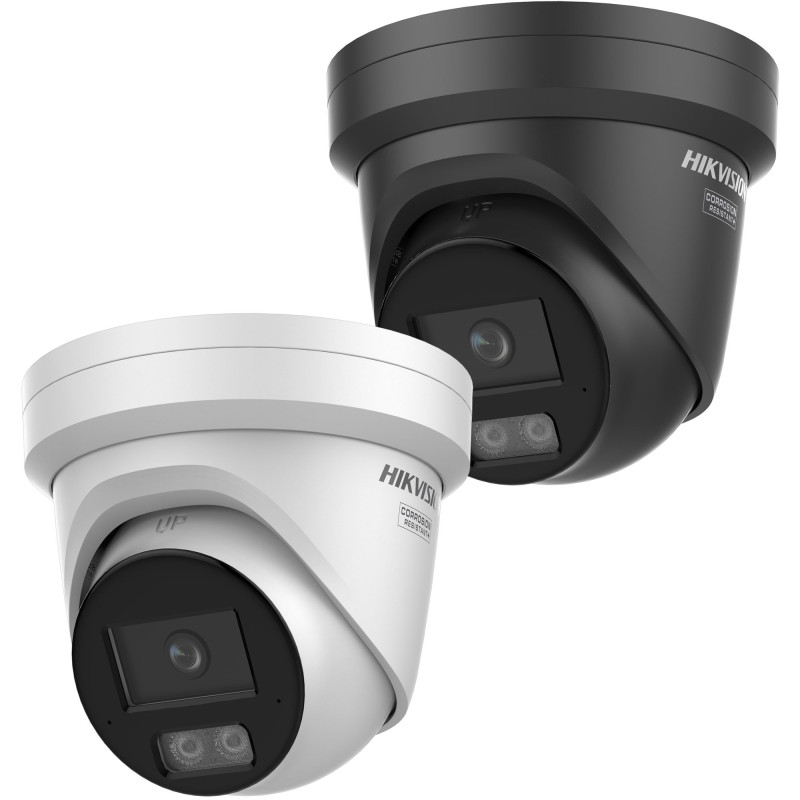

Hikvision Turret DS-2CD2347G3-LI2UY F2.8 (white, 4MP, ColorVu 3.0, Hybrid Light, IR+LED 30m)
Product reference:
26-6936422115203
- HikAI-ISP technology for excellent noise reduction effect
- 24/7 color vision with ColorVu technology
- Scene-adaptive WDR
- Person and vehicle recognition based on deep learning
- Integrated dual microphone array for real-time high-quality audio protection
- Anti-corrosion construction for greater reliability and durability compared to standard (NEMA 4X)
- Smart hybrid light: integrated IR and white light, 3 additional lighting modes
- Water and dust resistant (IP67)
Hikvision Turret DS-2CD2347G3-LI2UY F2.8 (white, 4MP, ColorVu 3.0, Hybrid Light, IR+LED 30m)
Product reference:
26-6936422115203
- HikAI-ISP technology for excellent noise reduction effect
- 24/7 color vision with ColorVu technology
- Scene-adaptive WDR
- Person and vehicle recognition based on deep learning
- Integrated dual microphone array for real-time high-quality audio protection
- Anti-corrosion construction for greater reliability and durability compared to standard (NEMA 4X)
- Smart hybrid light: integrated IR and white light, 3 additional lighting modes
- Water and dust resistant (IP67)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General
- Image sensor 1/1.8" Progressive Scan CMOS
- Highest resolution 2688 × 1520
- Minimal lighting Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
- Shutter speed 1 s to 1/100,000 s
- DayNight IR cut filter
- Changing the angle Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Lens type Fixed focal lens, 2.8 mm and 4 mm optional
- Focal Length FOV 2.8 mm: horizontal 111.1°, vertical 57.6°, diagonal 138.5°; 4 mm: horizontal 95.2°, vertical 48.3°, diagonal 117.4°
- Lens mount M16
- Iris type Fixed
- Aperture F1.0
- Depth of field 2.8 mm: 2.5 m to ∞; 4 mm: 3.1 m to ∞
- DOROUS 2.8 mm: D 61 m, O 24 m, R 12 m, I 6 m; 4 mm: D 75 m, O 30 m, R 15 m, I 7 m
- Additional lighting type White Light, IR
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60Hz: 30fps (1280×720, 640×480, 640×360)
- Third stream 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
- Image compression Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline, Main, High Profile
- H.265 type Main Profile
- Bit rate control CBR, VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Audio type -2U: Mono sound
- Audio bit rate -2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 16-64 Kbps (AAC-LC), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3)
- Audio compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio sampling frequency -2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Removing extraneous sounds -2U: Yes
- Network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
- Live video viewing Up to 6 channels
- API ONVIF (Profile S/G/T), ISAPI, SDK, ISUP
- User/port Up to 32 users; administrator, operator, user
- Security Password protection, HTTPS, 802.1X authentication, watermark, IP filter, digest authentication, RTP/RTSP over HTTPS, security audit log, TLS 1.1/1.2/1.3, MAC authentication
- Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Browser Plug-in free live view and local service: Chrome 80+, Firefox 80+, Edge 89+
- Photo parameters converter Yes
- Image settings Rotate, saturation, brightness, contrast, sharpness, gain, white balance
- Day/night switch Day, Night, Auto, Schedule
- Photo beautification BLC, HLC, 3D DNR, Distortion Correction, Defog
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 130 dB
- Image stabilization EIS
- Privacy mask 4 programmable polygon masks
- Web interface 1 RJ45 10/100 Mbps self-adaptive port
- Internal memory microSD/microSDHC/microSDXC up to 512 GB
- Built-in microphone -2U: Arrayed dual-microphone
- Reboot button Yes
- Main functions Motion detection (human/vehicle), video tampering, exception
- Smart features Scene change detection
- Interface FTP/NAS/memory card upload, notify center, trigger recording/capture, email
- Smart features Face capture
- Perimeter security Line crossing, intrusion, region entrance/exiting (human/vehicle)
- Power 12 VDC ±25%, 0.7 A, max. 8.5 W; PoE IEEE 802.3af Class 3, max. 11 W
- Material Cover: metal; main body: metal
- Dimensions Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
- Package size 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
- Weight Approx. 750 g (1.7 lb.)
- Weight with packaging Approx. 1140 g (2.5 lb.)
- Storage conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Working conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- Language 33 languages including English, German, French, Spanish, Russian, Chinese, Japanese, Korean
- EMC Approval CE, RCM, IC, KC standards compliant
- Security UL 62368-1, IEC 62368-1, EN 62368-1
- Environmental protection CE-RoHS 2011/65/EU
- Protection IP67
- Corrosion protection NEMA 4X
| Manufacturer | Hikvision |
| Manufacturer code | KIPCD2347G3LI2UYF28 |
| Weight | 0.88 kg |
