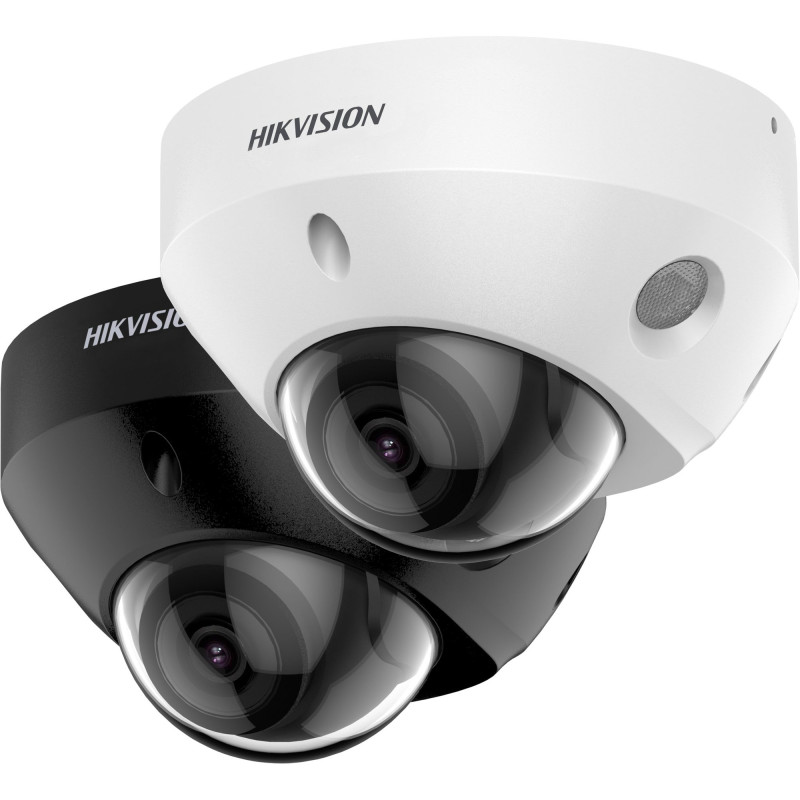

Hikvision mini dome DS-2CD2586G2-IS(C) (Black, 8 MP, 30M IR, AcuSense)

Product reference: 26-6931847137441

Hikvision mini dome DS-2CD2586G2-IS(C) (Black, 8 MP, 30M IR, AcuSense)

Product reference: 26-6931847137441

You have 3 products in compare list, please remove someone and try again

Add to compare

202,12 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Approvals
EMC FCC (47 CFR Part 15, Subpart B)CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)RCM (AS/NZS CISPR 32: 2015)IC (ICES-003: Issue 7)KC (KN32: 2015, KN35: 2015)
Environmental protection CE-RoHS (2011/65/EU)WEEE (2012/19/EU)Reach (Regulation (EC) No 1907/2006)
Protection IP67: IEC 60529-2013,IK08: IEC 62262:2002
Security UL (UL 62368-1)CB (IEC 62368-1: 2014+A11)CE-LVD (EN 62368-1: 2014/A11: 2017)LOA (IEC/EN 60950-1)

Sound
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8) to 320 Kbps (MP3)/16) to 64 Kbps (AAC-LC)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Removing extraneous sounds Yes

Smart features
Facial recognition Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Features
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Smart features Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection

General information
Dimensions Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9")
Main functions Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Material Base: aluminum, cover: plastic
Package size 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Power 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE (802.3af, 36 V to 57 V), 0.22 A to 0.14 A, max. 8 W
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Weight Approx. 400 g (0.9 lb.)
Weight with packaging Approx. 635 g (1.4 lb.)

Day/night switch Day, Night, Auto, Schedule
Photo beautification BLC, HLC, 3D DNA
Photo parameters converter Yes
Image settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120dB

Interface
Alarm -IS：1 input, 1 output (max. 12 VDC, 20 mA)
Sound -IS:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Built-in microphone Yes
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD card, up to 512 GB
Reboot button Yes

Lens
Aperture F1.6
Depth of field 2.8 mm: 2.2 m to ∞4 mm: 2.6 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 110.0°, vertical FOV 56.7°, diagonal FOV 134.1°4 mm, horizontal FOV 88.0°, vertical FOV 49.9°, diagonal FOV 100.4°
Iris type Fixed
Lens mount M12
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Customer iVMS-4200, Hik-Connect, Hik-Central
Internal memory NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSockets, WebSockets
Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Live video viewing Up to 6 channels
User/port Up to 32 users. 3 user levels: administrator, operator and user
Browser Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Bit rate control CBR/VBR
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
Main stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920×1080, 1280×720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.265+/H.264+Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264*Third stream is supported under certain settings.
