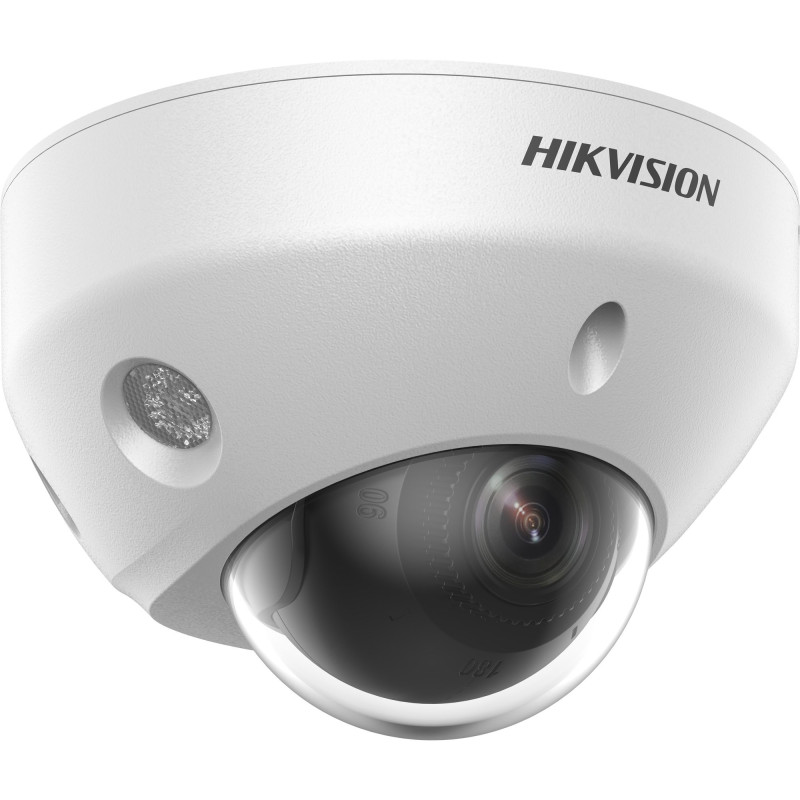

Hikvision Mini Dome DS-2CD2583G2-LIS2U F2.8 (white, 8MP, AcuSense, IR+LED 30m, 4K, IK10)
Product reference:
26-6942160477763
- High quality image with 8 MP resolution
- Acusense: Human and Vehicle Recognition Based on Deep Learning
- Smart hybrid light: integrated IR and white light, 3 additional lighting modes
- -2U: Integrated dual microphone array for real-time high-quality audio protection
- Clear image in strong backlight thanks to 120 dB true WDR
- Efficient H.265+ video compression technology
- Water and dust resistant (IP67) and vandal resistant (IK08)
Hikvision Mini Dome DS-2CD2583G2-LIS2U F2.8 (white, 8MP, AcuSense, IR+LED 30m, 4K, IK10)
Product reference:
26-6942160477763
- High quality image with 8 MP resolution
- Acusense: Human and Vehicle Recognition Based on Deep Learning
- Smart hybrid light: integrated IR and white light, 3 additional lighting modes
- -2U: Integrated dual microphone array for real-time high-quality audio protection
- Clear image in strong backlight thanks to 120 dB true WDR
- Efficient H.265+ video compression technology
- Water and dust resistant (IP67) and vandal resistant (IK08)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General
- Image sensor 1/2.8" Progressive Scan CMOS
- Highest resolution 3840 × 2160
- Minimal lighting Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
- Shutter speed 1/3 s to 1/100,000 s
- DayNight IR cut filter
- Changing the angle Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Lens type Fixed focal lens, 2.8 mm and 4 mm optional
- Focal Length FOV 2.8 mm: horizontal 108°, vertical 59°, diagonal 127°; 4 mm: horizontal 88°, vertical 44°, diagonal 105°
- Lens mount M12
- Iris type Fixed
- Aperture F1.6
- Depth of field 2.8 mm: 1.7 m to ∞; 4 mm: 2.6 m to ∞
- DOROUS 2.8 mm: D 84 m, O 33 m, R 16 m, I 8 m; 4 mm: D 117 m, O 46 m, R 23 m, I 11 m
- Additional lighting type IR, White Light
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Main stream 50 Hz: 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 20fps (3840×2160), 30fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
- Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60Hz: 30fps (1280×720, 640×480, 640×360)
- Third stream 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
- Image compression Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline, Main, High Profile
- H.265 type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Bit rate control CBR, VBR
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Target cropping Yes
- Audio compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio bit rate -2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
- Audio sampling frequency -2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Removing extraneous sounds -2U: Yes
- Network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Live video viewing Up to 6 channels
- API ONVIF (Profile S/G), ISAPI, SDK, ISUP
- Security Password protection, HTTPS, IP address filter, security audit log, digest authentication, TLS 1.1/1.2/1.3, WSSE/digest auth for ONVIF
- User/port Up to 32 users; administrator, operator, user
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Internal memory NAS (NFS, SMB/CIFS), ANR; supports memory card encryption health detection with high-end Hikvision card
- Browser IE 11 (plug-in required); plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Photo parameters converter Yes
- Day/night switch Day, Night, Auto, Schedule
- Image settings Rotate mode
- Wide Dynamic Range (WDR) 120dB
- SNR ≥ 52 dB
- Photo beautification BLC, HLC, 3D DNA
- Privacy mask 8 programmable polygon masks
- Web interface 1 RJ45 10/100 Mbps self-adaptive port
- Audio Interface -2U: built-in arrayed dual-microphone; -S: 1 line in (3.3 Vpp, 4.7 KΩ), 1 line out (3.3 Vpp, 100 Ω), two-core terminal blocks
- Internal memory microSD/microSDHC/microSDXC up to 512 GB
- Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reboot button Yes
- Main functions Motion detection (human/vehicle), video tampering, exception
- Smart features Face detection
- Interface FTP/NAS/memory card upload, notify center, email, trigger recording/capture, -S: trigger alarm output
- Perimeter security Line crossing, intrusion (human/vehicle)
- Power 12 VDC ±25%, 0.54 A, max. 6.5 W; PoE IEEE 802.3af Class 3, max. 8 W
- Material Base: aluminum; cover: plastic
- Dimensions Ø113.6 mm × 74.6 mm (Ø4.47" × 2.94")
- Package size 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")
- Weight Approx. 500 g (1.1 lb.)
- Weight with packaging Approx. 660 g (1.5 lb.)
- Storage conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Working conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Language 33 languages including English, German, French, Spanish, Russian, Chinese, Japanese, Korean
- Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- EMC Approval CE, RCM, IC, KC standards compliant
- Security IEC/EN 62368-1; BIS IS 13252 (Part 1); LOA IEC/EN 60950-1
- Environmental protection CE-RoHS, WEEE, REACH
- Protection IP67, IK08
| Manufacturer | Hikvision |
| Manufacturer code | KIP2CD2583G2LIS2U28 |
| Weight | 0.5 kg |
