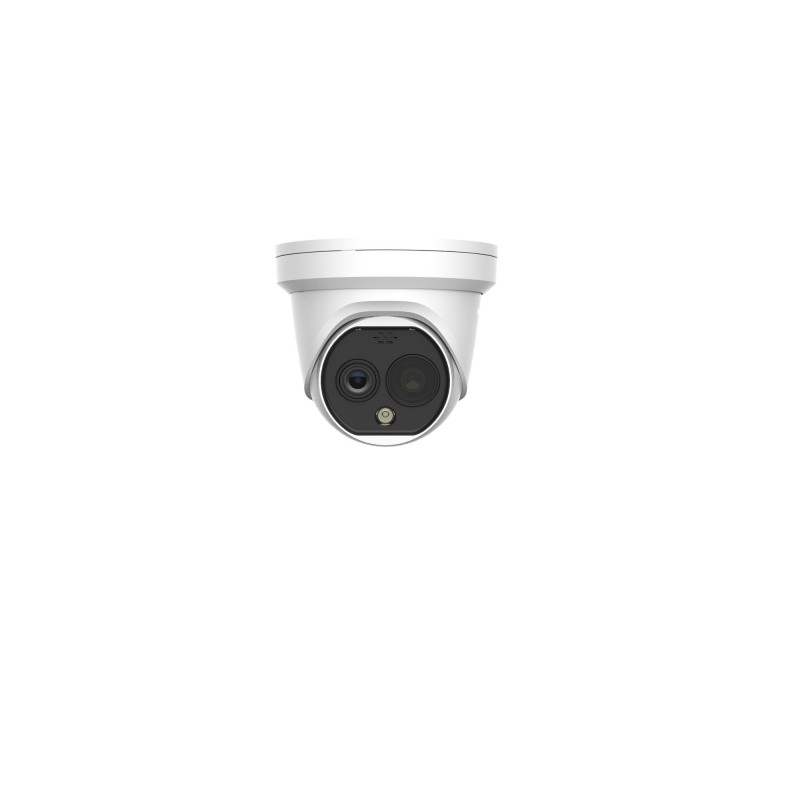

Hikvision HeatPro series thermal imaging dome DS-2TD1228T-3 / QA(B)

Product reference: 26-6942160457093

Type: IP camera
Model: DS-2TD1228T-3/QA(B)
Brand: Hikvision
Technology: Thermal imaging and optical
Camera type: IP dome
Thermal module resolution: 256x192
Temperature accuracy: ±2 °C, ±2%
Optical module resolution: 2688 x 1520
Wide Dynamic Range (WDR) technology: 120 dB
Compression: H.265
IR illumination distance: 15 m
LED lighting range: 30 m
Resistance to environmental conditions: IP66
Power over Ethernet (PoE): Yes
Functions: Fire detection, smoke detection, smoking detection, sun glare filter, forklift hazard filter

VCA range

(Vehicles: 1.4 × 4.0 m) - 75.6 m
(People: 1.8 × 0.5 m) - 28.4 m
Temperature measurement (object: 1 × 1 m) - 58.3 m
Fire detection (object: 0.2 × 0.2 m) - 43.2 m
Smoke detection (object: 0.5 × 0.5 m) - 12.9 m
Smoke detection - 5.4 m

Hikvision HeatPro series thermal imaging dome DS-2TD1228T-3 / QA(B)

Product reference: 26-6942160457093

Type: IP camera
Model: DS-2TD1228T-3/QA(B)
Brand: Hikvision
Technology: Thermal imaging and optical
Camera type: IP dome
Thermal module resolution: 256x192
Temperature accuracy: ±2 °C, ±2%
Optical module resolution: 2688 x 1520
Wide Dynamic Range (WDR) technology: 120 dB
Compression: H.265
IR illumination distance: 15 m
LED lighting range: 30 m
Resistance to environmental conditions: IP66
Power over Ethernet (PoE): Yes
Functions: Fire detection, smoke detection, smoking detection, sun glare filter, forklift hazard filter

VCA range

(Vehicles: 1.4 × 4.0 m) - 75.6 m
(People: 1.8 × 0.5 m) - 28.4 m
Temperature measurement (object: 1 × 1 m) - 58.3 m
Fire detection (object: 0.2 × 0.2 m) - 43.2 m
Smoke detection (object: 0.5 × 0.5 m) - 12.9 m
Smoke detection - 5.4 m

You have 3 products in compare list, please remove someone and try again

Add to compare

582,31 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Audible and visual signal
Sound alarm Yes, for three types of audible alarm (VCA and Temperature Exception)3 preset voice alerts (one for each)6 importable user-defined voice alerts (6 options shared in the two types)
Visual alarm Yes. White light alarm with adjustable flashing frequencies
White light range Up to 30 m

Home
Size 138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
Languages 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Energy consumption 12 VDC ± 25%: 0.5 A, Max 6 WPoE (802.3af, class 3): 36 V to 57 V, 0.22 A to 0.14 A, Max 6.5 W
Power supply 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Protection level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection
Weight 940g (2.07lb)
Operating temperature/humidity Temperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less

Image effect
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Picture in Picture Display partial image of thermal channel on the full screen of optical channel
Target color Yes. Supported in white hot and black hot mode.

Interface
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Alarm output 2, alarm output (alarm response actions configurable)
Audio input 1, 3.5 mm Mic in/Line in interfaceLine input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio output Linear level, impedance: 600 Ω
Communication interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface (half duplex)

Network
API ISAPI, HIKVISION SDK, ISUP,，and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
Customer iVMS-4200, Hik-Connect
Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP, TLS
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Live video viewing Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User

Optical module
Day Night Mode IR Cut Filter with Auto Switch
FOV 84.0° ×43.1° (H × V)
Focal length 4.3 mm
Sensor 1/2.7" Progressive Scan CMOS
Min. lighting 0.0089Lux @(F1.6,AGC ON),0 Lux with IR
Resolution 2688 × 1520
Shutter speed 1 s to 1/100,000 s
WDR 120dB
White balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light

Smart function
Main functions Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Temperature accuracy Max (±2°C, ±2 %)
Temperature measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature range -20°C to 550°C (-4°F to 1022°F);
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.

Image and sound
Audio compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Main stream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920×1080, 1280×720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Image compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG
