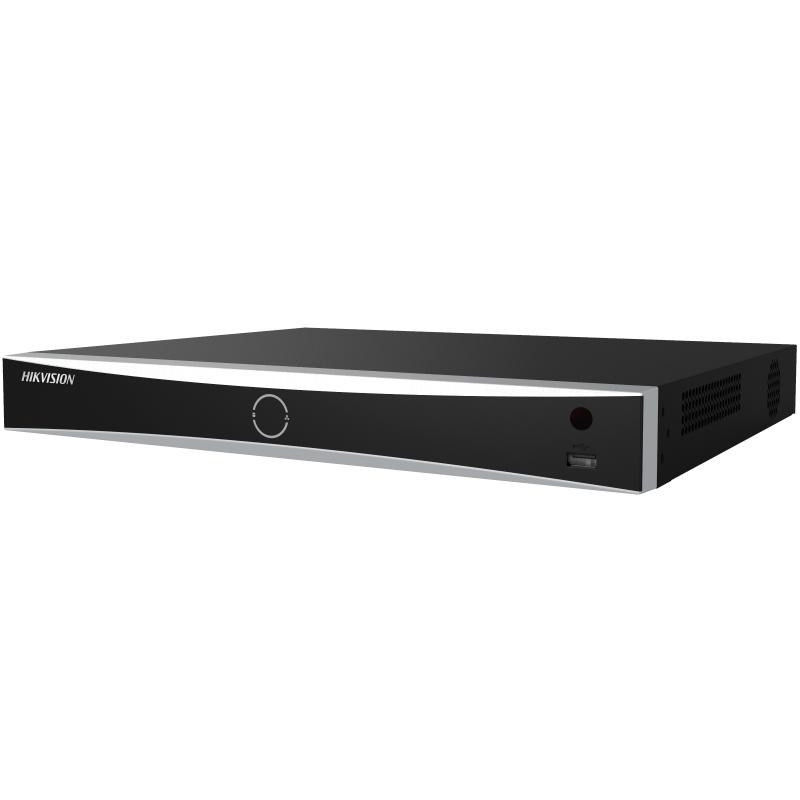

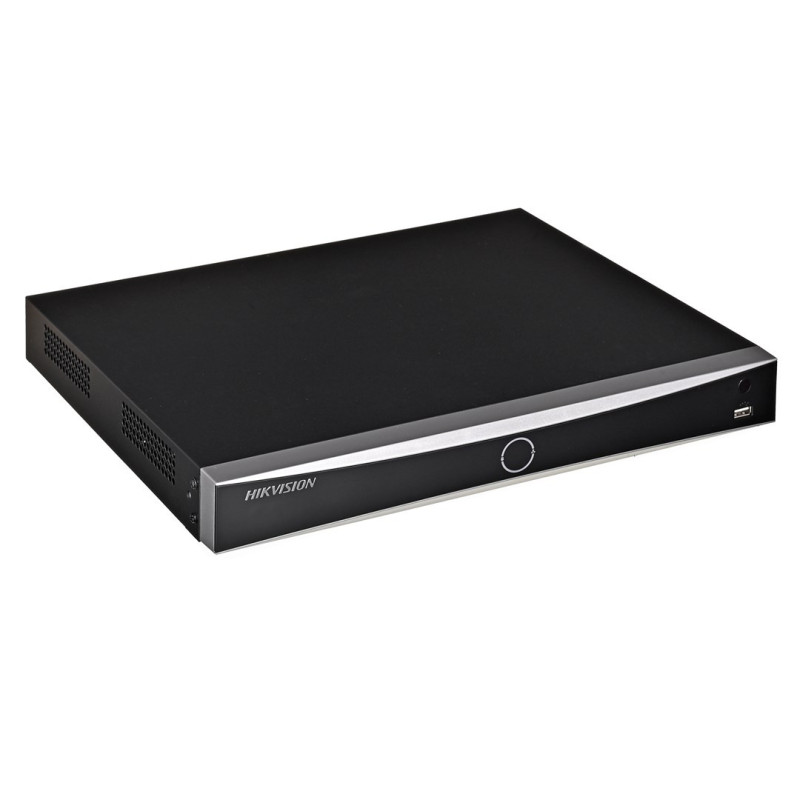

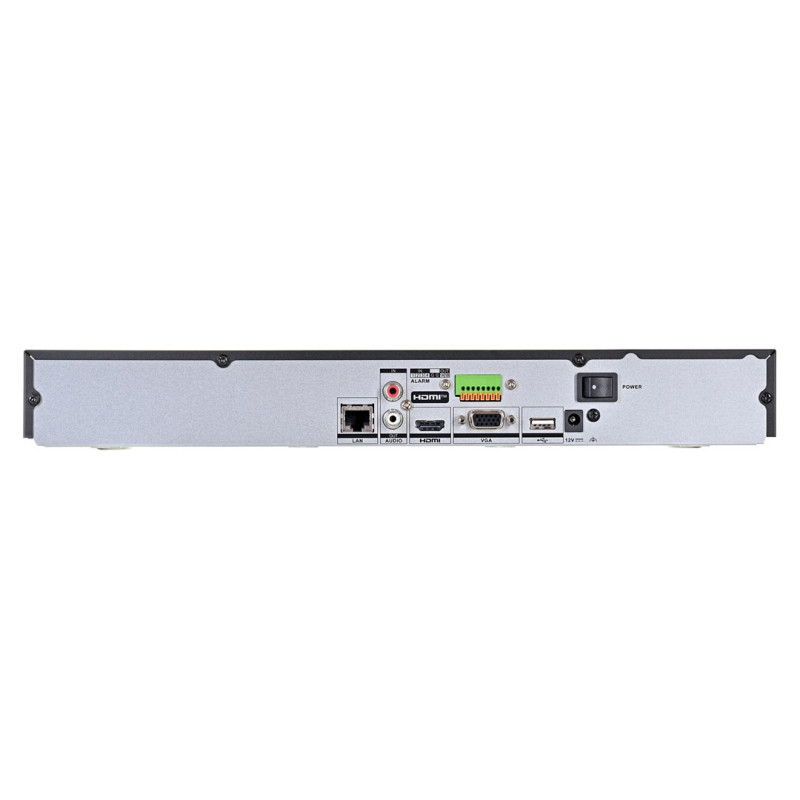

Hikvision DS-7616NXI-K2(D) network video recorder 1U Black

Product reference: 6-DS-7616NXI-K2(D)

Hikvision DS-7616NXI-K2(D) network video recorder 1U Black

Product reference: 6-DS-7616NXI-K2(D)

Hikvision DS-7616NXI-K2(D) network video recorder 1U Black

You have 3 products in compare list, please remove someone and try again

Add to compare

14967 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 8
business days

Compliance certificates	CE, Federal Communications Commission (FCC)
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Output current	3.3 A
Output voltage	12 V
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Weight	1 kg
Width	385 mm
Depth	315 mm
Height	52 mm
Supported resolutions	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Video formats supported	H.265, H.264+, H.264, H.265+
Video input channels	16 channels
Maximum resolution	3840 x 2160 pixels
Alarm output channels	1
Alarm input channels	4
Output bandwidth	160 Mbit/s
Number of simultaneously playbacked channels	16 channels
Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Face detection	Yes
Audio formats supported	AAC, G.726, G.711 A-law, G.711 μ-law, G.722
Built-in display	No
Wi-Fi	No
Internal SATA ports quantity	2
Ethernet LAN data rates	10, 1000 Mbit/s, 100
Audio RCA inputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Power over Ethernet (PoE)	Yes
HDMI output	Yes
Audio RCA outputs	1
USB 2.0 ports quantity	2
VGA (D-Sub) output ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Maximum storage capacity	20 TB
HDD capacity	10 TB
Number of HDDs supported	2
HDD interface	SATA
