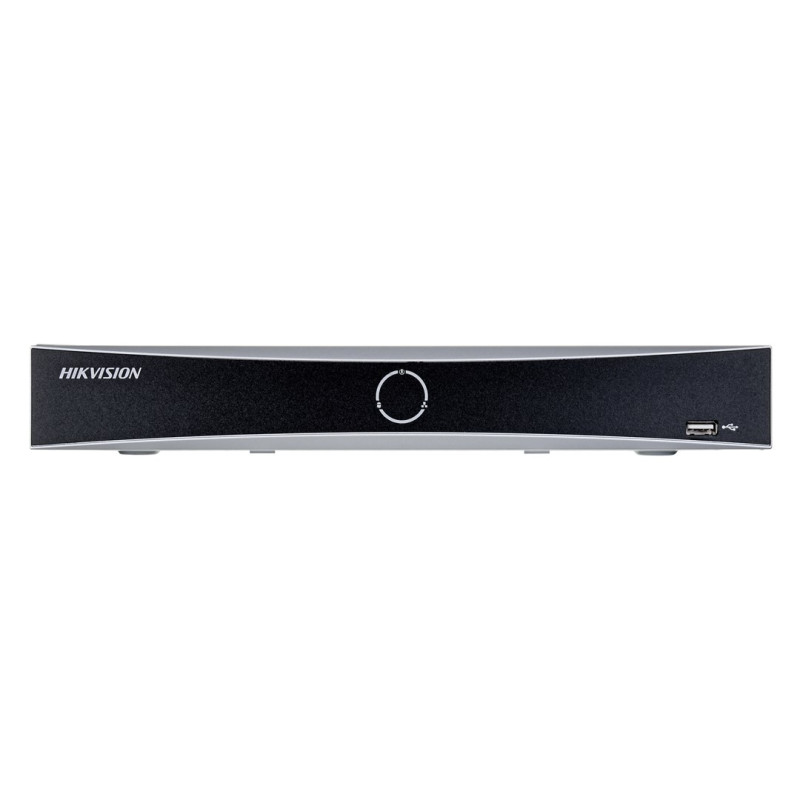

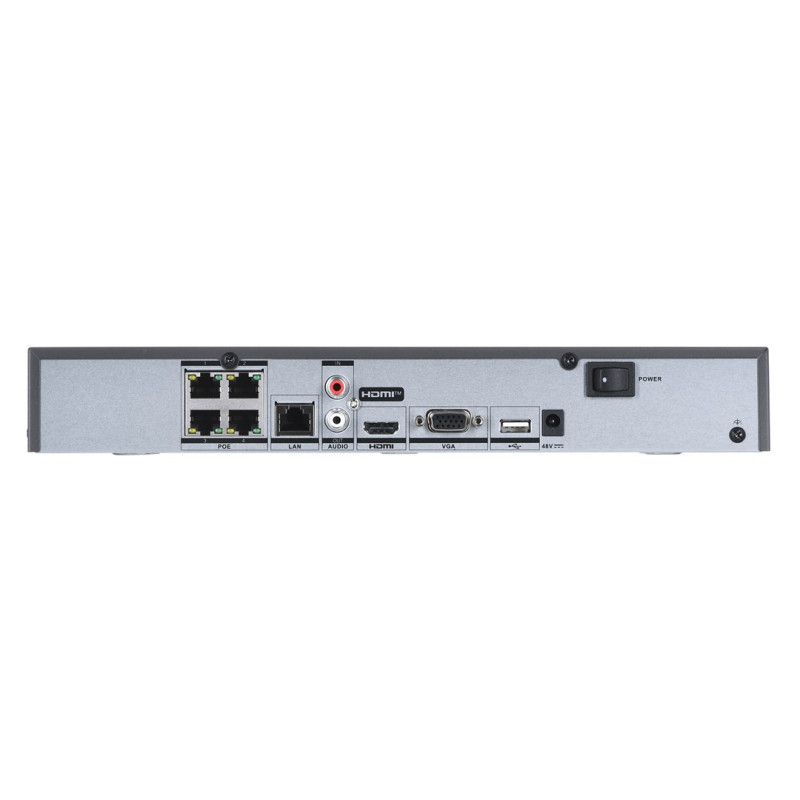

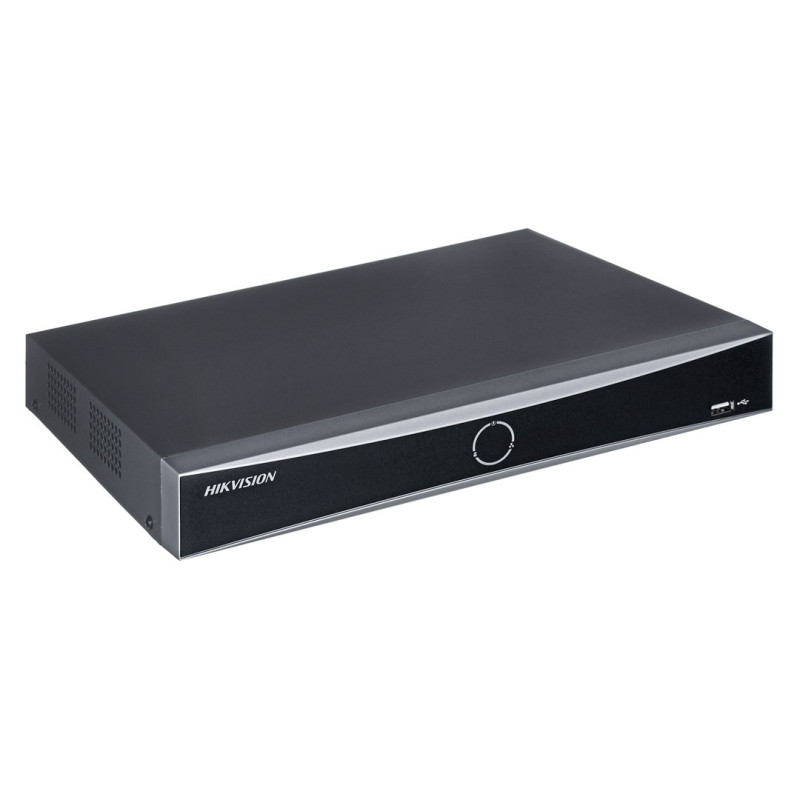

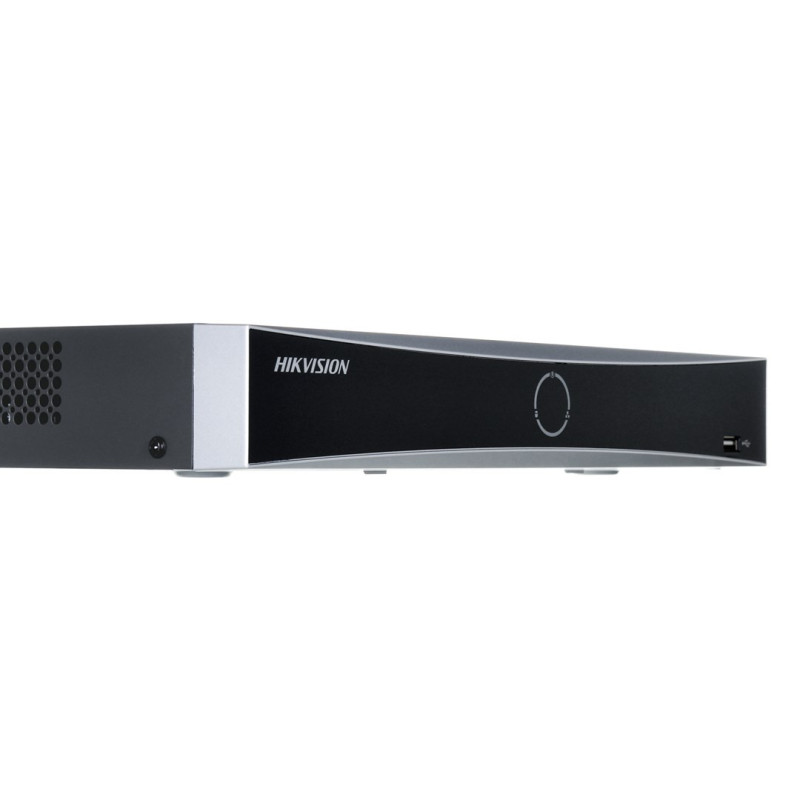

Hikvision DS-7604NXI-K1 / 4P(D) Network Video Recorder (NVR) 1U Black
Product reference:
6-DS-7604NXI-K1/4
Hikvision DS-7604NXI-K1/4P(D) Network Video Recorder (NVR) 1U Black
Hikvision DS-7604NXI-K1 / 4P(D) Network Video Recorder (NVR) 1U Black
Product reference:
6-DS-7604NXI-K1/4
Hikvision DS-7604NXI-K1/4P(D) Network Video Recorder (NVR) 1U Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| Audio formats supported | AAC, G.711 A-law, G.711 μ-law, G.722, G.726 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Depth | 240 mm |
| Ethernet LAN (RJ-45) ports | 5 |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Face detection | Yes |
| HDD interface | SATA |
| HDMI output | Yes |
| HDMI ports quantity | 1 |
| Height | 48 mm |
| Input bandwidth | 40 Mbit/s |
| Internal SATA ports quantity | 1 |
| Maximum frame rate | 30 fps |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum storage capacity | 16 TB |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of HDDs supported | 1 |
| Number of simultaneously playbacked channels | 4 channels |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Output bandwidth | 80 Mbit/s |
| Output current | 1.35 A |
| Output voltage | 48 V |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Product colour | Black |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
| Supported resolutions | 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| Sustainability certificates | CE, Federal Communications Commission (FCC) |
| Total Power over Ethernet (PoE) budget | 50 W |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| Video formats supported | H.264, H.264+, H.265, H.265+ |
| Video input channels | 4 channels |
| Warnings | Do not expose the device to moisture or extreme temperatures., The appliance should be installed by a qualified professional., The product must be disposed of properly in accordance with local regulations for the disposal of electronics. |
| Weight | 1 kg |
| Wi-Fi | No |
| Width | 320 mm |
