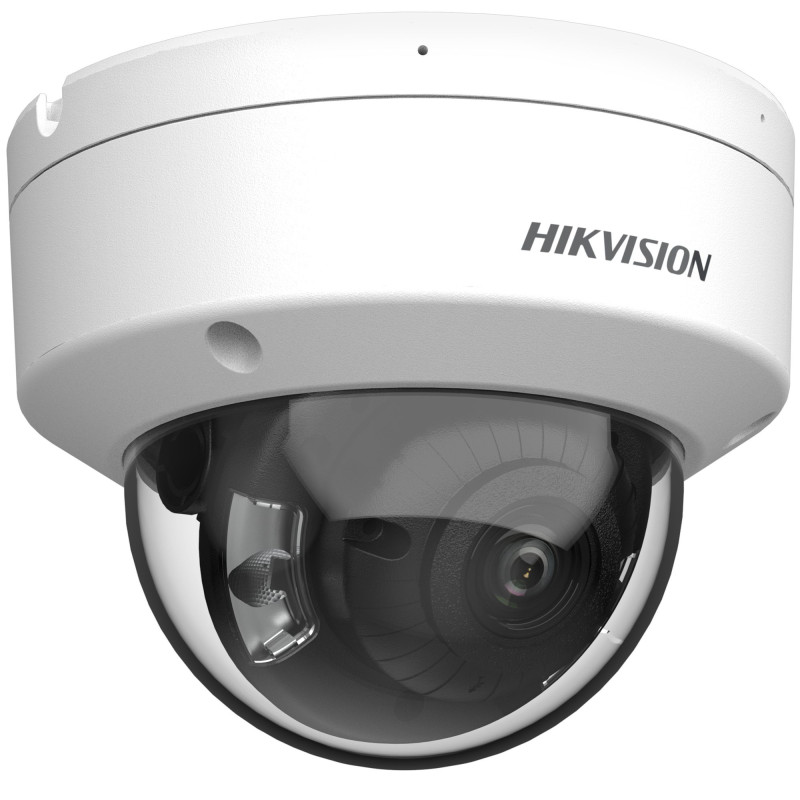

Hikvision dome DS-2CD2187G2-LSU(C) F2.8 (white, 8 MP, 30 m. LED, ColorVu)
Product reference:
26-6931847187491
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 109°
- Technology: ColorVu
- Built-in microphone: Yes
- Night lighting: 30 m. LED
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Security level: IP67
- Image compression: H.265+
- WiFi: No
- Holder/base (optional): DS-1272ZJ-120B
- Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2187G2-LSU(C) F2.8 (white, 8 MP, 30 m. LED, ColorVu)
Product reference:
26-6931847187491
- MP (MegaPixel): 8 MP
- Lens: 2.8 mm, horizontal FOV: 109°
- Technology: ColorVu
- Built-in microphone: Yes
- Night lighting: 30 m. LED
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Security level: IP67
- Image compression: H.265+
- WiFi: No
- Holder/base (optional): DS-1272ZJ-120B
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Camera
- Sensor 1/1.8" Progressive Scan CMOS
- Max resolution 3840 × 2160
- Min. lighting Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter speed 1/3 s to 1/100,000 s
- Day Night 24/7 color imaging
- Changing the angle Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length FOV
2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130°
4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°
- Lens installation M16
- Iris type Fixed
- Aperture F1.0
- Depth of field
2.8 mm: 3.1 m to ∞
4 mm: 3.5 m to ∞
- DOROUS
- DOROUS
2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- Lighting
- Additional lighting type White Light
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- Image
- Main stream
50Hz:
25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz:
24fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
- Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
- Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Bit rate control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
- Sound
- Audio type -SU: Mono sound
- Audio compression -WITH: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio bit rate -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16) to 64 Kbps (AAC-LC)
- Audio sampling frequency -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Removing extraneous sounds -SU: Yes
- Internet
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Internal memory
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Customer iVMS-4200,iVMS-5200,Hik-Connect
- Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Photo
- Photo parameters converter Yes
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR) 130 dB
- SNR ≥ 52 dB
- Photo beautification BLC,HLC,3D DNA
- Privacy mask 4 regions of privacy mask
- Interface
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in microphone -SU: Yes
- Sound
-SU: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -SU: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
- Reboot button Yes
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Smart features Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
- Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning (-SU), trigger alarm output (-SU), supplement light
- Smart features
- Facial recognition Yes
- Home
- System parameters 12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5W
- Material Metal
- Size
Ø121.5 mm × 97.6 mm (Ø4.8 × 3.8\")"
- Package size 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight Approx. 540 g (1.2 lb.)
- Weight with packaging Approx. 735 g (1.6 lb.)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Main functions Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Approvals
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Security
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
- Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
| Manufacturer | Hikvision |
| Manufacturer code | KIP2CD2187G2LSUCF28 |
| Weight | 0.615 kg |
