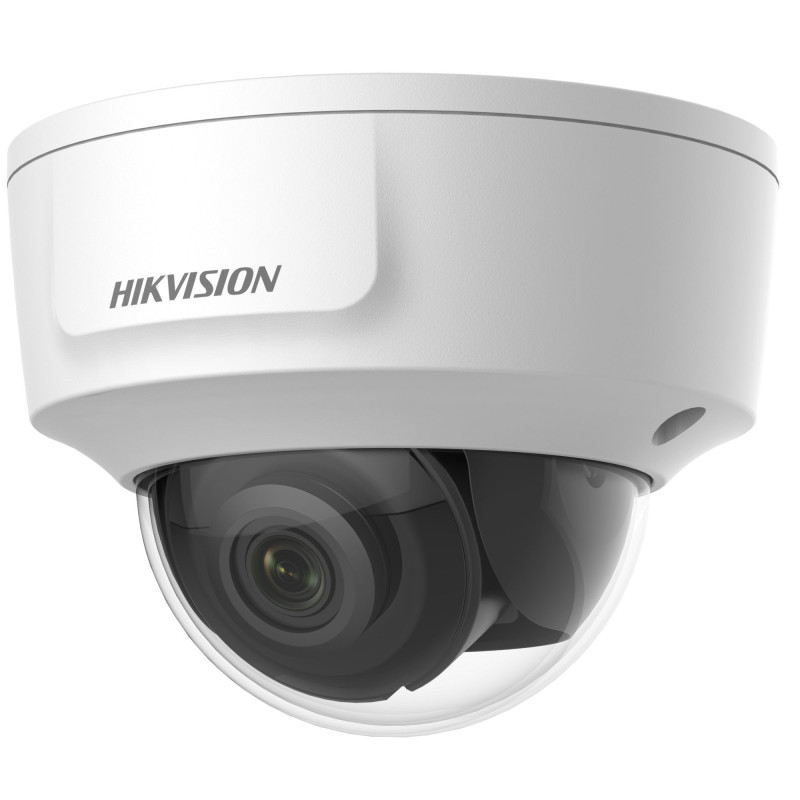

Hikvision dome DS-2CD2186G2-IMS F2.8 (white, 8 MP, 30m IR, AcuSense, DarkFighter)

Product reference: 26-6942160472256

Hikvision dome DS-2CD2186G2-IMS F2.8 (white, 8 MP, 30m IR, AcuSense, DarkFighter)

Product reference: 26-6942160472256

You have 3 products in compare list, please remove someone and try again

Add to compare

208,31 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Lens
Focal Length FOV 2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 133°
Lens type Fixed focal lens, 2.8 mm
Aperture F1.6
Iris type Fixed
Lens installation M12

DOROUS
DOROUS
2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m
4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m

Main stream
50Hz: 25fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz: 24fps (3840×2160),
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Sound
Audio type Mono sound
Removing extraneous sounds Yes
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8) to 320 Kbps (MP3)

Internet
Live video viewing Up to 6 channels
API ISAPI, SDK, ISUP, ONVIF (Profile S, Profile G, Profile T)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Internal memory
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200,Hik-Connect,Hik-Central
Browser
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Photo parameters converter Yes
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Privacy mask 4 programmable polygon privacy masks
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Interface
Sound
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video output 1 type D HDMI interface (female plug) (720p@50 fps/60 fps, 1080p@25 fps/30 fps/50 fps/60 fps, HDMI version 1.4)
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reboot button Yes
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart features scene change detection
Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Smart features
Facial recognition Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Home
System parameters
12 VDC ± 25%, 0.7 A, max. 8.4 W, reverse polarity protection,Ø5.5 mm coaxial power plug, or two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 10 W
Material Metal
Size Ø119 mm × 90 mm (Ø4.7" × 3.5")
Package size 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight Approx. 440 g (0.97 lb.)
Weight with packaging Approx. 720 g (1.59 lb.)
Storage conditions -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
Working conditions -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing)
Main functions Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approvals
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Security

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IK10: IEC 62262:2002
