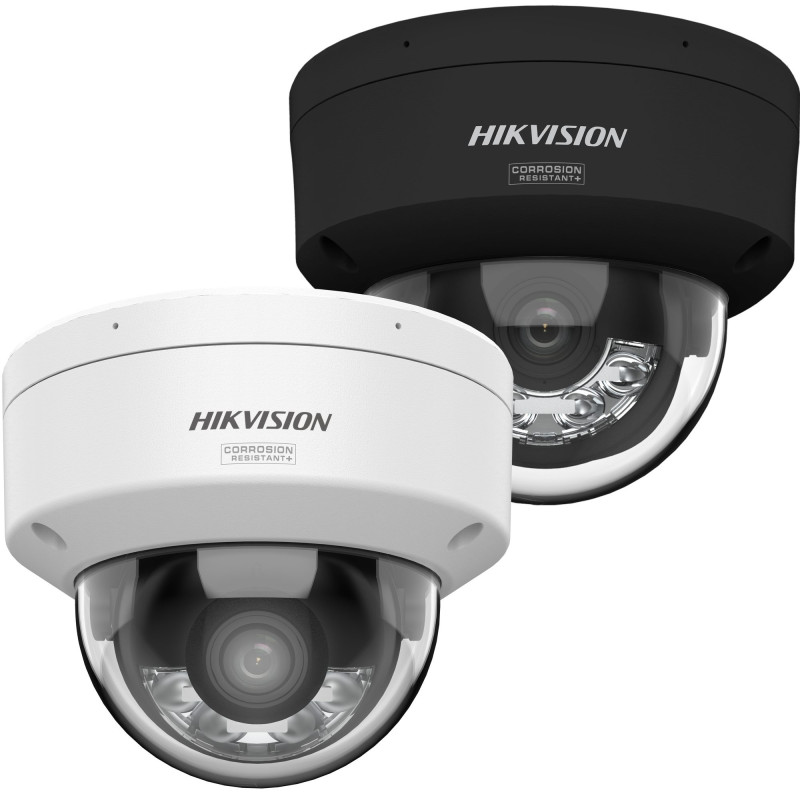

Hikvision dome DS-2CD2147G3-LIS2UY F2.8 (Black, 4 MP, 30 m IR 30 m LED Hybrid Light, ColorVu)

Product reference: 26-6936422115104

HikAI-ISP guarantees exceptional noise suppression performance;
24/7 color imaging using ColorVu technology;
Scene-adaptive WDR;
Focuses on classification of people and vehicles based on deep learning methods;
-S2U: Integrated arrayed dual microphone system, ensuring real-time high-quality audio security;
Corrosion-resistant design, ensuring reliability and durability compared to standard ones (NEMA4X);
Smart Hybrid Lighting: Integrates IR and white light, offering 3 additional lighting modes;
Water and dust resistant (IP67) and vandal resistant (IK10);

Hikvision dome DS-2CD2147G3-LIS2UY F2.8 (Black, 4 MP, 30 m IR 30 m LED Hybrid Light, ColorVu)

Product reference: 26-6936422115104

HikAI-ISP guarantees exceptional noise suppression performance;
24/7 color imaging using ColorVu technology;
Scene-adaptive WDR;
Focuses on classification of people and vehicles based on deep learning methods;
-S2U: Integrated arrayed dual microphone system, ensuring real-time high-quality audio security;
Corrosion-resistant design, ensuring reliability and durability compared to standard ones (NEMA4X);
Smart Hybrid Lighting: Integrates IR and white light, offering 3 additional lighting modes;
Water and dust resistant (IP67) and vandal resistant (IK10);

You have 3 products in compare list, please remove someone and try again

Add to compare

201,92 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Lens
Lens type Fixed focal lens, 2.8 and 4 mm optional
Focal Length FOV 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Lens installation M16
Iris type Fixed
Aperture F1.0
Depth of field 2.8 mm: 2.5 m to ∞4 mm: 3.1 m to ∞

DOROUS
DOROUS 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*The third stream is supported under certain settings.
Image compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream

Sound
Audio type -2U: Mono sound
Audio compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio sampling frequency -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Removing extraneous sounds -2U: Yes

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
Live video viewing Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/port Up to 32 users3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Customer iVMS-4200,Hik-Connect,Hik-Central
Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+,Local service: Chrome 80+, Firefox 80+, Edge 89+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA, Distortion Correction, Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB
Image stabilization EIS
Privacy mask 4 programmable polygon privacy masks

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Sound -S2U models support: Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S: 1 input, 1 output (max. 24 VAC/VDC, 1A)
Reboot button Yes

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,-S model: trigger alarm output
Smart features Scene change detection

Smart features
Facial recognition Yes
Perimeter security Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
Power supply 12 VDC ± 25%, 0.6 A, max. 7.2 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
Material Base: aluminum alloy, cover: aluminum alloy
Size Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Package size 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Weight Approx. 600 g (1.3 lb.)
Weight with packaging Approx. 825 g (1.8 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approvals
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015 KN35: 2015
Security UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
Corrosion protection NEMA 4X (NEMA 250-2018)
