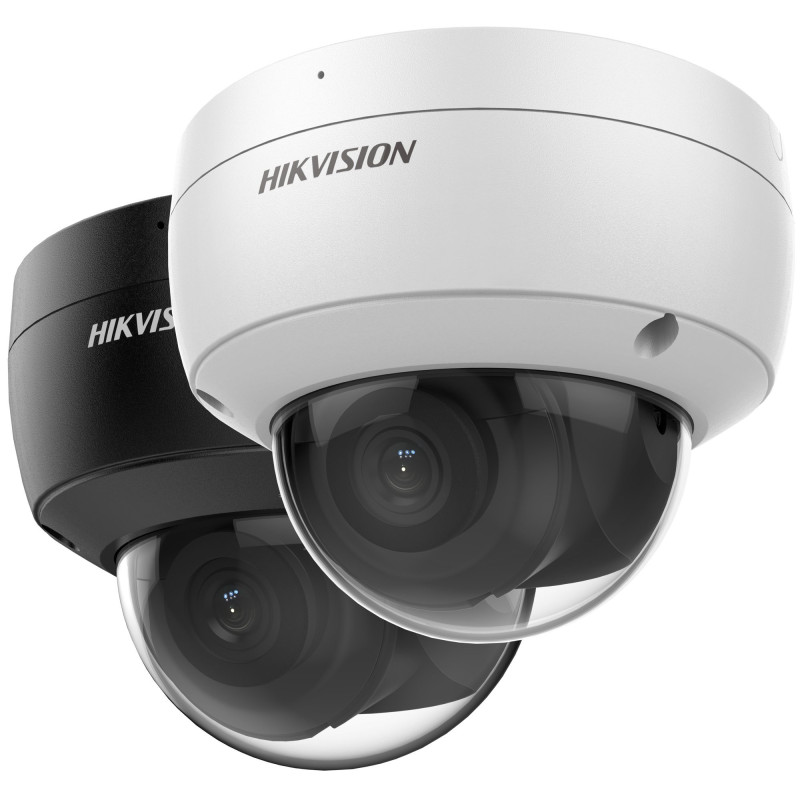

Hikvision dome DS-2CD2146G2-ISU F2.8 (black, 4 MP, 30 IR, AcuSense)
Product reference: 26-6941264088950
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 103°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Security level: IP67
  • Image compression: H.265+
  • WiFi: No
  • Holder/base (optional): DS-1280ZJ-DM46
  • Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2146G2-ISU F2.8 (black, 4 MP, 30 IR, AcuSense)

Hikvision dome DS-2CD2146G2-ISU F2.8 (black, 4 MP, 30 IR, AcuSense)

Product reference: 26-6941264088950
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 103°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 30 m. IR
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Security level: IP67
  • Image compression: H.265+
  • WiFi: No
  • Holder/base (optional): DS-1280ZJ-DM46
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
143,21 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Camera
Sensor1/2.7" Progressive Scan CMOS
Min. lightingColor: 0.003 Lux @ (F1.4, AGC ON)
Shutter speed1/3 s to 1/100,000 s
Day/nightICR Cut
Adjustment anglePan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Slow shutterYes
P/NP/N
WDR120dB
Lens
Lens and viewing angle2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
ApertureF1.4
Lens mountM12
Aperture typeFixed
Enlightenment
IR distanceUp to 30 m
Wavelength850 nm
Smart lightingYes
Additional lightingAND
Videos
Max resolution2592 × 1944
Main stream50Hz: 20fps (2592 × 1944)
25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2592 × 1944)
30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Secondary flow50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Third stream50Hz: 25fps (1280×720, 640×480, 640×360, 360×240)
60Hz: 30fps (1280×720, 640×480, 640×360, 360 × 240)
CompressionMain stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video speed 32 Kbps to 8 Mbps
H.264Baseline Profile/Main Profile/High Profile
H.265Main Profile
H.264+Main Stream supports
H.265+Main Stream supports
Bit rate controlCBR/VBR
Video Configuration (SVC)Yes
Areas of Interest (ROI)1 fixed region for each stream
Audio
Ambient noise filtering-S: Yes
Audio frequency-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate-S:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Network
Simultaneous live viewingUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, Ipv6, UDP, Bonjour, SSL/TLS
Smooth broadcastingYes
UsersUp to 32 users. 3 user levels: administrator, operator and user
ProtectionPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Network storageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
CustomersiVMS-4200, Hik-Connect, Hik-Central
BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Day/night transitionDay, Night, Auto, Schedule
Image settingsBLC, HLC, 3D DNA
Switching image settingsYes
SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interfaces
Alarm-S: 1 input, 1 output (max. 12 VDC @30 mA)
Built-in microphone-U: Yes
Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 100 Ω, interface type: non-equilibrium
Internal memoryBuilt-in micro SD slot, up to 256 GB
ReloadingYes
Communication interface1 RJ45 10M/100M self-adaptive Ethernet port
Events
Baseline eventsMotion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Deep learning
Face detectionYes
SecurityLine crossing detection, intrusion detection, region entrance detection, region exiting
detection
General
Storage ConditionsStorage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power supply12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Current consumption12 VDC, 0.45 A, max. 5.4 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Power connectorØ5.5 mm coaxial power plug
MaterialMetal upper cover and base
DimensionsØ121 × 92 mm (4.8" × 3.6")
Package dimensions150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 585 g (1.3 lb.)
Weight with packagingApprox. 836 g (1.8 lb.)
Connection methodsUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
audible warning
Languages33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General functionsAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter
Reloading the programYes
Permissions
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SecurityUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection-SU: Ingression protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
-I: Ingression protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

ManufacturerHikvision
Manufacturer codeKIP2CD2146G2ISUF2.8B
Weight0.574 kg
