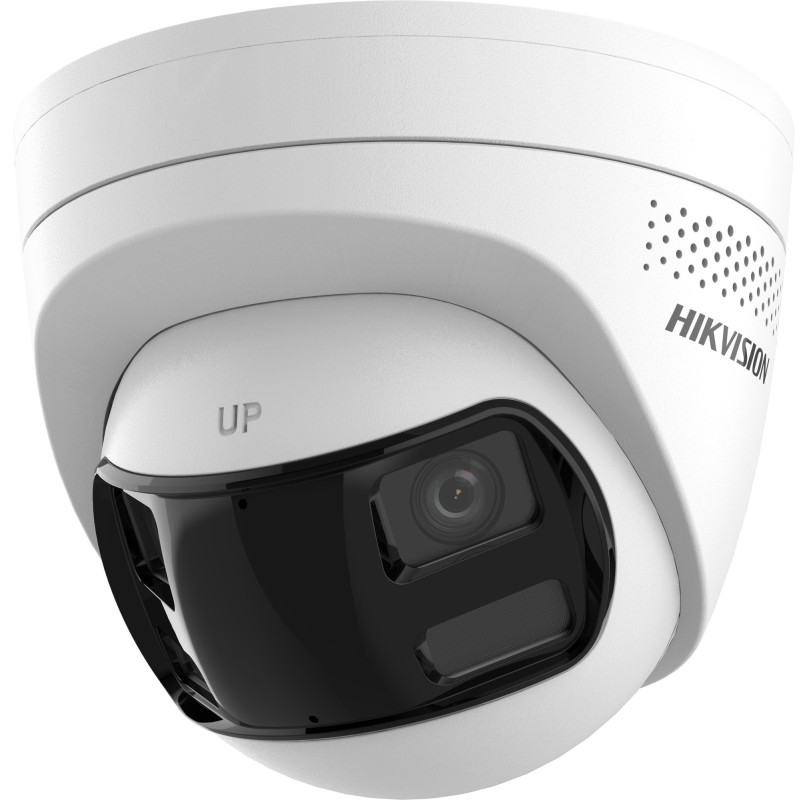

Hikvision dome DS-2CD1363G2P-LIUF / SL F2.8 (white, 6 MP, 180°, 30 m LED)
Product reference:
26-6936422118990
- 180° viewing angle
- High quality image with 6 MP resolution
- Support for recognition of persons and vehicles
- Smart hybrid light: advanced technology with long range
- Efficient H.265+ compression technology
- Recording device supports up to 512 GB (SD card slot)
- Real-time protection via built-in two-way audio
- Water and dust resistance (IP67)
- Built-in microphone
- Active light and sound alarm to scare away intruders
- Holder/base (optional): DS-1280ZJ-DM21
Hikvision dome DS-2CD1363G2P-LIUF / SL F2.8 (white, 6 MP, 180°, 30 m LED)
Product reference:
26-6936422118990
- 180° viewing angle
- High quality image with 6 MP resolution
- Support for recognition of persons and vehicles
- Smart hybrid light: advanced technology with long range
- Efficient H.265+ compression technology
- Recording device supports up to 512 GB (SD card slot)
- Real-time protection via built-in two-way audio
- Water and dust resistance (IP67)
- Built-in microphone
- Active light and sound alarm to scare away intruders
- Holder/base (optional): DS-1280ZJ-DM21
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Approvals
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
- Security CB: IEC 62368-1: 2014+A11,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Sound
- Audio bit rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16) to 64 Kbps (AAC-LC)
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio sampling frequency 8 kHz/16 kHz
- Audio type Mono sound
- Removing extraneous sounds Yes
- Camera
- Changing the angle Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- DayNight IR cut filter
- Image sensor 1/2.5" Progressive Scan CMOS
- Max resolution 3632 × 1632
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter speed 1 s to 1/100,000 s
- DOROUS
- DOROUS 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m
- Features
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
- Interface Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture, audible warning, strobe light flashing
- General data
- Measurements Ø130.1 mm × 109.1 mm (Ø5.12" × 4.3")
- Flashing Light /SRB model: Red and Blue Light/SL model: White Light
- Main functions Heartbeat, anti-banding, password protection, password reset via email
- Language English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian
- Package size 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Power supply 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Weight Approx. 580 g (1.3 lb.)
- Weight with packaging Approx. 760 g (1.7 lb.)
- Lighting
- IR wavelength 850 nm
- Smart additional lighting Yes
- Additional lighting range Up to 30 m
- Additional lighting type IR,White Light
- Photo
- Day/Night mode Day, Night, Auto, Schedule
- Photo beautification BLC,HLC,3D DNA
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy mask 4 programmable polygon privacy masks
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 120dB
- Interface
- Built-in microphone Yes,1 built-in microphone
- Built-in speaker Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reboot button Yes
- Lens
- Aperture F1.6
- Focal Length FOV 2.8 mm, horizontal FOV 180°, vertical FOV 77°
- Iris type Fixed
- Lens installation M12
- Lens type Fixed focal lens, 2.8 mm
- Network
- API ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK
- Customer iVMS-4200,Hik-Connect
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Live video viewing Up to 6 channels
- User/port Up to 32 users3 user levels: administrator, operator, and user
- Browser Plug-in required live view: IE 11,Local service: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Bit rate control CBR,VBR
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Main stream 50 Hz: 20 fps (3632 × 1632) 60 Hz: 20 fps (3632 × 1632)
- Region of Interest (ROI) 1 fixed region for main stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Secondary flow 50Hz: 20fps (1200×536, 960×432)60Hz: 20fps (1200×536, 960×432)
- Video bit rate 32 Kbps to 16 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
| Manufacturer | Hikvision |
| Manufacturer code | KIP2CD1363G2PLIUFSLF28 |
| Weight | 0.57 kg |
