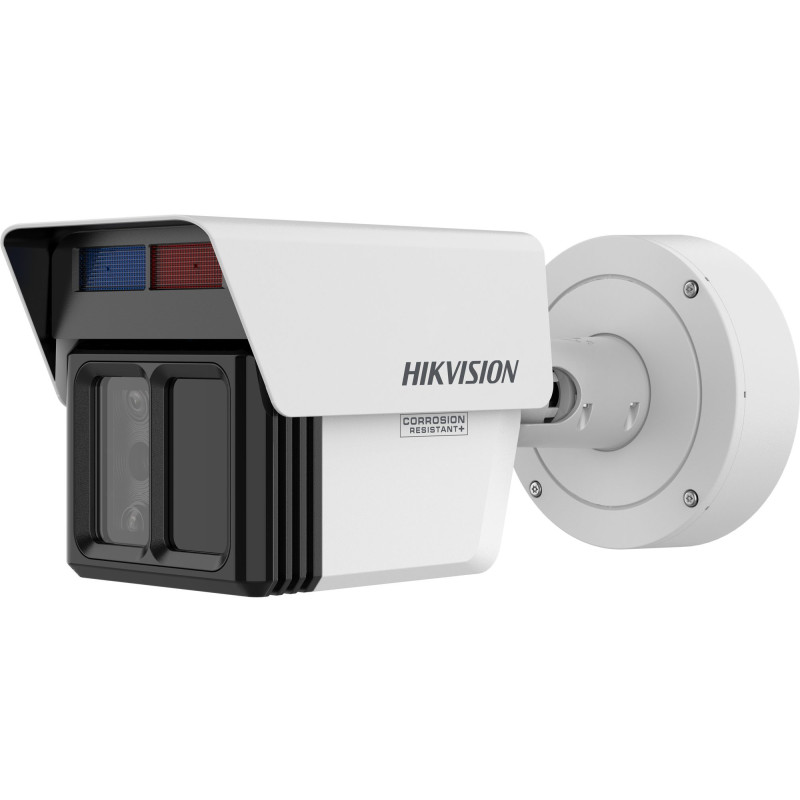

Hikvision Bullet iDS-2CD7T46G2 / VX3-IHSY three-lens camera 4 / 12 / 25mm (white, 4MP + 2×2MP, AND 120m, Guanlan AI, Per
Product reference:
26-6936422167028
- Guanlan AI's large-scale artificial intelligence model for perimeter protection reduces false alarms by up to 90%
- High quality image with triple lens 4MP and 2MP + 2MP resolution
- Excellent low-light performance thanks to DarkFighter 2.0 technology
- The AI Encoding feature reduces video size by up to 50% while maintaining image quality.
- Clear image in high contrast thanks to 140 dB WDR technology
- Efficient H.265+ compression technology helps save storage space
- VCA analytics operates up to 100 m at night, up to 120 m during the day
- Water and dust resistant (IP67), vandalism (IK10) and corrosion resistant (NEMA 4X standard)
- Built-in lens heater for clear vision in snowy conditions
- IR night vision up to 120 m
- Red/blue LED light alarm and audible warning
- Motorized tilt adjustment from -10° to 10° for convenient installation
- Integrated microphone and speaker
- TPM 2.0 for cybersecurity
- Base included in the package
- EIS - image stabilization function to eliminate camera vibrations and shake
Hikvision Bullet iDS-2CD7T46G2 / VX3-IHSY three-lens camera 4 / 12 / 25mm (white, 4MP + 2×2MP, AND 120m, Guanlan AI, Per
Product reference:
26-6936422167028
- Guanlan AI's large-scale artificial intelligence model for perimeter protection reduces false alarms by up to 90%
- High quality image with triple lens 4MP and 2MP + 2MP resolution
- Excellent low-light performance thanks to DarkFighter 2.0 technology
- The AI Encoding feature reduces video size by up to 50% while maintaining image quality.
- Clear image in high contrast thanks to 140 dB WDR technology
- Efficient H.265+ compression technology helps save storage space
- VCA analytics operates up to 100 m at night, up to 120 m during the day
- Water and dust resistant (IP67), vandalism (IK10) and corrosion resistant (NEMA 4X standard)
- Built-in lens heater for clear vision in snowy conditions
- IR night vision up to 120 m
- Red/blue LED light alarm and audible warning
- Motorized tilt adjustment from -10° to 10° for convenient installation
- Integrated microphone and speaker
- TPM 2.0 for cybersecurity
- Base included in the package
- EIS - image stabilization function to eliminate camera vibrations and shake
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General
- Image sensor 1/2.7" Progressive Scan CMOS
- Highest resolution Channel 1: 2688 × 1520, Channel 2: 1920 × 1080, Channel 3: 1920 × 1080
- Minimal lighting Channel 1: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR; Channel 2 3: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter speed 1 s to 1/100,000 s
- Aperture 4mm F1.6, 12mm F1.6, 25mm F2.8
- Focal Length FOV 4 mm: 82.5° (H), 45.3° (V), 96.1° (D); 12mm: 25.4° (H), 14.4° (V), 29.1° (D); 25mm: 13.0° (H), 7.4° (V), 14.9° (D)
- Iris type Fixed
- DOROUS 4 mm: D: 77.6 m, O: 30.8 m, R: 15.5 m, I: 7.8 m; 12 mm: D: 171 m, H: 67.9 m, R: 34.2 m, I: 17.1 m; 25mm: D: 331m, O: 131.4m, R: 66.2m, I: 33.1m
- Additional lighting type AND
- Additional lighting range Up to 120 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Main stream Ch.1: 25/30 fps @ up to 2688 × 1520, Ch.2 Ch.3: 25/30 fps @ up to 1920 × 1080
- Secondary flow Ch.1-3: 25/30 fps @ 704×576 or 640×480
- Third stream Ch.1-3: 25/30 fps @ 1920 × 1080, 1280 × 720, 704 × 576/480, 640 × 480
- Image compression Main: H.265+/H.265/H.264+/H.264, Sub: H.265/H.264/MJPEG, Third: H.265/H.264
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline, Main, High Profile
- H.265 type Main Profile
- SVC H.264 and H.265 encoding
- Region of Interest (ROI) 8 fixed regions per stream
- Bit rate control CBR, VBR
- Audio compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
- Audio bit rate 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
- Audio sampling frequency 8/16/32/48kHz
- Audio type Mono sound
- Removing extraneous sounds Yes
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket(s)
- Live video viewing Up to 20 channels
- API Open Network Video Interface (Profile S, G, T, M), ISAPI, SDK, ISUP
- Users/Hosts Up to 32 users, roles: administrator, operator, user
- Security features Password protection, HTTPS, 802.1X, watermark, IP filtering, WSSE, TLS 1.2/1.3, AES128/256, TPM 2.0, audit log
- Internal memory NAS (NFS, SMB/CIFS), ANR, Hikvision memory card support with encryption and health detection
- Client Software iVMS-4200, Hik-Connect, Hik-Central
- Browser Live view with plugin: IE 10/11, Plugin-free: Chrome 57+, Firefox 52+, Edge 89+, Safari 11+
- Image settings Saturation, brightness, contrast, sharpness, white balance, AGC (adjustable via client/web)
- Day/night switch Day, Night, Auto, Schedule, Alarm Trigger
- WDR Digital WDR
- Photo beautification BLC, HLC, 3D DNR, distortion correction, defog
- SNR ≥ 52 dB
- Privacy mask 8 programmable polygon zones
- Image stabilization EIS
- Photo overlay LOGO overlay (128×128 bmp, 24-bit)
- Ethernet 1 × RJ45 10/100M adaptive port
- Internal memory Up to 1 TB microSD/microSDHC/microSDXC
- Audio input/output 2 inputs (line in), 1 output (line out), 3.5 mm jack
- Built-in microphone Yes, 2 integrated microphones
- Alarm input/output 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Built-in speaker Yes, 1 speaker
- RS-485 -Y: 1 port, half-duplex, supports HIKVISION, Pelco-P/D
- Reboot button Yes
- Output power -Y: 12 VDC, max. 50 mA
- Basic Events Motion detection (with object type), video tampering, network exception, IP conflict, illegal login, abnormal restart, HDD full/error, video diagnostics
- Smart Events Scene change, audio anomaly, defocus, unattended baggage, object removal, fast movement, parking, crowd, loitering detection
- Event Linkage FTP/NAS/upload, notify CMS, email, alarm output, recording, snapshot, sound warning
- Perimeter security Line crossing, intrusion, region enter/exit; alarm by target type (person/vehicle); Guanlan AI model reduces false alarms by 90%, VCA range up to 120 m
- Metadata Features Intrusion, line crossing, region entry/exit detection
- Power 12 VDC ±20%, 2.1 A, max. 25.2 W; PoE: IEEE 802.3at Type 2 Class 4, 42.5-57 V, 0.56-0.45 A, max. 25.5 W
- Material Front cover, body, and bracket: Metal
- Device Dimensions 128.9 × 139.5 × 337 mm (5.1" × 5.5" × 13.2")
- Package dimensions 423 × 200 × 198 mm (16.65" × 7.87" × 7.8")
- Weight With -Y: 2500 g (5.51 lb), Without -Y: 2510 g (5.53 lb)
- Package weight With -Y: 3470 g (7.65 lb), Without -Y: 3530 g (7.78 lb)
- Storage conditions -30 °C to 65 °C (-22 °F to 149 °F), ≤ 95% RH (non-condensing)
- Working conditions With -H: -40 °C to 65 °C (-40 °F to 149 °F), Without -H: -30 °C to 65 °C (-22 °F to 149 °F), ≤ 95% RH
- Languages Supported 33 languages (English, Russian, Chinese, Spanish, etc.)
- General features Heartbeat, mirror, password protection, one-key reset
- Heater -Y: Yes
- Device management Supports alarm box DS-FM2466 for 6 input 6 output expansion via LAN
- EMC Certification CE-EMC: EN55032:2015+A1:2020, EN50130-4:2011+A1:2014, etc.; RCM, IC
- Environmental compliance RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (1907/2006)
- Protection against dust and moisture IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
- Security IEC 62368-1:2014+A11, IEC/EN 60950-1, EN 62368-1:2014/A11:2017
- Corrosion protection -Y: NEMA 4X (NEMA 250-2018)
- Other PVC-free (PVC FREE)
| Manufacturer | Hikvision |
| Manufacturer code | KIP2CD7T46G2VX3IHSY |
| Weight | 2.5 kg |
