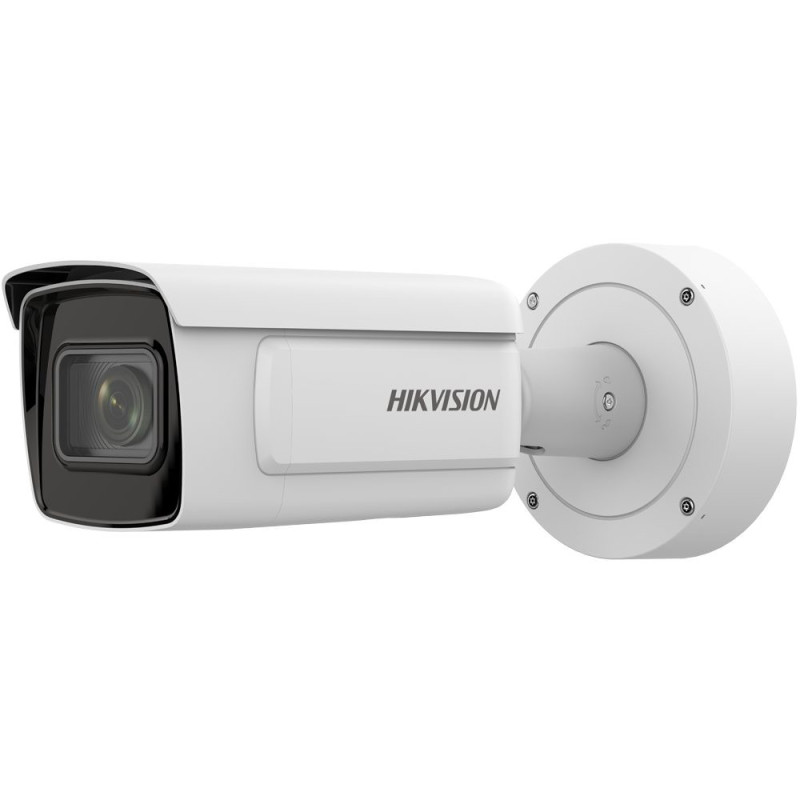

Hikvision bullet iDS-2CD7A46G0 / PIZHSY (C) F8-32 (white, 4 MP, 50 IR)
Product reference:
26-6931847133023
- IDS-2CD7A46G0/P-IZHSY (C)
- Lens range: 8-32 mm (114.5°-41.8°)
- Camera: ANPR, BULLET
- Technology: Hikvision, Darkfighter, Anti-corrosion 6in1
- Compression: H.265+
- Resolution: 4MP
- Infrared illumination: Up to 50m
- Heater: Yes
- Memory card: SD up to 256GB
- Alarm inputs/outputs: 2 IN/OUT
- Protection class: IP67, IK10
- Number plate recognition (ANPR)
- Power supply: PoE
Hikvision bullet iDS-2CD7A46G0 / PIZHSY (C) F8-32 (white, 4 MP, 50 IR)
Product reference:
26-6931847133023
- IDS-2CD7A46G0/P-IZHSY (C)
- Lens range: 8-32 mm (114.5°-41.8°)
- Camera: ANPR, BULLET
- Technology: Hikvision, Darkfighter, Anti-corrosion 6in1
- Compression: H.265+
- Resolution: 4MP
- Infrared illumination: Up to 50m
- Heater: Yes
- Memory card: SD up to 256GB
- Alarm inputs/outputs: 2 IN/OUT
- Protection class: IP67, IK10
- Number plate recognition (ANPR)
- Power supply: PoE
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Camera
- Sensor 1/1.8" Progressive Scan CMOS
- Max resolution 2688 × 1520
- Min. lighting
Color: 0.0005 Lux @ (F1.2, AGC ON);
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter speed 1 s to 1/100,000 s
- Day Night
IR cut filter
Blue glass module to reduce ghost phenomenon
- Lens
- Focal Length FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
- Focusing Auto,Semi-auto,Manual
- Iris type P-iris
- Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- DOROUS
- DOROUS
Wide:
2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m
Tele:
2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m
8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
- Lighting
- Additional lighting type AND
- Additional lighting range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz:
25 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)
50 fps (2560×1440, 1920×1080, 1280×720)
60Hz:
30 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)
60fps (2560×1440, 1920×1080, 1280×720)
- Secondary flow
50 Hz: 25 fps (704 × 576, 640 × 480)
60Hz: 30fps (704x480, 640x480)
- Third stream
50Hz: 25fps (1920×1080, 1280×720, 704×576, 640×480)
60Hz: 30fps (1920×1080, 1280×720, 704×480, 640×480)
- Fourth stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60Hz: 30fps (704x480, 640x480)
- Fifth stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60Hz: 30fps (704x480, 640x480)
- Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Bit rate control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 4 fixed regions for each stream
- Target cropping Yes
- e-PTZ Support Patrol and Auto Tracking settings
- Sound
- Audio type Mono sound
- Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16) to 64 Kbps (AAC-LC)
- Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Removing extraneous sounds Yes
- Internet
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- Live video viewing Up to 20 channels
- API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
- Internal memory
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Customer iVMS-4200,Hik-Connect,Hik-Central
- Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Photo
- Photo parameters converter Yes
- Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
- Wide Dynamic Range (WDR) 140 dB
- SNR ≥ 52 dB
- Photo beautification BLC,HLC,3D DNA, Distortion Correction, Defog
- Photo overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Image stabilization EIS
- Privacy mask 8 programmable polygon privacy masks
- Interface
- Video output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Web interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Sound With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reboot button Yes
- Power With -Y: 12 VDC, max. 100 mA
- Wiegand -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
- Features
- Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
- Smart features scene change detection, audio exception detection, defocus detection
- Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
- Smart features
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
- Road traffic and vehicle detection
Smart Function:
Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist: up to 10,000 records
LPR Countries/Regions:
4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
Accuracy (Under recommended installation and lighting conditions):
License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed:
Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
- Parking Management
Support distant view mode and close view mode
Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
- Home
- System parameters
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0.295 A, max. 16.8 W
- Material Aluminum alloy body
- Size
Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7")
With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"
- Package size 405mm × 190mm × 180mm (15.9" × 7.5" × 7.1")
- Weight Approx. 1950 g (4.2 lb.)
- Weight with packaging Approx. 3070 g (6.7 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Main functions Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Heater Yes
- Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
- Approvals
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Security
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
- Corrosion protection -Y: NEMA 4X (NEMA 250-2018)
- Automation EN50121-4
- Other PVC FREE
| Manufacturer | Hikvision |
| Manufacturer code | KIPIDS2CD7A46G0PIZHY |
| Weight | 1.98 kg |
