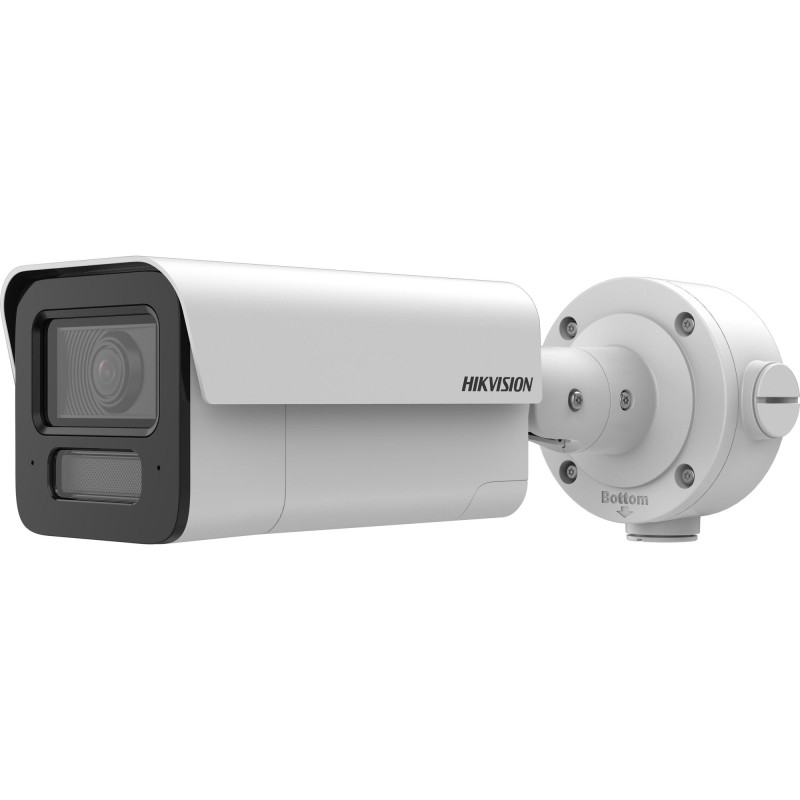

Hikvision Bullet iDS-2CD5T47G2 / V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter 2.0, Guanlan AI, Perimeter Guard)
Product reference: 26-6936422148959
  • Guanlan AI's large-scale artificial intelligence model for perimeter protection reduces false alarms by up to 90%
  • High quality image with 4 MP resolution
  • Excellent low-light performance with DarkFighter2.0 technology
  • Efficient H.265+ compression technology saves bandwidth and storage
  • VCA analytics operates up to 60 m at night, up to 80 m during the day
  • The AI Encoding feature reduces video size by up to 50% while maintaining image quality.
  • Water and dust resistance (IP67), shock resistance (IK10) and anti-corrosion coating
  • Integrated camera lens heater for clear images in snowy weather
  • The kit includes a base
  • EIS - image stabilization function to eliminate camera vibrations and shake
Hikvision Bullet iDS-2CD5T47G2 / V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter 2.0, Guanlan AI, Perimeter Guard)

Hikvision Bullet iDS-2CD5T47G2 / V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter 2.0, Guanlan AI, Perimeter Guard)

Product reference: 26-6936422148959
  • Guanlan AI's large-scale artificial intelligence model for perimeter protection reduces false alarms by up to 90%
  • High quality image with 4 MP resolution
  • Excellent low-light performance with DarkFighter2.0 technology
  • Efficient H.265+ compression technology saves bandwidth and storage
  • VCA analytics operates up to 60 m at night, up to 80 m during the day
  • The AI Encoding feature reduces video size by up to 50% while maintaining image quality.
  • Water and dust resistance (IP67), shock resistance (IK10) and anti-corrosion coating
  • Integrated camera lens heater for clear images in snowy weather
  • The kit includes a base
  • EIS - image stabilization function to eliminate camera vibrations and shake
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
386,47 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Corrosion protection -Y: NEMA 4X (NEMA 250-2018)
  • EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
  • Sound
  • Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16) to 64 Kbps (AAC-LC)
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio sampling frequency 8 kHz/16 kHz/32 kHz/48 kHz
  • Audio type Mono sound
  • Removing extraneous sounds Yes
  • Camera
  • DayNight IR cut filter,Blue glass module (less ghost phenomenon)
  • Image sensor 1/1.8" Progressive Scan CMOS
  • Highest resolution 2688 × 1520
  • Minimal lighting Color: 0.0014 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,0 Lux with light
  • Shutter speed 1 s to 1/100,000 s
  • DOROUS
  • DOROUS 2.8 mm, D (Detect): 61 m, O (Observe): 24 m, R (Recognize): 12 m, I (Identify): 6 m4 mm, D (Detect): 75 m, O (Observe): 30 m, R (Recognize): 15 m, I (Identify): 7 m The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
  • Smart features
  • Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection
  • Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range:4 mm models: 5 m to 80 m (daytime), 5 m to 60 m (nighttime)2.8 mm models: 3 m to 70 m (daytime), 3 m to 50 m (nighttime)*Result based on standard setup and test environment
  • Features
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error)
  • Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
  • Smart features scene change detection,audio exception detection,defocus detection,loitering detection,people gathering detection,fast moving detection,parking detection,unattended baggage detection,object removal detection
  • General data
  • Dew removal Yes
  • Dimensions 326.3 mm × 113.0 mm × 88.5 mm (12.85" × 4.45" × 3.48")
  • Main functions Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
  • Heater Yes
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Material Aluminum alloy body
  • Package size 386 mm × 156 mm × 155 mm (15.3" × 6.2" × 6.2")
  • Power two-core terminal block,12 VDC ± 20%, 1.4 A, max. 16.8 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17.1 W
  • Working conditions With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
  • Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Weight Approx. 1370 g (3 lb.)
  • Weight with packaging Approx. 2084 g (4.59 lb.)
  • Lighting
  • IR wavelength 850 nm
  • Smart additional lighting Yes
  • Additional lighting range Up to 80 m
  • Additional lighting type IR,White Light
  • Photo
  • Day/night switch Day, Night, Auto, Schedule, Alarm Trigger
  • Photo beautification BLC,HLC,3D DNA, Distortion Correction, Defog
  • Photo parameters converter Yes
  • Image settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
  • Image stabilization EIS
  • Photo overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
  • Privacy mask 8 programmable polygon privacy masks
  • SNR ≥ 52 dB
  • Wide Dynamic Range (WDR) 120dB
  • Interface
  • Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Sound 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
  • Built-in microphone 1 built-in microphone
  • Built-in speaker 1 built-in speaker, Max. power consumption: 1.5 W
  • Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
  • Output power 12 VDC, max. 100 mA
  • RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reboot button Yes
  • Lens
  • Aperture F1.0
  • Focal Length FOV 2.8 mm, horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127°4 mm, horizontal FOV 89°, vertical FOV 46°, diagonal FOV 108°
  • Iris type Fixed
  • Network
  • API ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
  • Customer iVMS-4200,Hik-Connect,Hik-Central
  • Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
  • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, AES128/256
  • Live video viewing Up to 20 channels
  • User/port Up to 32 users3 user levels: administrator, operator, and user
  • Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Image
  • Bit rate control CBR,VBR
  • H.264 type Baseline Profile, Main Profile, High Profile
  • H.265 type Main Profile
  • Main stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Region of Interest (ROI) 8 fixed regions for each stream
  • Scalable Video Coding (SVC) H.264 and H.265 encoding
  • Secondary flow 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
  • Third stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Video bit rate 32 Kbps to 8 Mbps
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

ManufacturerHikvision
Manufacturer codeKIP2CD5T47G2VXHSYF28
Weight1.37 kg
