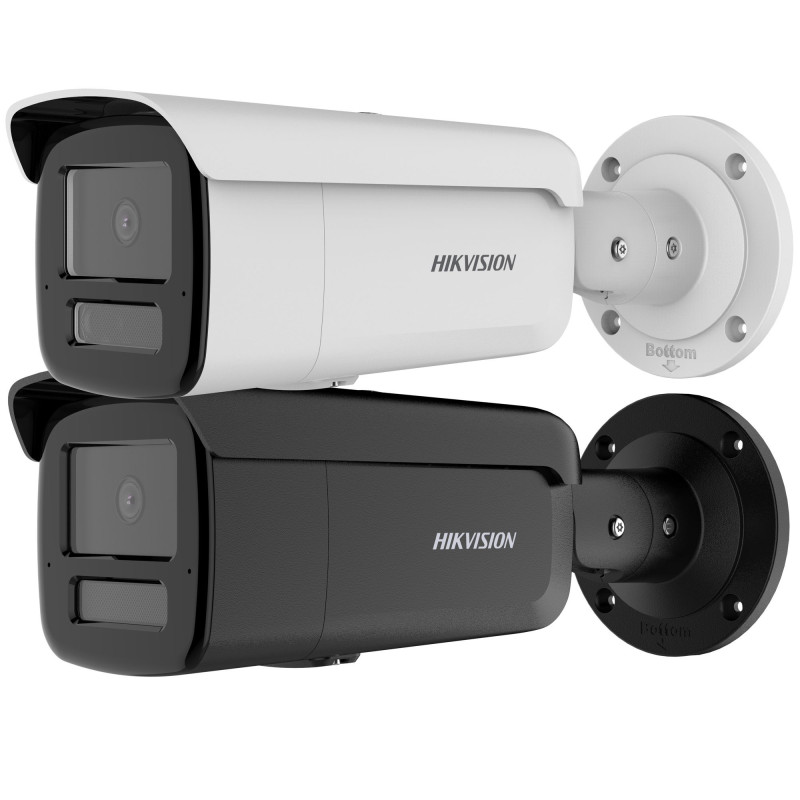

Hikvision Bullet DS-2CD2T63G2-4LI2U F2.8 (white, 6MP, AcuSense, IR+LED 80 m)
Product reference:
26-6942160463049
- High quality image with 6 MP resolution
- Acusense: Human and Vehicle Recognition Based on Deep Learning
- Smart hybrid light: integrated IR and white light, 4 additional lighting modes
- -2U: Integrated dual microphone array for real-time high-quality audio protection
- Clear image in strong backlight thanks to true 120 dB WDR technology
- Efficient H.265+ video compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
Hikvision Bullet DS-2CD2T63G2-4LI2U F2.8 (white, 6MP, AcuSense, IR+LED 80 m)
Product reference:
26-6942160463049
- High quality image with 6 MP resolution
- Acusense: Human and Vehicle Recognition Based on Deep Learning
- Smart hybrid light: integrated IR and white light, 4 additional lighting modes
- -2U: Integrated dual microphone array for real-time high-quality audio protection
- Clear image in strong backlight thanks to true 120 dB WDR technology
- Efficient H.265+ video compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General
- Image sensor 1/2.4" Progressive Scan CMOS
- Highest resolution 3200 × 1800
- Minimal lighting Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
- Shutter speed 1/3 s to 1/100,000 s
- DayNight IR cut filter
- Changing the angle Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
- Lens type Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
- Focal Length FOV 2.8 mm: horizontal 105°, vertical 55°, diagonal 127°; 4 mm: horizontal 78°, vertical 38°, diagonal 96°; 6 mm: horizontal 51°, vertical 26°, diagonal 59°
- Lens mount M12
- Iris type Fixed
- Aperture F1.6
- Depth of field 2.8 mm: 1.8 m to ∞; 4 mm: 3.1 m to ∞; 6 mm: 6.4 m to ∞
- DOROUS 2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m; 4 mm: D 115 m, O 45 m, R 23 m, I 11 m; 6 mm: D 164 m, O 65 m, R 32 m, I 16 m
- Additional lighting type IR, White Light
- Additional lighting range -2LI/-2LI2U: up to 60 m; -4LI/-4LI2U: up to 80 years old
- Smart additional lighting Yes
- IR wavelength 850 nm
- Main stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60Hz: 30fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
- Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60Hz: 30fps (1280×720, 640×480, 640×360)
- Third stream 50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
- Image compression Main: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline, Main, High Profile
- H.265 type Main Profile
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Bit rate control CBR, VBR
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Target cropping Yes
- Audio compression -2LI2U/-4LI2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio bit rate -2LI2U/-4LI2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32-160 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
- Audio sampling frequency -2LI2U/-4LI2U: 8 kHz/16 kHz/32 kHz/48 kHz
- Removing extraneous sounds -2LI2U/-4LI2U: Yes
- Network protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSockets, WebSockets
- Live video viewing Up to 6 channels
- API ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
- Security Password protection, complex password, HTTPS encryption, IP address filter, security audit log, basic/digest authentication, TLS 1.1/1.2/1.3, WSSE authentication
- User/port Up to 32 users; administrator, operator, user
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); memory card encryption and health detection supported with high-end Hikvision card
- Browser IE 11 (plug-in required); plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Photo parameters converter Yes
- Day/night switch Day, Night, Auto, Schedule
- Image settings Rotate mode
- Wide Dynamic Range (WDR) 120dB
- SNR ≥ 52 dB
- Photo beautification BLC, HLC, 3D DNA
- Privacy mask 8 programmable polygon privacy masks
- Web interface 1 RJ45 10/100 Mbps self-adaptive Ethernet port
- Internal memory microSD/microSDHC/microSDXC up to 512 GB
- Reboot button Yes
- Built-in microphone -2U: Arrayed dual-microphone
- Main functions Motion detection (human/vehicle), video tampering, exception
- Smart features Face detection
- Interface FTP/NAS/memory card upload, notify center, email, trigger recording/capture
- Perimeter security Line crossing, intrusion (human/vehicle)
- Power -2LI/-2LI2U: 12 VDC ±25%, 0.66 A, max. 8.0 W; PoE 802.3af Class 3, max. 9.5 W; -4LI/-4LI2U: 12 VDC ±25%, 0.87 A, max. 10.5 W; PoE 802.3af Class 3, max. 12 W
- Material Metal
- Dimensions 88.7 mm × 93.1 mm × 286.7 mm (3.5" × 3.7" × 11.3")
- Package size 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight Approx. 1150 g (2.5 lb.)
- Weight with packaging Approx. 1640 g (3.6 lb.)
- Storage conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Working conditions -30 °C to 60 °C, humidity ≤95% (non-condensing)
- Language 33 languages including English, German, French, Spanish, Russian, Chinese, Japanese, Korean
- Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
- EMC Approval CE-EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3; RCM; IC; KC
- Security IEC/EN 62368-1; BIS IS 13252; LOA IEC/EN 60950-1
- Environmental protection CE-RoHS, WEEE, REACH
- Protection IP67
| Manufacturer | Hikvision |
| Manufacturer code | KIPDS2CD2T63G24L2U28 |
| Weight | 1.12 kg |
