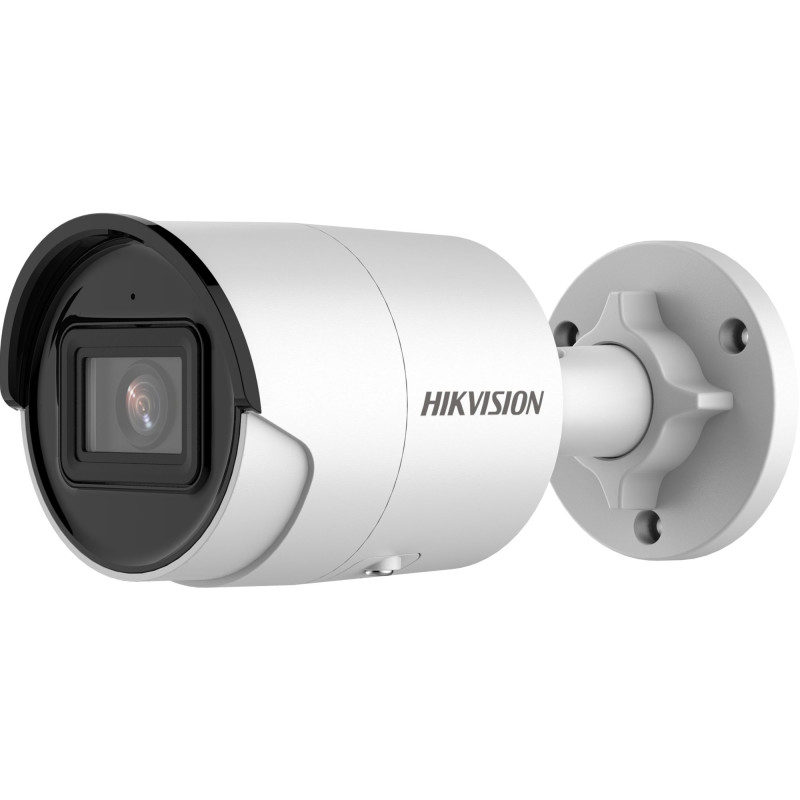

Hikvision bullet DS-2CD2086G2-IU F4 (white, 8 MP, 40 IR, AcuSense)
Product reference:
26-6941264088660
- MP (MegaPixel): 8 MP
- Lens: 4 mm, horizontal FOV: 87°
- Technology: AcuSense
- Built-in microphone: Yes
- Built-in speaker: Yes
- Night illumination: 40 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Security level: IP67
- Image compression: H.265+
- WiFi: No
- Holder/base (optional): DS-1280ZJ-XS
- Outdoor/Indoor: Outdoor
Hikvision bullet DS-2CD2086G2-IU F4 (white, 8 MP, 40 IR, AcuSense)
Product reference:
26-6941264088660
- MP (MegaPixel): 8 MP
- Lens: 4 mm, horizontal FOV: 87°
- Technology: AcuSense
- Built-in microphone: Yes
- Built-in speaker: Yes
- Night illumination: 40 m. IR
- microSD slot: Yes, 256GB
- Operating conditions: -30 °C to 60 °C
- Security level: IP67
- Image compression: H.265+
- WiFi: No
- Holder/base (optional): DS-1280ZJ-XS
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
| Name | Description |
| Sensor | 1/1.8" Progressive Scan CMOS |
| Min. lighting | Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter speed | 1/3 s to 1/100,000 s |
| Exposure | Yes |
| P/N | Yes |
| WDR | 120dB |
| Day Night | ICR Cut |
| Angle control | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| Power-off memory | Yes |
| Lens and FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° 4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59° |
| Aperture | F1.6 |
| Installation | M16 |
| IR distance | 30 years |
| Wavelength | 850nm |
| Additional smart lighting | Yes |
| Max resolution | 3840 × 2160 |
| Main stream | 50Hz: 20fps (3840 × 2160, 3072 × 1728) 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) * When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams. |
| Secondary flow | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Tertiary flow | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Image compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video bit rate | 32 Kbps to 16 Mbps |
| H.264 type | BaseLine Profile, Main Profile, High Profile |
| H.265 type | Main Profile |
| Broadcast type | Main stream/sub-stream/third stream |
| SVC | Yes |
| ROI | 1 fixed region for each stream |
| Ambient noise filtering | -U: Yes |
| Audio processing speed | -U: 8 kHz,16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
| Audio compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio bit rate | -U: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
| Audio type | -U: Mono sound |
| Broadcasting | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Smooth streaming | Yes |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Protection | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2 |
| Network storage | microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client software | iVMS-4200, Hik-Connect, Hik-Central |
| Browser | Plug-in required live view: IE 8+,Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Day/Night switch | Day/Night/Auto/Schedule |
| Image enhancement | BLC, HLC, 3D DNA |
| Image settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by clcient software or web browser |
| Sound | Built-in microphone |
| Internal storage | Built-in micro SD, up to 256 GB |
| Reboot button | Yes |
| Communication interfaces | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Main events | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| Additional protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (HumanVehicle classification) |
| Client software language | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Basic functions | Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat |
| Rebooting the software | Yes |
| Linking method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
| Storage operating conditions | -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing) |
| Start and operating conditions | -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing) |
| Power supply | 12 VDC ± 25%; PoE: (802.3af, class 3) |
| Consumption and current | 12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W |
| Power interface | Φ5.5 mm coaxial power plug |
| Material | Metal |
| Camera dimensions | Φ70 ×161.7 mm (Φ2.76" × 6.37") |
| Package dimensions | 216 × 121 × 118 mm (8.5" × 4.8" × 4.6") |
| Camera weight | 500 g (1.1 lb.) |
| Weight with packaging | 710 g (1.6 lb.) |
| Protection | -I model: Ingress protection: IP67 (IEC 60529-2013) -IU model: Ingress protection: IP66 (IEC 60529-2013) |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Security | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Environmental protection | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Manufacturer | Hikvision |
| Manufacturer code | KIP2CD2086G2-IU-F4 |
| Weight | 0.505 kg |
