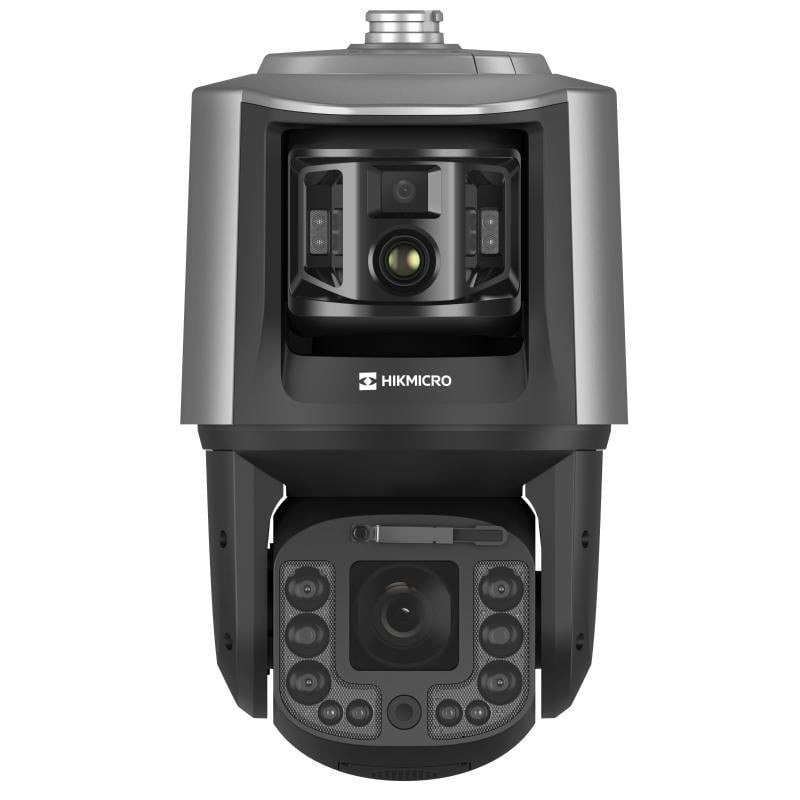

HikMicro TandemVu HM-TX2840-10 / G0 / T1 F6-240mm (4 MP, 40x, 6-240 mm)

Product reference: 26-6974004645083

HikMicro TandemVu HM-TX2840-10 / G0 / T1 F6-240mm (4 MP, 40x, 6-240 mm)

Product reference: 26-6974004645083

You have 3 products in compare list, please remove someone and try again

Add to compare

1 408,74 €

2 347,89 €

Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Bullet Camera- General
Alarm input 2-ch inputs (0-5 VDC)
Alarm output 2-ch relay outputs, alarm response actions configurable
Audio compression G.711ulaw/G.711alaw/G.726/MP2L2/AAC
Audio input 1-ch, Line input: 2 - 2.4 V [pp], output impedance: 1 KΩ ± 10%
Audio output 1-ch, Linear Level; Impedance: 600 Ω
Communication interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface.1, RS-485 interface1, BNC 1.0 V [p-p]/75 Ω video output
Main stream Thermal:25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60Hz: 30 fps (2688 × 1520, 1920×1080, 1280×720)
Secondary flow Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)Optical:50 Hz: 25 fps (704 × 576, 352 × 288)60 Hz: 30 fps (704 × 480, 352 × 240)
Image compression Main Stream: H.265/H.264Sub-Stream: H.265/H.264/MJPEG

General information
Dimensions 458.7mm x 266.6mm x 290mm
Energy consumption Max. 90W
Power source DC36V,AC24V,PoE++
Protection level IP67 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Weight 13.5kg
Operating temperature/humidity -40 °C to +70 °C (- 40 °F to 149 °F), Humidity: 90% or less

Network
API ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface, ONVIF (Profile S, Profile G)
Customer iVMS-4200, Hik-Connect
Internal memory MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Safety User authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Live video viewing Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Browser Live view (plug-in allowed) : Internet Explorer 11Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

Optical Speed Dome
Aperture range F1.3-F4.6
Digital zoom ×2, ×4, ×8, x16
Field of view 59°(H)*34.16°(V)-1.77°(H)*1.0°(V)
Focal length 6 - 240mm, 40 × optical zoom
Focus mode Auto/Semi-auto/Manual
Photo beautification 3D DNA, EIS, HLC/BLC
Image sensor 1/1.8'' progressive scan CMOS
Main stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Minimal lighting Color: 0.0003 Lux @(F1.3, AGC ON), 0 Lux with light on
Optical fog removal Yes
Pan speed configurable from 1° to 160°/s
Resolution 2688x1520
Secondary flow 60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
Tilt speed configurable from 1°/s to 90°/s
Image compression Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEG
WDR 120dB

Smart function
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
