Hidden IP camera STARLIGHT 2MP

Hidden IP camera STARLIGHT 2MP

Short description:
Mini hidden IP camera STARLIGHT 2 MP, 1/3" inch Day/Night, STARLIGHT CMOS sensor, 2MP (1920×1080) 1~25fps, Lens: 2.8mm viewing angle 95°, IVS, ROI; motion detection. HLC, BLC / WDR(120dB), 3D-DNR: noise reduction technology, H.265/H.264, supports ONVIF Profile S, CGI standard. Model: IPC-HUM4231S-L5 2.8mm.
Brief technical characteristics:
• IVS functions: line crossing, perimeter intrusion, image change, missing object detection, appearing object detection, face detection.
• 1/3" inch 2MP STARLIGHT CMOS sensor.
• 2,8mm fixed lens (lens viewing angle about 95°) pinhole lens.
• Video compression H.265+/H.264+/H.265/H.264/H.264B/MJPEG(Sub Stream).
• LINUX operating system.
• Scanning system: Progressive.
• ROM 128MB, RAM 128MB.
• Fixed aperture (fixed iris).
• Image rotation 0°/90°/180°/270° (Supports 90°/270° with 1080P and lower resolution).
• Remote control and live monitoring via Ethernet (WEB): IE, Chrome, Firefox.
• Free software for camera control (DSS / PSS / SMART PSS), image preview and for archiving, using a computer network or the Internet.
• Free program that allows the user to monitor and view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8,KINDLE FIRE, BLACKBERY, ANDROID, IPAD, GALAXY TAB, etc..
• IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, Kentima Solutions AB, LuxRiot AH Software House, Inc., Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others.
• Available video resolution options: 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 ×288/352 × 240).
• Compression rate: main stream: 1920 × 1080 (1~25fps) additional stream: 704 × 576 (1~25fps) / 704 × 480 (1~30fps).
• Stream speed: H.265: 3kbps~6144Kbps; H.264: 3kbps~6144Kbps.
• Support for two streams simultaneously.
• D/N: switches from color operation to black and white at a certain light intensity - electronic Day/Night function.
• Min. illumination: 0.01Lux/F1.6 (Color, 30IRE), 0.001Lux/F1.6 (B/W, 30IRE).
• 3D-DNR: noise reduction technology.
• Microphone input 1 (for connecting an external microphone).
• Privacy zones: 4.
• Audio input 1 channel RCA.
• Audio output 1 channel RCA.
• ROI function (4 zones).
• Motion detection (Motion Detection): 4 channels
• Alarm events: network disconnection; IP conflict; unauthorized access; motion detection; video tampering; trikdis; intrusion; sound detection; voltage detection; scene change.
• S/N ratio gt; 56 dB.
• Electronic delay: Auto/Manual, 1/3~1/100000s.
• White balance: Auto/Manual, CBR / VBR / BLC / HLC / WDR(120dB).
• 10/100 Mb/s network port (Ethernet -RJ45).
• Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour, ONVIF (Profile S/Profile T); CGI; P2P; Milestone.
• Recording: FTP, SFTP, or NAS servers.
• Remote control: Monitoring, EPTZ zoom zoom, system settings, File download, Preview, software update.
• Maximum simultaneous user connections: 20 (48M flow).
• Operating temperature: -40°C~+60°C, 0%~95%.
• Power supply: DC 12V.
• Power: base 1.2 W; max. 1.56 W.

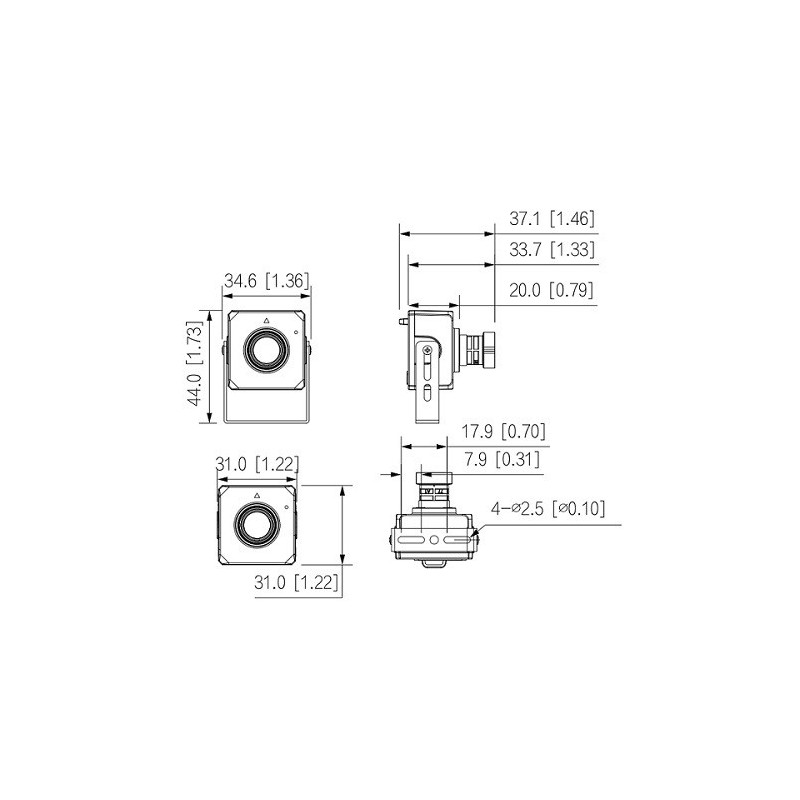

• Dimensions: 31mm × 31mm × 37.1mm.
• Housing material: metal.
• Weight: 81 g.
