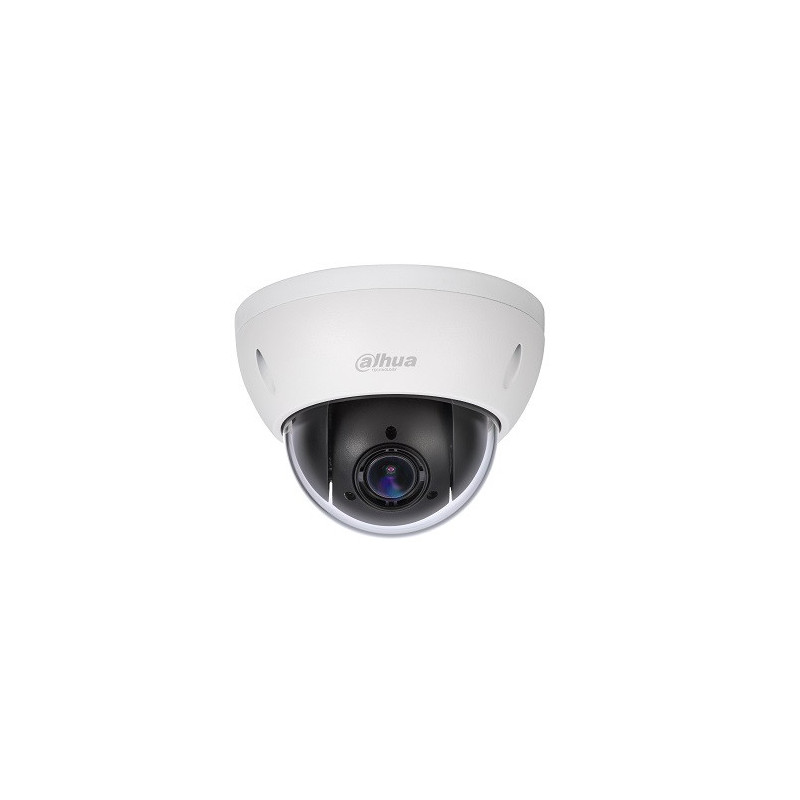

HD-CVI PTZ controlled camera 2MP, x4 zoom, 2.7mm~(Wide) 11mm(Tele), WDR, K10

HD-CVI PTZ controlled camera 2MP, x4 zoom, 2.7mm~(plotis) 11mm(Tele), WDR, K10

Short description:
HD-CVI FULL HD Starlight controlled camera, 2.0 megapixels 1080P(1920×1080), Day/Night, 1/2.8" CMOS Starvis sensor, 2M(1~25kps), Zoom: x4 optical x16 digital, BLC / HLC / 3DNR /WDR; moisture resistant IP 66 (for outdoor conditions), shock resistant IK10, HD-CVI technology allows HD image transmission via coaxial cable without loss of quality - max. distance up to 500m, OSD menu. Model: SD22204GC-LB.
Brief technical characteristics:
• HD-CVI technology allows FULL HD image transmission via coaxial cable without loss of quality - max. distance to 500m.
• 2.0 megapixel high-speed controllable (PTZ) IP Day/Night camera, zoom 4x optical.
• 1/2.8" 2MP SONY STARVIS™ CMOS sensor.
• Zoom: x4 Optical, x16 Digital.
• Scanning system: progressive.
• ROM 16MB, RAM 256MB.
• Fixed aperture (fixed iris).
• RS-485 connector: 1 (data transfer rate 1200bps-9600bps).
• Number of effective pixels 1920(H) x 1080(V).
• Image resolution options: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480).
• Compression rate: 1080P@25fps, 720P@25/30/50fps.
• Angular viewing angle: 112.5° (Width) ~ 30°(Tele).
• Focal length: 2.7mm~(plotis) 11mm(Tele), F1.6.
• Pan: 0° ~ 355° infinite; Tilt: 0° ~ 90°, auto flip 180°.
• Manual control speed: Pan: 0.1° ~100°/s. Tilt: 0.1° ~60°/s.
• Preset speed: Pan: 100°/s. Tilt: 6°/s.
• Focus: Auto / Manual / Semi-automatic.
• D/N: switches from color to black and white at a certain light intensity.
• Min. illumination: Day: 0.05Lux@F1.6 Night: 0.005Lux@F1.6
• Electronic shutter: 1/3s~1/100000s.
• Mechanical IR-cut filter for Day Night function.
• BLC / HLC / WDR (120dB).
• 2D/3D DNR: noise reduction technology.
• Preset: 300 - SD Pelco-P/D (Label, camera settings).
• Tours 8 (up to 32 presets/tour).
• Other functions: Auto "rollover", Auto Parking, Action memory after power recovery.
• PTZ and Lens status reset after reboot.
• Moisture resistant IP66.
• Shock resistant IK10.
• TVS 4000V lightning protection; surge protection.
• Operating temperature: -30°C ~ +60°C.
• Humidity: 0%~95%RH.
• Power supply: DC 12V/1.5A.
• Power: 5W (6Wsu PTZ).
• Dimensions: 122 (mm) x 89 (mm).
• Weight: 0.6kg.
Compatible mounts:
• PFA106.
• PFA151.
• PFA120.
• PFA152-E.
• PFB203W.
• PFA150.
• PFB220C.
• PFB305W.
