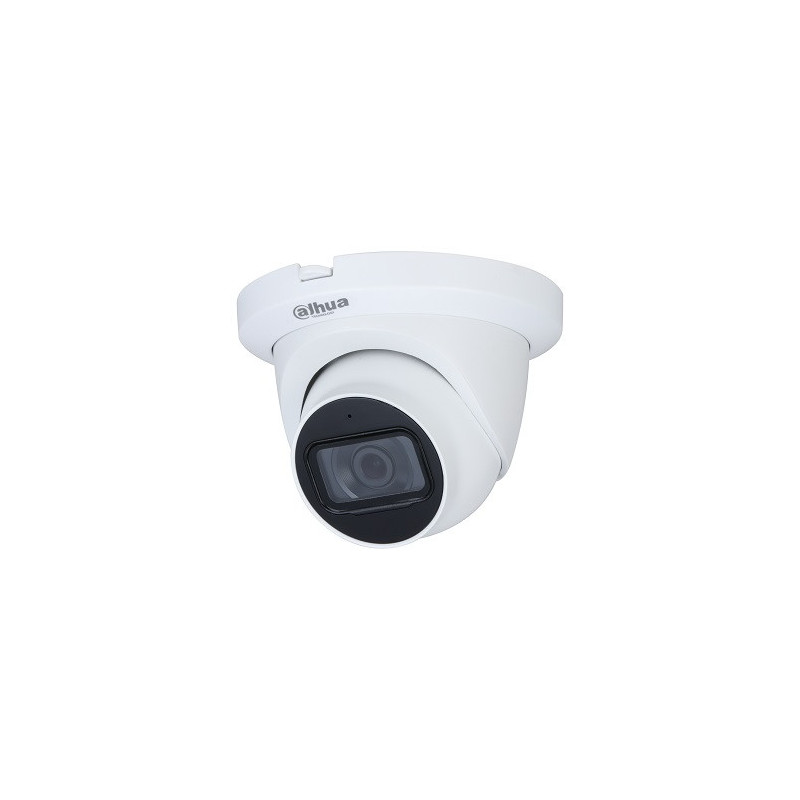

HD-CVI for STARLIGHT dome 2MP with LXIR up to 30m, 3.6mm obj., 86°, WDR, with microphone

HD-CVI for STARLIGHT dome 2MP with LXIR up to 30m, 3.6mm obj., 86°, WDR, with microphone

Short description:HD-CVI, TVI, AHD, CVBS 2MP dome camera STARLIGHT with integrated microphone, LXIR illumination up to 30m. (Smart IR) Day/Night, 1/2.8' inch 2MP CMOS sensor, 2MP (1920×1080) 25fps, 3.6mm/ F1.6 fixed lens (lens viewing angle 86°), HD-CVI technology allows HD image transmission via coaxial cable without loss of quality, 3-axis adjustment, 3D NR, BLC, 130dB WDR, IP67, PRO series, model: DH-HAC-HAC-HDW2241TLMQ-A, 3.6mm.Brief technical characteristics:• HD-CVI technology allows FULL HD image transmission over coaxial cable without loss of quality (max. distance up to 800m, over UTP cable 300m). • Integrated microphone (microphone transmission over the same coaxial cable). • FULL HD 2 megapixel HD-CVI Day/Night camera (HDCI - High Definition Composite Video Interface). • TVI, AHD, CVBS switching on the camera cable. • 1/2.8' 2 MP STARLIGHT CMOS sensor. • 3.6mm/F1.6 fixed lens (lens viewing angle 86°). • Number of effective pixels 1920(H)×1080(V). • Available image resolution options: 1080p(1920 × 1080); 960H(960 × 576 / 960 × 48). • Compression rate: 1080P(1920×1080) 25 fps. • 2pcs. high-power IR LEDs with reflector (Smart IR). • Illumination distance 30m. • D/N: switches from color operation to black and white at a certain light intensity, mechanical D/N filter. • Min. illumination: day: 0.001Lux/F1.6, 30IRE, 0Lux IR on. • S/N ratio > 65dB. • Scanning system: Progressive. • Electronic shutter: Auto/Manual, 1/25s~1/100,000s. • White balance: Auto/Manual HLC, BLC, 130dB WDR. • 3D-DNR: noise reduction technology. • Video output: 1 BNC HDCVI (high definition video output). • Video format PAL, NTSC. • IP67 waterproof. • 3-axis mechanism for camera adjustment (Pan: 0°~360°/ Tilt: 0°~78°/ Rotation: 0°~360°). • Privacy zones: 8. • Fixed iris. • Operating temperature: -40°C~+60°C, at 0%~95% humidity. • Power supply: 12V DC ±30%. • Consumption: <3.1 W. • Dimensions: 109.9mm × 88.1mm. • Weight: 0.34 kg.Compatible mounts:PFB220C. PFA152-E. PFA13G. PFA109.
