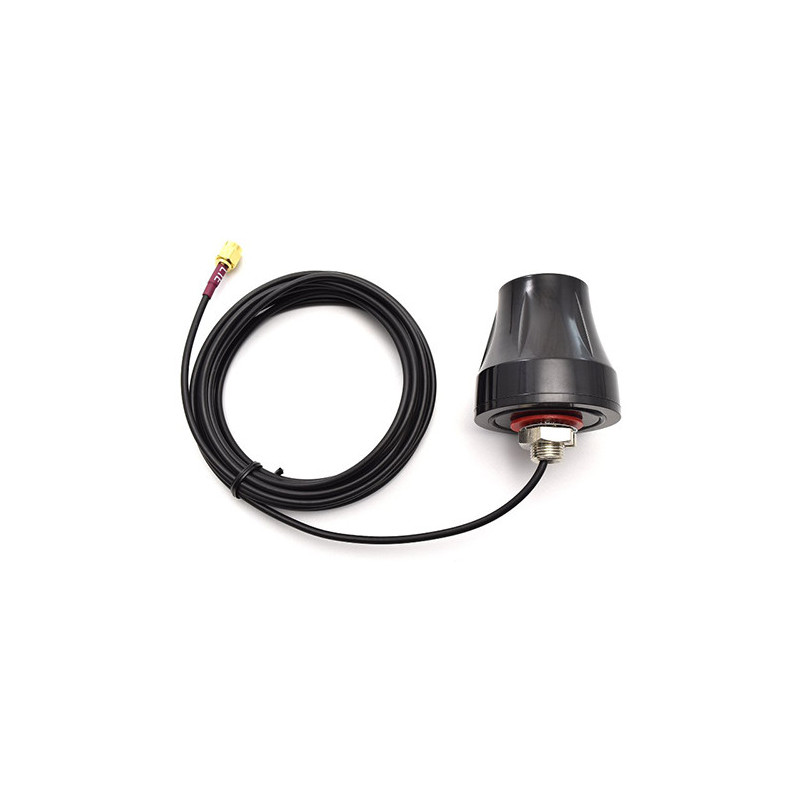

GSM Antenna, 824~960 / 1710~2170MHz, 2dBi, 58mm
Product reference: 14-9990000990832
Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, 58mm. With 1m cable and mounting screw. Environmentally friendly, meets ROHS standards. Waterproof and dustproof antenna IP67 (protection class does not apply to the SMA connector of the cable).
GSM Antenna, 824~960 / 1710~2170MHz, 2dBi, 58mm

GSM Antenna, 824~960 / 1710~2170MHz, 2dBi, 58mm

Product reference: 14-9990000990832
Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, 58mm. With 1m cable and mounting screw. Environmentally friendly, meets ROHS standards. Waterproof and dustproof antenna IP67 (protection class does not apply to the SMA connector of the cable).
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
23,11 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

GSM Antenna, 824~960/1710~2170MHz, 2dBi, 58mm
Features:



  • Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, 58mm.

  • With 1m long cable and mounting screw.

  • Environmentally friendly, complies with ROHS standards.

  • Water and dust resistant antenna IP67 (safety class does not apply to the SMA connector of the cable).



Technical specification:



  • Frequency: 824~960/1710~2170MHz.

  • Gain: 2 dBi.

  • VSWR: lt;2.0.

  • Impedance: 50 ohms.

  • Connector: SMA-male.

  • Cable: RG174.

  • Cable length: 1m.

  • Antenna length: about 58 mm.

  • Fastening: with screw M12.

  • Antenna safety class: IP67.

  • Material: ABS.

  • Vertical polarization.

  • Color: black.

  • Operating temperature: -40°C~ +85°C.

  • Operating humidity: up to 95%RH.

  • Color: black.


Height58 mm
Length10 mm
Weight20 grams
Width10 mm
