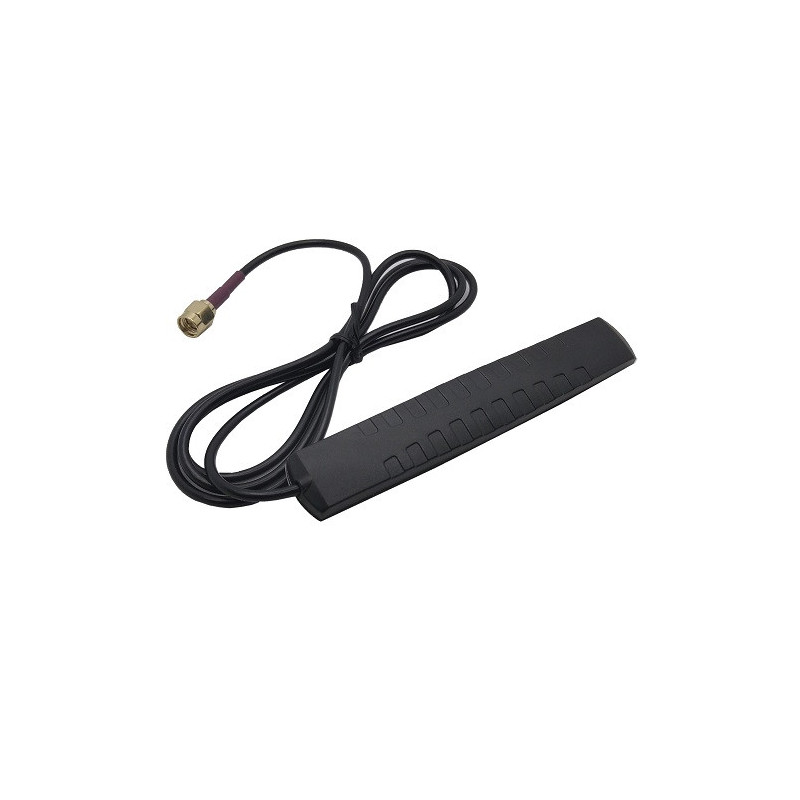

GSM antenna, 824~960 / 1710~2170MHz, 2dBi, 11cm
Product reference: 14-9990000990849
Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, about 11cm. With 1m cable, fixed with 3M adhesive tape. Environmentally friendly, complies with ROHS standards.
GSM antenna, 824~960 / 1710~2170MHz, 2dBi, 11cm

GSM antenna, 824~960 / 1710~2170MHz, 2dBi, 11cm

Product reference: 14-9990000990849
Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, about 11cm. With 1m cable, fixed with 3M adhesive tape. Environmentally friendly, complies with ROHS standards.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
18,17 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

GSM antenna, 824~960/1710~2170MHz, 2dBi, 11cm
Features:



  • Omnidirectional GSM antenna, 824~960/1710~2170MHz, 2dBi, about 11cm.

  • With a 1m long cable, attached with 3M adhesive tape.

  • Environmentally friendly, complies with ROHS standards.



Technical specification:



  • Frequency: 824~960/1710~2170MHz.

  • Gain: 2 dBi.

  • VSWR: 2.0.

  • Impedance: 50 ohms.

  • Connector: SMA-male.

  • Cable: RG174.

  • Cable length: 1m.

  • Fastening: 3M adhesive tape.

  • Case material: ABS.

  • Dimensions: 105x15.3x1 mm.

  • Vertical polarization.

  • Operating temperature: -40°C~ +85°C.

  • Operating humidity: up to 95%RH.

  • Color: black.


Height150mm
Length200mm
Weight100g
Width100mm
