GPS tracking device, LoRaWan network

GPS tracking device, LoRaWan network, Bluetooth, Wi-Fi.

Features:
It is a wireless smart, ultra-low power consumption LoRaWAN tracking device for indoor and outdoor use. Positioning via GPS, Bluetooth and WiFi, supports various operating modes, suitable for many tracking methods.
Ideal for optimizing logistics processes, asset management, warehouse and inventory scenarios, theft protection, livestock monitoring and more.
Technical data:

• LoRa protocol: LoRaWAN V1.0.3.


• LoRaWAN frequency: EU 868MHz.


• Transmission power in LoRa network: max. 20dBm.


• Sensitivity -137dBm @300bps


• Mode: OTAA/ABP.


• Detection distance: up to 6km.


• Bluetooth version: V4.2.


• Bluetooth transmission power: max. 8dBm.


• Detection distance via Bluetooth: up to 50m.


• Power supply: 6500 mAh (non-rechargeable battery 7800mAh).


• Operating current: lt;180mA.


• Standby current: lt;15uA.


• Material: ASA, PC.


• Operating temperature: from -20°C to +60°C.


• Safety class: IP67.

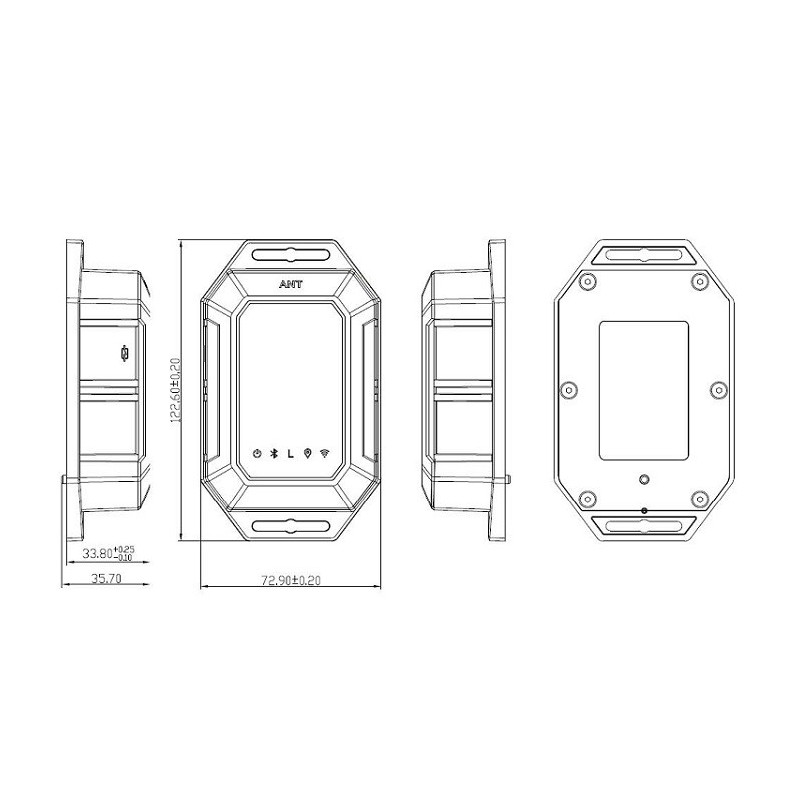

• Dimensions: 122 x 72 x 33 mm.

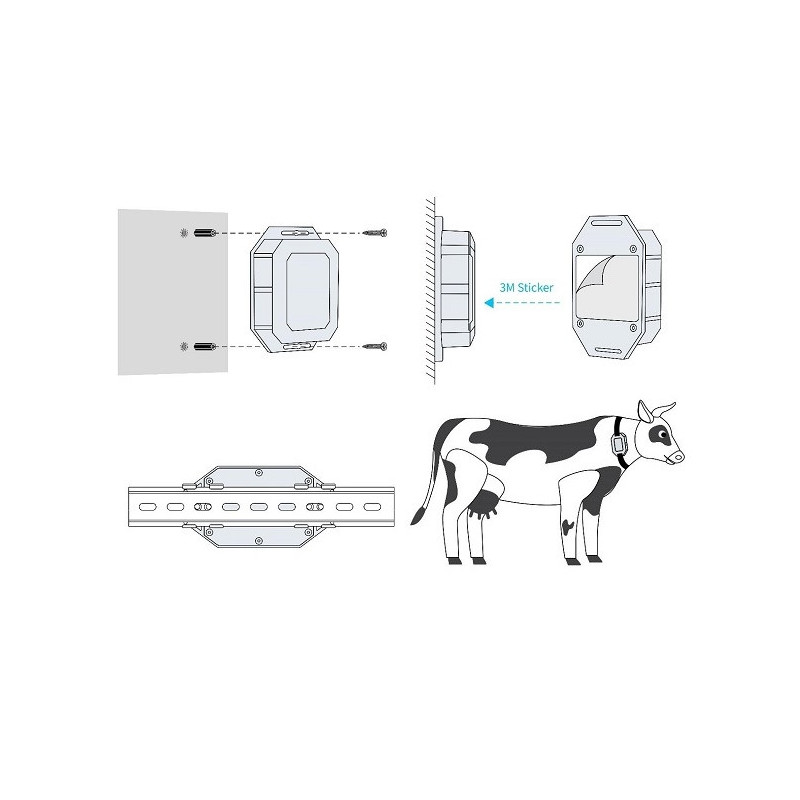

• Mounting: with screws / 3M adhesive tape / strap / on DIN rail.
