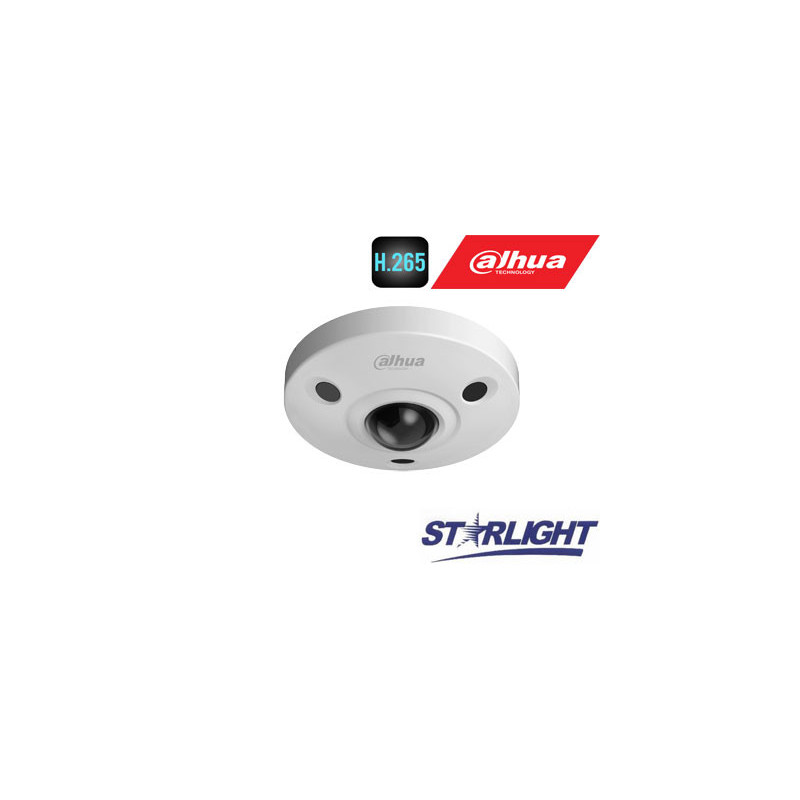

FishEye 360° 4K IP camera 12MP(4000x3000) STARLIGHT STARVIS sensor. 25fps, H.265, IR, IP67, IK10, PoE

FishEye 360° 4K IP kam.12MP(4000x3000) STARLIGHT STARVIS sensor. 25fps, H.265, IR, IP67, IK10, PoE

Short description:
360°/180° Fish-eye 4K IP camera, 12 megapixel Day/Night with IR illumination up to 10m., video compression H.265/H.264, 1/1.7" inch 12 MP STARLIGHT STARVIS CMOS sensor, max. resolution 12MP(4000x3000), max. compression rate 12M(1~25fps)/ 8M(1~25fps), integrated microphone, IP67 moisture-resistant, IK10 shock-resistant, AWB / AGC / BLC / HLC / DWDR, PoE, supports ONVIF (Profile S/Profile G), GB/T28181, CGI, PSIA, CGI, model: EBW81242P-AS-S2.
Brief technical characteristics:
• 6 different image modes: EPTZ function, 1O - one original Fish-eye image, 1P - One Panoramic image, 2P - Two panoramic images, 1P3R - One Panoramic and three regional images, 4R - four regional images.
• IVS functions: crossing the line, intrusion into the perimeter.
• Motion intensity registration (heat map).
• People counting function;
• 1.85mm / F2.8 lens (lens viewing angle when mounted on a wall 180°, on a ceiling 360°).
• 1/1.7" 12 MP STARLIGHT STARVIS CMOS sensor.
• Video compression: H.265, H.264, H.264H, H.264B, MJPEG.
• Audio compression: G.711a/G.711Mu/AAC/ G.726.
• Operating system LINUX.
• 3vnt. IR LEDs, illumination up to 10 meters, smart IR.
• Remote control and live monitoring via Ethernet (WEB):IE, chrome, firefox, safari.
• Free software for camera control (DSS / PSS / SMART PSS), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) suitable for phones:SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERRY, ANDROID, ANDROID PAD, IPAD, etc.;
• The IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, Kentima Solutions AB, LuxRiot AH Software House, Inc., Mirasys Ltd., SEEnergy Corp., Synology, Wavestore, etc..
• Number of effective pixels 4000 (H) x 3000 (V).
• Available image resolution options: 14000 × 3000, 2880 × 2880, 2880 × 2160, 2048 × 1536 (3M), 1280 × 960 (1.3M), (704 × 576/704 × 480) D1, (352 × 288/352 × 240) CIF.
• Compression rate: Main stream: 50Hz Main Stream (4000 × 3000@25fps), sub Stream (704 × 576@25fps), third Stream (704 × 576@25fps), 60Hz Stream (4000 × 3000@30fps), sub Stream (704 × 480@30fps), third Stream (704 × 480@30fps).
• Bit Rate (data rate): H264: 88Kbps-16384Kbps; H265: 52Kbps-16384Kbps.
• D/N: switches from color to black and white at a certain light intensity, IRC CUT filter (mechanical Day/Night filter).
• ULTRA 3D-DNR: noise reduction technology.
• Min. illumination: 0.001 Lux/F2.0 (Clolor, 1/3 s, 30 IRE), 0.01 Lux/F2.0 (Clolor, 1/30 s, 30 IRE), 0.01 Lux/F2.0 (IR on);
• S/N ratio gt; 50dB;
• Electronic shutter: Auto/Manual, 1/3~1/100000s.
• White balance: Auto/Manual, AWB / AGC / BLC / HLC / DWDR.
• Built-in microphone.
• Auxiliary microphone inputs: 1 channel;
• Audio input 1 channel (connected to the speaker).
• Video format: PAL;
• 10/100 Mb/s network socket (Ethernet -RJ45).
• Network protocols: HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP, ONVIF (Profile S/Profile G), GB/T28181, CGI.
• Recording: FTP or NAS servers;
• Remote control: Monitoring, EPTZ digital zoom zoom, system settings, File download, Preview, software update.
• Alarm input 2 channels.
• Alarm input 1 channel.
• Internal memory: SD memory port Max 256GB.
• Unlimited number of users (possibility to grant different rights to each user).
• Maximum simultaneous user login: 20.
• Operating temperature: -30°C~+60°C, 10%~90%;
• IP67 moisture resistant (perfect for outdoor conditions).
• IK10 shock resistant;
• Power supply: DC12V, PoE (802.3af).
• Power consumption 9.2W.
• Dimensions: 59.8 mm × 149.8 mm.
• Weight: 0.77Kg.
Compatible mounts
• PFA152-E.
• PFA132-E.
• PFA105.
• PFB302S.
• PFA110.
• PFA100.
• PFB300C.
