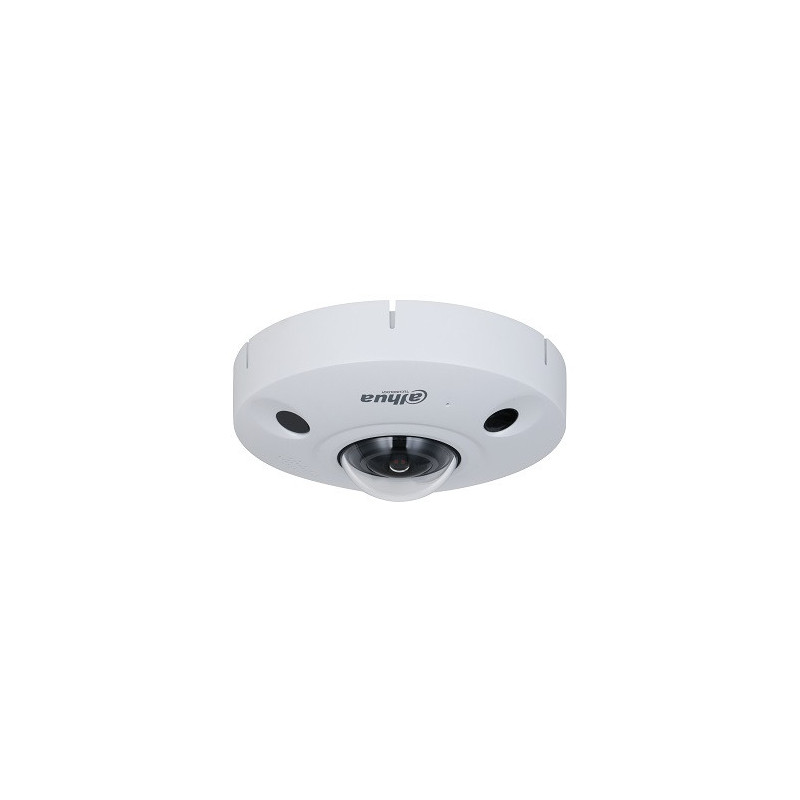

FishEye 360° 4K IP cam. 8MP(3280x2480) STARLIGHT CMOS sensor. 25fps, H.265, IR, IP67, IK10, PoE

FishEye 360° 4K IP cam. 8MP(3280x2480) STARLIGHT CMOS sensor. 25fps, H.265, IR, IP67, IK10, PoE

Short description:360°/180° Fish-eye 4K IP camera, 8 megapixel Day/Night with IR illumination up to 10m., video compression H.265/H.264, 1/1.7' inch 8 MP STARLIGHT CMOS sensor, max. resolution 8MP(3280x2480), Panomorph fixed lens 1.29mm / F2.2; max. compression speed 8M(1~25fps); built-in microphone, IP67 moisture resistant, IK10 shock resistant, BLC / HLC / DWDR, 256G SD; PoE, IVS, supports ONVIF (Profile S/Profile G/ Profile T), CGI, Milestone, Genetec, model: DH-IPC-EBW8842-AS-IVC.Brief technical characteristics:• 7 different image modes: EPTZ function, 1O - one original Fish-eye image, 1P - one panoramic image, 2P - two panoramic images, 1R - one regional image, 2R - two regional images, 4R - four regional images, 1O+3R - one original and three regional images. • Scanning system: progressive. • ROM 2GB, RAM 4GB. • IVS functions: line crossing, perimeter intrusion. • Motion intensity registration (heat map). • People counting function. • 1.29mm / F2.2 lens (lens viewing angle when mounted on a wall 180°, on a ceiling 360°), Panomorph RPL: ​​B9VVT. • 1/1.7' 8 MP STARLIGHT CMOS sensor. • Video compression: H.265, H.265+, H.264, H.264+, H.264H, MJPEG. • Audio compression: PCM, G.711a, G.711Mu, G.726, G.723. • 3pcs. IR LEDs, illumination up to 10 meters, smart IR. • Remote control and live monitoring via Ethernet (WEB): IE11, Chrome, Firefox, Edge. • Free software for camera control (DSS / DMSS / SMART PSS), video viewing and archiving, using a computer network or the Internet. • Free program that allows the user to monitor, view recordings from cameras from different objects, the program allows you to save the image to a computer. • Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) is suitable for phones: SYMBIAN, IPHONE, WINDOWS MOBILE, BLACKBERY, ANDROID, ANDROID PAD, IPAD, etc. • IP camera can be used with software from other companies (VMS Partners): ALNET SYSTEMS, AXXON, DiGiFORT, Exacq Technologies, Genetech, GeoVision, Lenel, milestone, NETvision, NUUO, OnSSI, QNAP, Surveon, UNISIGHT, Aimetis, Cathexis solutions, GEUTEBRUCK, Kentima Solutions AB, LuxRiot AH Software House, Inc., Mirasys Ltd., SEEnergy Corp., Synology, Wavestore and others. • Number of effective pixels 3280 (H) x 2480 (V). • Available image resolution options: 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240). • Compression rate: main stream: (3280x2480) 1~25fps; sub stream: (704x576) 1~25fps, sub third stream: (1280x960) 1~25fps. • Bit rate: H.264: 8Kbps~16384Kbps, H.265: 3Kbps~13891Kbps. • D/N: switches from color to black and white under certain light intensity, IRC CUT filter (mechanical Day/Night filter). • 3D-DNR: noise reduction technology. • ROI function (4 zones). • S/N ratio > 56dB. • Min. illumination: 0.01Lux/ F2.0, 30IRE. • Fixed iris. • 3pcs. IR LED, illumination up to 10m. • Electronic delay: Auto/Manual, 1/3s~1/100000s. • White balance: Auto/Manual, BLC / HLC / DWDR. • Built-in microphone. • Alarm input: 2 channels, 5mA 3V-5V DC. • Alarm output: 2 channels 1000mA 30V DC / 500mA 50V DC. • Audio input: 1 channel RCA. • Audio output: 1 channel RCA. • 10/100/1000 Mb/s network socket (Ethernet -RJ45). • Network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec; P2P. • Recording: FTP, SFTP or NAS servers. • Remote control: Monitoring, EPTZ digital zoom, system settings, File download, Preview, software update. • Internal memory: Micro SD memory port Max 256GB. • Unlimited number of users (possibility to assign different rights to each user). • Maximum simultaneous user connection: 20. • Operating temperature: -40°C~+55°C, <95%RH. • IP67 moisture resistant (perfect for outdoor conditions). • IK10 shock resistant. • Power supply: DC 12V, PoE (802.3at). • Power consumption: typical 6.5W (12V DC), 6.1W (PoE), maximum 13W (12V DC), 13.9W (PoE). • Dimensions: 59.8 mm × 149.8 mm. • Weight: 0.79Kg.• Compatible mounts:PFA100. PFA132-E. PFB302S. PFB300C.
