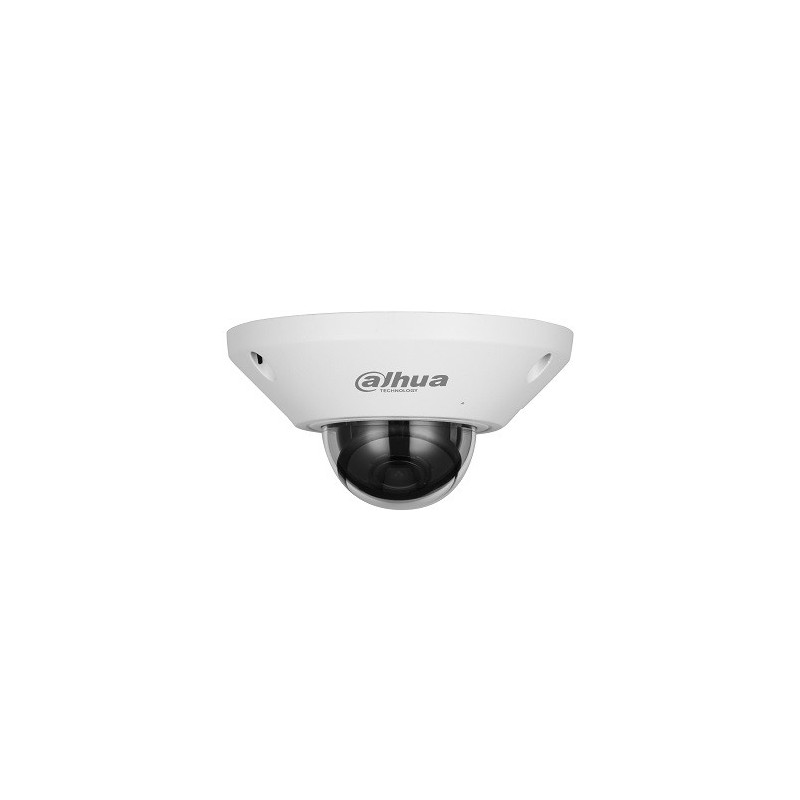

Fish-Eye IP camera EB5541-AS. 5MP 25fps. 360°, PoE, AI, IVS, WDR

Fish-Eye IP camera EB5541-AS. 5MP 25fps. 360°, PoE, AI, IVS, WDR

Short description:
IP camera AI Fish-Eye 5 MP. Built-in microphone. 1/2.7" inch CMOS sensor. 5MP(2592×1944) 1~25fps. Lens: 1.4mm viewing angle 180° panoramic view. H.265/ H.264H/ H.264B/ H.264, BLC / HLC / true WDR(120dB). 3D-DNR: noise reduction technology. PoE, IVS. SD memory port up to 256GB. IP67, IK10. Supports ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P standard. Model; DH-IPC-EB5541-AS.
Brief technical characteristics:
• IVS functions: crossing the line, intrusion into the perimeter.
• Motion intensity recording (heat map); people counting supported (up to 4 zones).
• AI SSA Scene Self-Adaptation.
• Image modes: Back-dewarp: one original Fish-eye image, One Panoramic image 360° + PTZ, Two panoramic images 180°, Fish-eye + 2PTZ; Fish-eye + 3PTZ; Fish-eye + 4PTZ; Panoramic image 360° + 6PTZ; Fish-eye + 8PTZ; Panoramic image 180°; Panoramic view 180° + 3PTZ; Panoramic view 180° + 4PTZ; Panoramic view 180° + 8PTZ; VR mode.
• 1/2.7 inch" 5 MP CMOS sensor.
• 1.4 mm fixed lens (lens viewing angle about 180° when mounted on the ceiling 360°).
• Video compression H.265; H.264; H.264H; H.264B; MJPEG.
• Operating system LINUX.
• Built-in microphone.
• Audio compression: PCM; G.711a; G.711Mu; G726.
• Remote control and live monitoring via Ethernet (WEB): IE8, IE9, IE11, Chrome, Firefox.
• Free software for camera control (SMART PSS), video viewing and archiving, using a computer network or the Internet.
• Free program that allows the user to monitor, view camera recordings from different objects, the program allows you to record the image to a computer.
• Free program for monitoring via mobile phone or handheld computer (DSS, DMSS mobile phone surveillance software) suitable for phones: IPHONE, WINDOWS MOBILE, WINDOWS PHONE 8, ANDROID, IPAD, GALAXY TAB, etc.
• The IP camera can be used with software from other companies.
• Number of effective pixels: 2592(H) x 1944(V).
• Available video resolutions: 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 ×1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352× 240).
• Compression rate: main stream: 5MP@(1~25fps), sub stream: (704 × 576) @1-25 fps/ (704 × 480)@ (1~25fps), third stream: (1280 × 720) @(1~25fps).
• Bit rate: H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps.
• D/N: switches from color to black and white at a certain light intensity - electronic Day/Night function.
• Min. illumination: 0.006 Lux @F2.0.
• 3D-DNR: noise reduction technology.
• S/N ratio > 56dB.
• Electronic delay: Auto/Manual, 1/3 s-1/100,000 s.
• White balance: Auto/Manual, BLC / WDR(120dB).
• Video format: PAL.
• 10/100 Mb/s network port (Ethernet RJ45).
• Security: Password protection, IP address filtering, HTTPS encrypted data transmission, user access log.
• Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P.
• Recording: FTP, SFTP or NAS servers.
• Privacy zones: 4.
• 3-axis mechanism for camera adjustment (Pan: 0°~355°; Tilt: 0°~55°; Rotation: 0°~360°).
• Remote control: Monitoring, PTZ digital zoom, system settings, file download, preview, software update.
• SD memory port up to 256GB.
• Max. simultaneous connections 20 users (total flow 64M).
• Unlimited number of users (possibility to assign different rights to each user).
• Alarm input: 1 channel (5mA 3V-5V DC).
• Alarm output: 1 channel (300mA 12V DC).
• Audio input: 1 channel RCA.
• Audio output: 1 channel RCA.
• Operating temperature: -30°C~+55°C, <95% RH.
• Suitable for indoor installation only.
• Housing material: metal.
• Power supply: DC12V, PoE (802.3af).
• Consumption: 3.7W (12V DC), 4.7W (PoE); max. 5.1W (12V DC), 6W (PoE).
• Dimensions: 62 mm × 110 mm.
• Weight: 387 g.
Compatible mounts:
• PFB203W.
• PFA152-E.
• PFB220C.
• PFA136.
• PFA106.
