EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit

EAN: 6941545643281

Specifications
Model CS- EB8-R200-1M8W4GA-CF
Came ra
Image Sensor 1/2.8 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter
Lens 4mm@ F1.2 Diagonal angle: 104°, Horizontal angle: 83° Vertical angle:44°
PT Angle Pan: 340°, Tilt: 75°
Day & Night IR-cut filter with auto switch
DNR 3D DNR
Night Vision 15 m
Video & Audio
Max Resolution 4K (3840 × 2160)
Frame Rate 15fps. Self-adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; Full HD; Hi-Def; Adaptive bit rate.
Audio Bit Rate Self-adaptive
Max. Bitrate 4 Mbps
Function
Smart Alarm AI-powered human shape detection, AI-powered vehicle shape detection, AI-powered wild animal detection
Two-Way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range 2.4 GHz~2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement 8 Mbps
4G LTE Frequency Bands
EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28, LTE TDD: B38/B40/B41 ,

LA： LTE TDD: B1/B2/B3/B4/B5/B7/B8/B12/B 17/B28/B66, LTE TDD: B38/B40

Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade IP65
Power Supply DC 5V/2A, (Adapter needs to be purchased separately)
Battery Capacity 10,400 mAh
Power Consumption Max.10 W
Specifications
Model CS-PSP8-R100-3M
Performa nce Parameter
Power Voltage 5.4V ± 5%
Power Current 1.48A ± 5%
Open Circuit Voltage 6.8V ± 5%
Short Circuit Current 1.64A ± 5%
Max. Power 8W ± 5%
Interface Type-C
Solar Cell Efficiency ≥ 22%
Operation Temperature -20°C ~ 60°C (-4°F ~ 140°F) Humidity 90% or less (non-condensing)
IP Grade IP65
Solar Cell Type Monocrystalline solar cells
Power Cable Length 3 meters
General

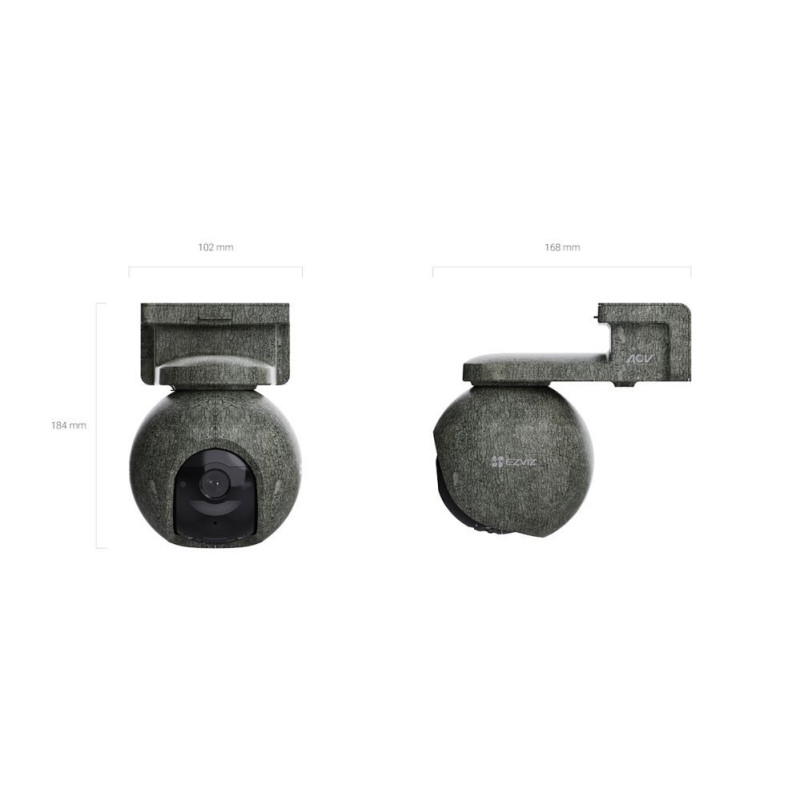

Product Dimensions Camera: 184 × 102 × 168 mm (7.24 × 4.02 × 6.61 inch)
Solar Panel: 267.3 × 186.5 × 17.5 mm (10.51 × 5.83 × 0.69 inch)
Packaging Dimensions 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
Product Weight Camera: 810 g (28.57 oz)
Solar panel: 428 g (15.10 oz)
Weight with Package 2131 g (75.18 oz )
In the box
In the box - EB8 Pro Ranger Camera
- Solar Panel 8W
- Drilling Template
- Adjustable Mounting Bracket
- Clamp Band × 2
- Clamp Adapter Bracket
- Screw Kit x 2
- Power Cable
- Quick Installation Guide
-Regulatory Information x 3
- Quick Start Guide
Certifications
Certifications CE / REACH / WEEE / RoHS

The ultimate 4K ranger, built for the wildlife and wilderness
True to its name, the EB8 Pro Ranger is like a trusted scout watching over the wild. Whether deep in the forest or across open fields, it quietly captures every moment in stunning 4K details. Its smart dual connectivity keeps you connected, whether through Wi-Fi or roaming 4G, so you're always in the know no matter how deep you venture into the nature. Powered by advanced AOV technology with an included solar panel, it works tirelessly around the clock, guarding your property and revealing the secret lives of wildlife in their natural playground.

EB8 Pro Ranger
EB8 Pro 4G Kit - 4G & Wi-Fi Smart Home Battery Camera Kit
4K Resolution

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
360° Panoramic View

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Dual Connectivity with 4G and Wi-Fi 6

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Always-On Video Mode 2.0

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
10,400 mAh Rechargeable Lithium Battery¹

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Device GPS Location Viewing²

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Wild Animal Detection³

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
940nm No-Glow Infrared LEDs

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
AI-Powered Human / Vehicle Shape Detection

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Smart Tracking³

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Two-Way Talk

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Balanced Image Exposure with Smart Lights

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Active Defense with Siren & Strobe Light

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Weatherproof Design

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Supports MicroSD Card (Up to 512 GB) & EZVIZ CloudPlay Storage⁵

Solar Panel 8W
EZVIZ CB8 Lite 4G & Wi-Fi Smart Home Battery Camera
Eco-Friendly & Cost-Saving Solar Power Supply

EZVIZ CB8 Lite 4G & Wi-Fi Smart Home Battery Camera
High Light Absorption with Monocrystalline Silicon Cells

EZVIZ CB8 Lite 4G & Wi-Fi Smart Home Battery Camera
High Charging Efficiency (Up to 8W)

EZVIZ CB8 Lite 4G & Wi-Fi Smart Home Battery Camera
3-Meter Cable for Mounting Flexibility

EZVIZ CB8 Lite 4G & Wi-Fi Smart Home Battery Camera
Weatherproof Design

Designed for ultimate, outdoors like a pro

With a camo design that blends perfectly into the outdoors, this device keeps watch without drawing attention. Its smart dual connectivity—automatically switching between Wi-Fi and 4G—means you'll never lose touch, even in the most remote locations. Easy to set up and reliable in any environment, it gives you peace of mind and effortless monitoring wherever you need it.
Eagle eye with 4K, sharp and boundless
Enjoy the authentic, lifelike images of wild animals from every angle using the EB8 Pro Ranger. With stunning 4K resolution and a panoramic vision, wildlife monitoring becomes an immersive and inspiring experience like never before.
From strangers to cars, you'll know it first
The EB8 Pro Ranger helps you stay safe and in control by instantly alerting you whenever people or vehicles come near your property or campsite, so you always know what's happening, day or night.
Follow every action for a complete activity
The EB8 Pro Ranger automatically locks onto and tracks moving person, capturing their entire path for a clear view of what's going on.
The game-changing technology for battery-powered protection
Unlike most battery cameras on the market, which have trouble detecting and recording videos due to short battery life and non-smart sensors, the camera is equipped with EZVIZ's groundbreaking AOV technology to enable all-day recording while ensuring a long standby time with a much greater detection distance.
In AOV mode, the EB8 Pro Ranger takes photos at set intervals and turns them into a smooth time-lapse video6 that reveals changes throughout the day, even when nothing's happening. When it detects motion, it automatically switches to regular video to capture all the details. This means you get full-day coverage on a battery-powered camera without needing to plug it in.

Now upgraded to AOV 2.0

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Down to 1-Second Ultra-Short Time Interval

EZVIZ EB8 Pro Ranger + Solar Panel 8W - 4G & Wi-Fi Smart Home Battery Camera Kit
Wiser Battery Consumption for All-Day Recording
Unlike other battery cameras that heavily rely on PIR sensors to capture only nearby activities, this camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears, it will immediately notice that and inform you straight away.

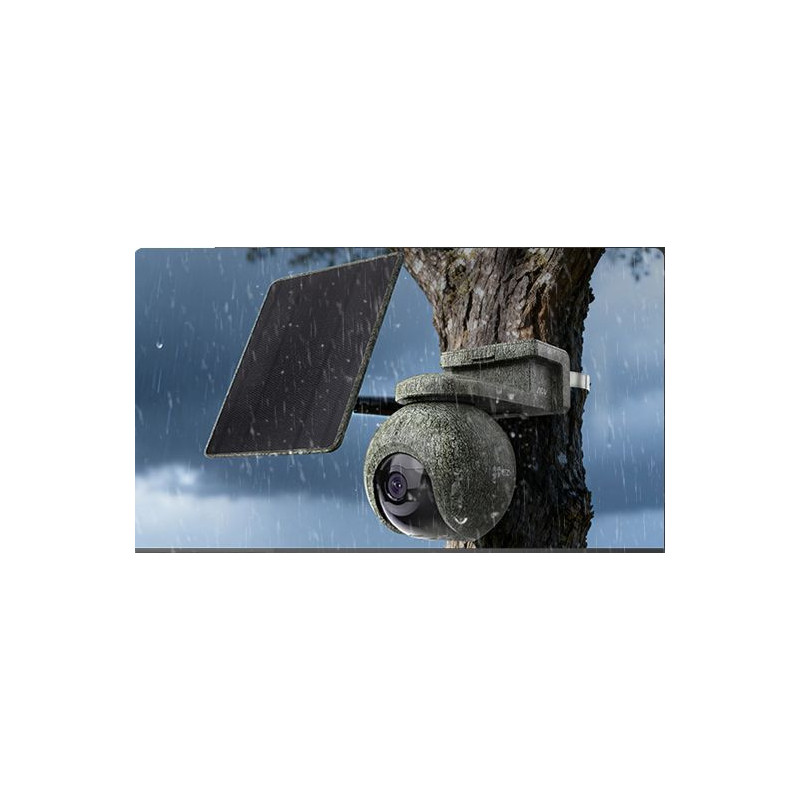

Solar-powered security that never takes a moment off


What you face now
Short battery runtime
which disrupts camera operation

Event-based recordings only
which misses important background

No continuous 24/7 recording
which is unable for full-time monitoring
Capture every moment in perfect light
Wherever you place the EB8 Pro Ranger, it gently adapts to the light to deliver clear, well-balanced images. You can easily turn on "Balanced Image Exposure" anytime through the EZVIZ App, no matter which night vision mode you choose.

EZVIZ HB8 Pro Battery-Powered Pan & Tilt Wi-Fi Camera
Smartly reduces brightness to avoid overexposure

EZVIZ HB8 Pro Battery-Powered Pan & Tilt Wi-Fi Camera
Automatically boosts image gain to see dark details
Pinpoint you camera, one tap away

Whether it's deep in the forest, across a vast field, or tucked away in a remote campsite, you'll always know exactly where your camera is with the built-in GPS. This means no wasted time hunting for equipment, less hassle during maintenance, and more freedom to focus on capturing the moments and wildlife you care about most.
Data comes from EZVIZ Lab's test under standard conditions and may vary due to environmental factors and the frequency of camera activities.
The GPS function is able to run properly only when the camera is installed in an open, outdoor environment. If you install the camera in an indoor space inside a building, the GPS may not function properly.
1.Data comes from EZVIZ Lab's test under standard conditions and may vary due to environmental factors and the frequency of camera activities.
2.The GPS function is able to run properly only when the camera is installed in an open, outdoor environment. If you install the camera in an indoor space inside a building, the GPS may not function properly.
3.To use the wild animal detection feature, users need to pay for additional subscriptions stated on the EZVIZ App. The animal detection feature is currently capable of capturing the common shapes of up to 21 animal species, including horse, sheep, pig, goose, zebra, bird, elephant, bear, crocodile, leopard, camel, cattle, monkey, snake, hippopotamus, lion, tiger, kangaroo, raccoon, fox, deer, and wolf. Note that the function is available in certain countries, please confirm before purchasing.
4.The EB8 Pro Ranger camera only supports auto smart tracking on detected humans based on its AI-powered human shape algorithm.
5.The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
6.To use this function, a compatible microSD card (sold separately) must be inserted into the camera.
7.When the AOV mode is enabled, according to EZVIZ Lab's test results under standard conditions, the camera is able to detect movements distance of up to 25 meters during the day, and up to 12 meters during the night time. Other tested battery models that use PIR-based detection usually have a detection distance of up to 9 meters. The actual detection range may differ due to environmental factors.
8.Data from EZVIZ Lab's test results, under the following standard condition: AM=1.5, 25°C, 1000W/m², SMQ. The data is obtained based on the camera set on AOV mode and with the AOV interval set as AUTO. The actual charging efficiency may vary depending on sunlight intensity and other environmental factors, while the actual hours of camera use may also differ due to the frequency of camera activities and other environmental factors.
9.Amazon Alexa and Google Assistant are not available in certain languages and countries.
10.Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
