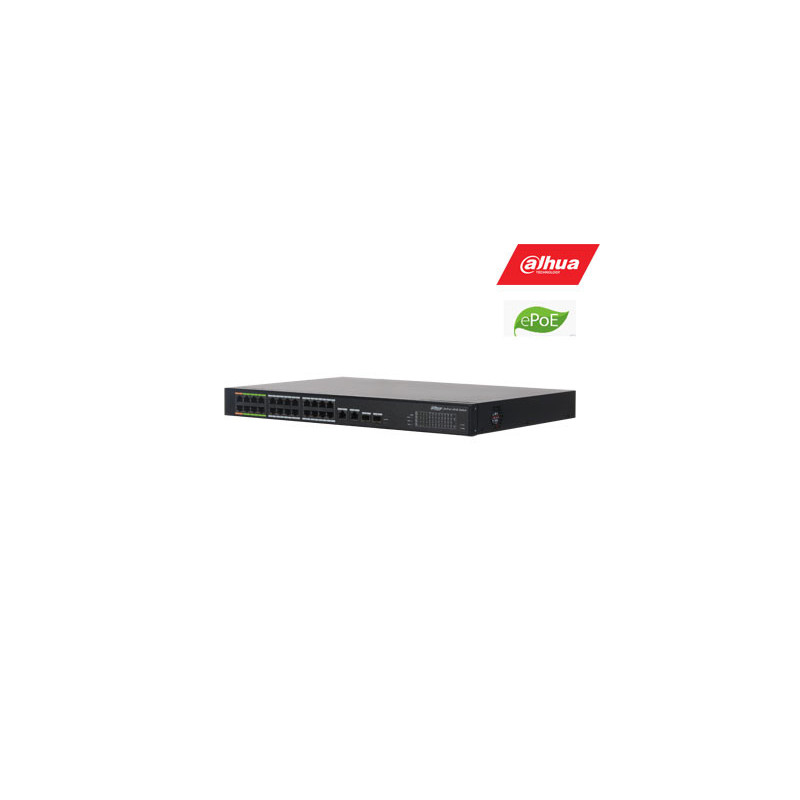

ePoE hub 100Mbps 24 ports+2G uplink + 2SFP, ePoE up to 800m, Hi-PoE

Product Overview:

• DH-LR2226-24ET-360 is a 24-port web-managed ePoE switch that


• can transmit PoE over 800 meters of Ethernet cable


• at 10 Mbps or 300 meters at 100 Mbps. In addition,


• it supports PoE and PoC power technology, which is very


• simplified the design and wiring. "Dahua ePoE technology offers a new


• a way to transmit over long distances between an IP camera and


• network switch. This allows for more flexibility in designing surveillance systems,


• increases reliability and saves construction and electrical installation costs.

Features:
• Supports long-distance PoE transmission up to 800m using Dahua ePoE technology
• Two-layer web-managed ePoE switch
• Ports 1-8 support three self-adaptive transmission modes, which are IEEE, E100 and E10< br /gt; • Ports 1-8 support both twisted pair and coaxial cable transmission
• Web management supported: port management, 802.1Q VLAN, STP/RSTP, LACP, 802.1X, QoS
• Support PoE management, Green PoE, legacy support
• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
Technical specifications:
• Model DH-LR2226-24ET-360
Ethernet Port
• 2*10/100/1000 Base-T
• 2*1000 Base-X (Combo Ports)
• 24*10/100 Base-T (PoE Power Supply)
• PoE Power Consumption Port 1 and Port 2 support Hi-PoE 60 W
• Each Power = 30 W, Total= 360 W
• PoE protocol IEEE802.3af, IEEE802.3at, Hi-PoE
• Switching capacity 8.8 Gbps
• Packet forwarding rate 6.55 Mpps
• Packet buffer memory 2.75 Mb /gt; • Operating humidity 10%~90%
• Power AC100-240V, 50/60Hz
• Lightning protection Common mode 4KV
• Differential mode 2KV
• Operating temperature -10 °C~55°C
• Weight 3,12kg
• Dimensions (W×D×H) 440mm x300mm x44mm
Transmission performance:
ePoE switch power supply voltage 48V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 53, operating mode IEEE/E100
• Cable ( m) 200, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 47, operating mode E100
• Cable (m) 300, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 32, operating mode E100
• Cable (m) 400, bandwidth 10, PoE load (W) 23, Hi-PoE load (W) 26, operating mode E10
• Cable (m) 500, bandwidth 10, PoE load (W) 20, Hi-PoE load (W) 20, operating mode E10
• Cable (m) 800, bandwidth 10, PoE load (W) 13, Hi-PoE load (W) 13, operating mode E100
ePoE switch supply voltage 53V, CAT5E/CAT6, max. DC resistance < 10O/100m
• Cable (m) 100, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 53, operating mode IEEE/E100
• Cable ( m) 200, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 48, operating mode E100
• Cable (m) 300, bandwidth 100, PoE load (W) 25.5, Hi-PoE load (W) 30, operating mode E100
• Cable (m) 400, bandwidth 10, PoE load (W) 20, Hi-PoE load (W) 23, operating mode E10
• Cable (m) 500, bandwidth 10, PoE load (W) 16 Hi-PoE load (W) 26, operating mode E10
• Cable (m) 800, bandwidth 10, PoE load (W) 8, Hi-PoE load (W) 8, operating mode E10
