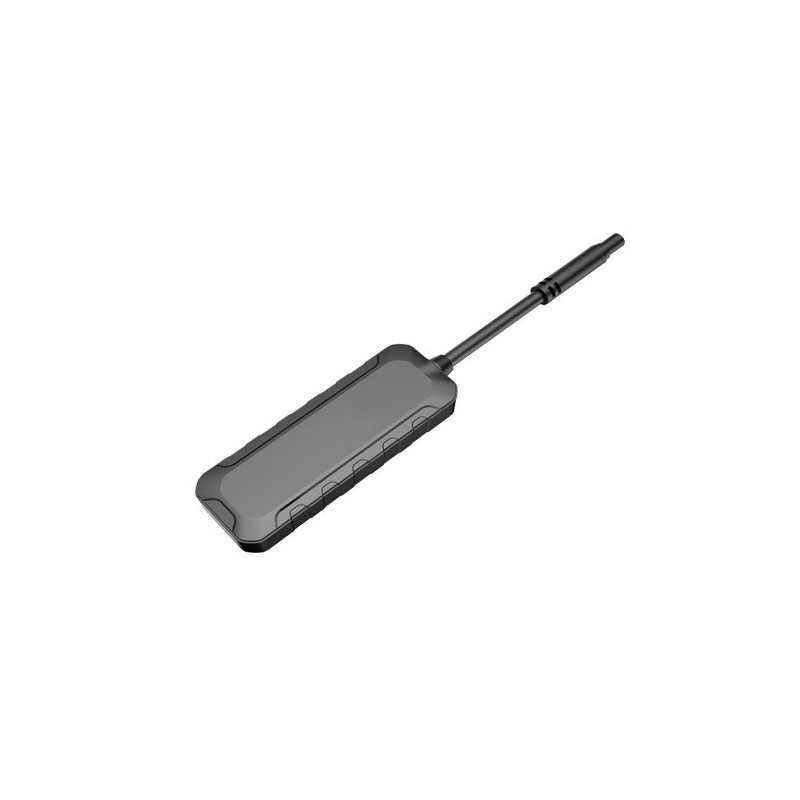

Concox GPS tracker 9-90 V
Compact 9-90V GPS tracker for motorcycles and electric scooters. Location determination based on GPS, BDS and LBS data is possible using the app, SMS messages or web platform. The device supports ignition, speed, geo-zone and external alarm alerts, remote power off, has a 100 mAh backup battery, IPX5 protection, and its dimensions are 73.8 × 25.9 × 12.2 mm.
- Compact GPS tracker for motorcycles, scooters and other 9-90 V vehicles
- Real-time location tracking via Tracksolid Pro app, SMS or web platform
- Remote ignition or power cut-off, anti-theft alerts and geofencing
- Hidden, lightweight design with GPS, BDS and LBS positioning
Product information | |
|---|---|
| Product type | GPS tracker for motorcycles, electric scooters and other 9-90 V vehicles |
| Model | Concox GPS Tracker 9-90V |
| Tracking platforms | Tracksolid Pro app, SMS messages and web platform |
| SIM card requirement | Requires a separately purchased SIM card with mobile data |
Technical specifications | |
| Positioning systems | GPS, BDS and LBS |
| GPS frequency | L1, 1575.42 MHz, C/A code |
| GPS channels | 66 |
| Location accuracy | <2.5m |
| Tracking sensitivity | -165 dBm |
| Acquisition sensitivity | -148 dBm |
| GPS start time | Hot start: less than 1 sec.; Cold start: less than 32 sec. in open area |
| GSM frequencies | 850/900/1800/1900MHz |
| Data transfer | GPRS Class 12, TCP/IP |
| Memory | 32 + 32MB |
| Operating voltage | 9-90V DC |
| Current consumption | 8 mA at 36 V DC |
| Backup battery | 100 mAh, 3.7 V lithium polymer battery |
| Operating temperature | From -20°C to +70°C |
| Environmental protection class | IPX5 |
| Weight | 26.6 grams |
| Dimensions | 73.8 × 25.9 × 12.2mm |
Features | |
| Vehicle tracking | Real-time location and vehicle activity monitoring |
| Warnings | About ignition status, speeding, exit from geo-zone, theft protection and various alarms |
| Remote control | Remote ignition or power cut-off using a tracking system |
| Compatibility with alarms | Supports external alarm |
| Antennas | Integrated GPS antenna and GSM quad-band antenna |
| Safety warning | For use only in vehicle anti-theft, tracking and monitoring. Installation, wiring and remote power disconnection must be performed by a qualified technician. Do not engage the disconnection function while the vehicle is moving, as this may cause loss of control or an accident. Protect the device and wiring from water, heat and mechanical damage and use only within the specified 9-90 V DC range. |
| Height | 50mm |
| Length | 180mm |
| Weight | 150 g |
| Width | 120mm |
