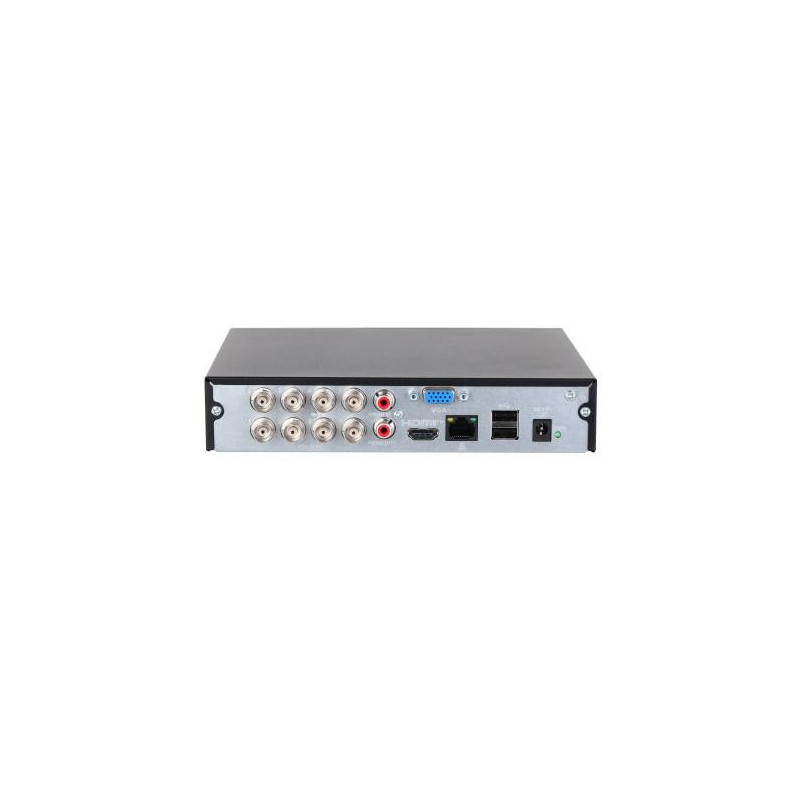

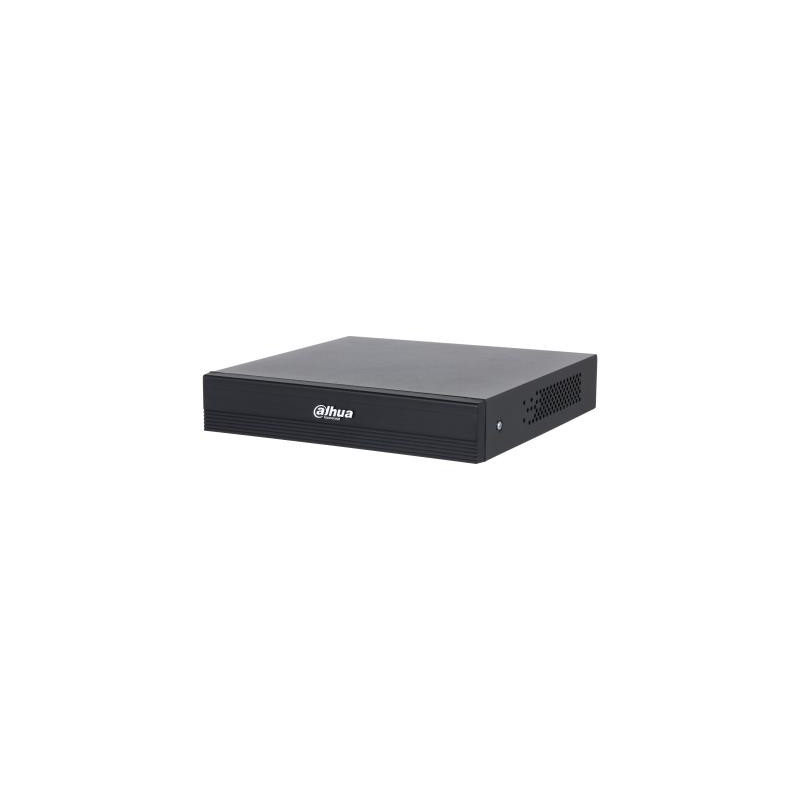

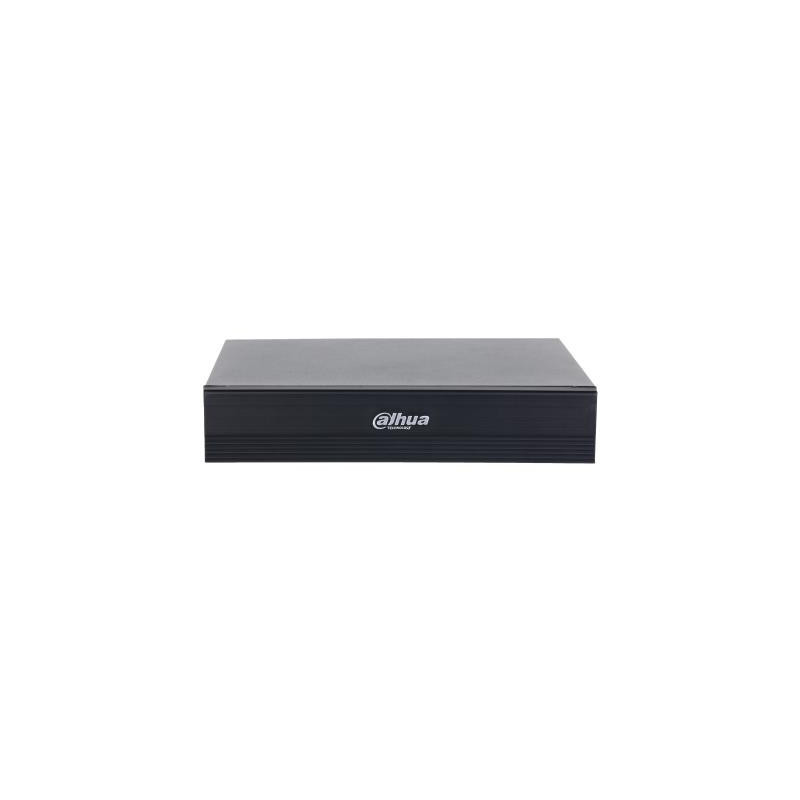

DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA
Product reference: 2-6939554956775
DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA
DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA
DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA
DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA

DVR 8CH HDCVI PENTABRID / XVR1B08-I / T DAHUA

Product reference: 2-6939554956775
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
99,04 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

  • Dolynk cloud compatible version: DMSS V2.0.1 and above, Dolynk Care V2.5.1 and above
  • 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 8-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles
  • 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
  • Supports HDCVI, AHD, TVI, CVBS and IP video input
  • Supports up to 10-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 40 Mbps
  • Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
  • Smart H.265+ and H.265 dual-stream video compression

Audio formats supported G.711/G.711u/PCM
BNC input ports 8
Certification CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN
61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020,
EN 55035:2017+A11:2020, EN 55024:2010+A1:2015,
EN 50130-4:2011+A1:2014
Channels quantity 8 channels
DC current (max) 1.5 A
DC voltage 12 V
Depth 204.3 mm
Dual stream support Yes
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
Height 41.5 mm
Internal No
Model XVR1B08-I/T
Operating relative humidity (H-H) 10 - 90 %
Operating system installed Embedded LINUX
Operating temperature (T-T) -10 - 45 °C
Package depth 64 mm
Package height 240 mm
Package weight 970 g
Package width 332 mm
Power consumption (typical) 7 W
Power supply type DC
Product colour Black
SSD interface SATA
Storage temperature (T-T) -20 - 60 °C
Summary Dahua Technology DH-XVR1B08-I/T. Product colour: Black, Audio formats supported: G.711, G.711u, PCM, Channels quantity: 8 channels. Video resolutions: 1280 x 1024,1280 x 720,1920 x 1080. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;.... SSD interface: SATA. Power supply type: DC, DC voltage: 12 V, Power consumption (typical): 7 W
Supported network protocols HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Unit Box Height 0.24
Unit Box Length 0.33
Unit Box Width 0.06
Unit Calculated Volume 0.006003 cubm
Unit Calculated Weight 1.02 kg
Units per Shipping Box 10
USB 2.0 ports quantity 2
USB connectivity Yes
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/Cooper-I-Series/XVR1B08-I/T
VGA (D-Sub) output ports 1
Video resolutions 1280 x 1024/1280 x 720/1920 x 1080 pixels
Weight 570 g
Width 197 mm
