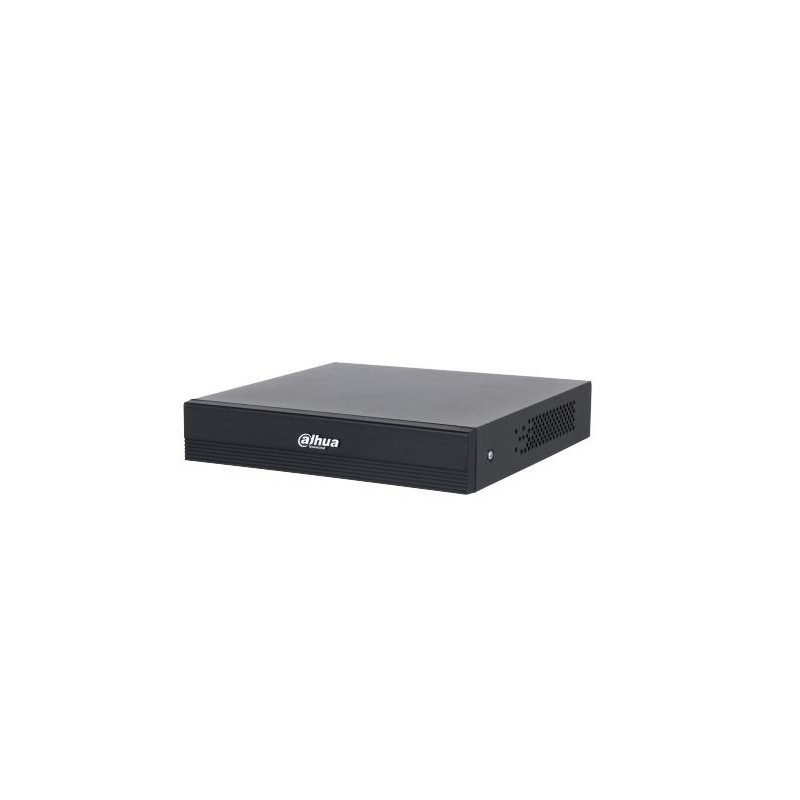

DVR 4CH HDCVI PENTABRID / XVR1B04-I / T DAHUA
Product reference: 2-6939554956751
DVR 4CH HDCVI PENTABRID / XVR1B04-I / T DAHUA

DVR 4CH HDCVI PENTABRID / XVR1B04-I / T DAHUA

Product reference: 2-6939554956751
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
77,44 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

  • 4-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
  • 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles
  • 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos

Audio formats supported G.711 A-law/G.711u/PCM
BNC input ports 4
Certification CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC
61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
55032:2015+A11:2020, EN 55035:2017+A11:2020, EN
55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Channels quantity 4 channels
DC current (max) 1.5 A
DC voltage 12 V
Depth 204.3 mm
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HDD interface SATA
HDMI ports quantity 1
Height 41.5 mm
Internal No
Maximum HDD capacity 6000 GB
Maximum video resolution 1920 x 1080 pixels
Model XVR1B04-I/T
Number of HDDs supported 1
Operating relative humidity (H-H) 10 - 90 %
Operating system installed Linux
Operating temperature (T-T) -10 - 45 °C
Package depth 64 mm
Package height 240 mm
Package weight 940 g
Package width 332 mm
Power supply type DC
Product colour Black
Product Net Weight 0.54 kg
Rack capacity 1U
Shipping Box Depth 48.7000007629395 cm
Shipping Box Height 34.5999984741211 cm
Shipping Box Weight 10 kg
Shipping Box Width 34.7999992370605 cm
Storage temperature (T-T) -20 - 60 °C
Summary Dahua Technology DH-XVR1B04-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; Filtro IP; FTP; DDNS. HDD interface: SATA, Maximum HDD capacity: 6 TB. Power supply type: DC, DC voltage: 12 V, DC current (max): 1.5 A. Width: 197 mm, Depth: 204.3 mm, Height: 41.5 mm
Supported network protocols HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; Filtro IP; FTP; DDNS
Unit Box Height 0.237
Unit Box Length 0.33
Unit Box Width 0.061
Unit Calculated Volume 0.005864 cubm
Unit Calculated Weight 1 kg
Units per Shipping Box 10
USB 2.0 ports quantity 2
Vendor Homepage https://www.dahuasecurity.com
VGA (D-Sub) output ports 1
Video compression formats H.264/H.264+/H.265/H.265+
Video motion detection Yes
Weight 540 g
Width 197 mm
