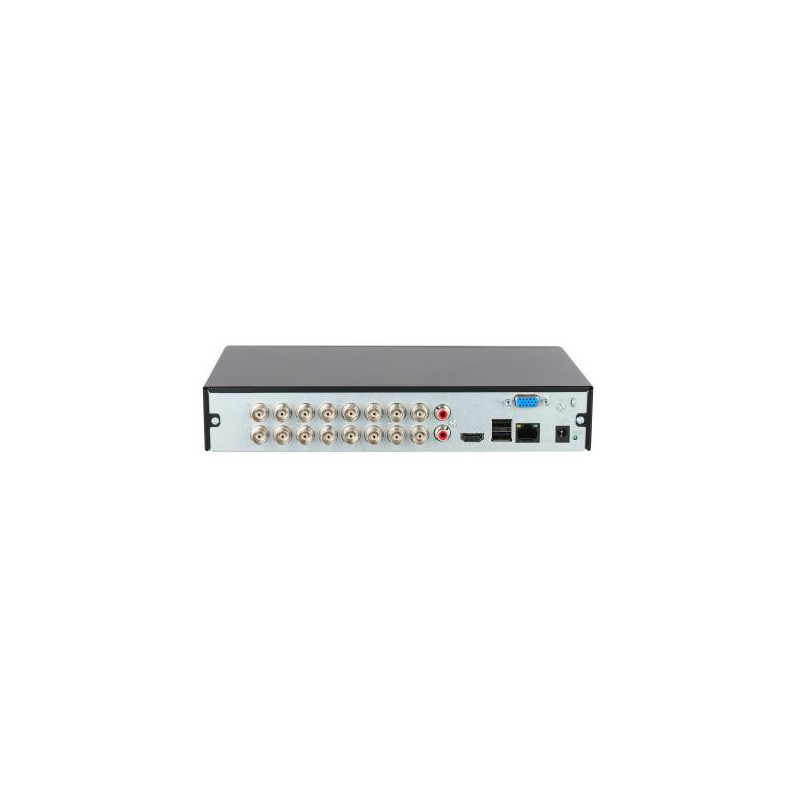

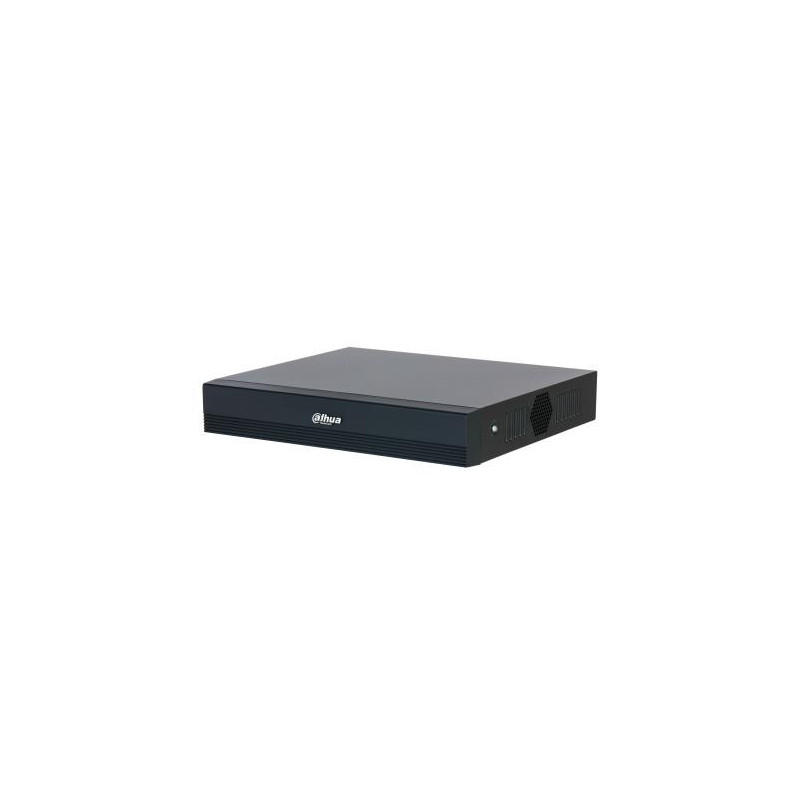

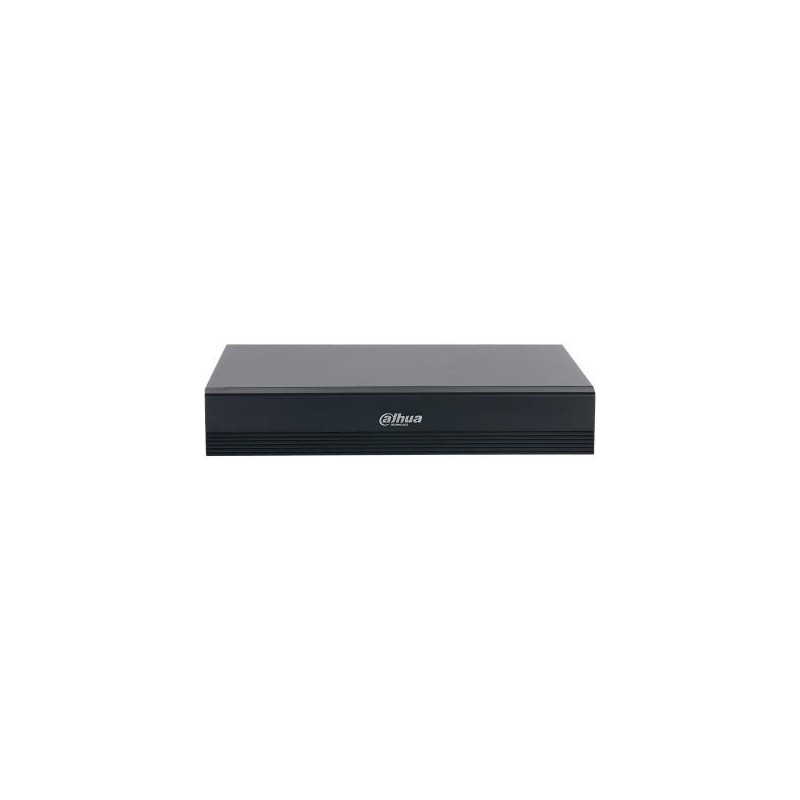

DVR 16CH HDCVI PENTABRID / XVR1B16-I / T DAHUA
Product reference:
2-6937552407985
DVR 16CH HDCVI PENTABRID / XVR1B16-I / T DAHUA
Product reference:
2-6937552407985
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.
- 16-ch Analog Video Input, Max. 1080N/720p@15fps Encoding Capability
- Max. 18-ch IP Video Input (Up to 6MP)
- 16-ch Two-way Talk
- AI Functions: 16-ch SMD, 16-ch AI Coding
- 1 Bay. Up to 16TB for Each HDD Storage Capacity
| Analog signal format system | NTSC/PAL |
| Audio formats supported | G.711/G.711u/PCM |
| Audio input | 1 |
| Audio output | 1 |
| Audio system | 2-way |
| Bit rate | 4096 Kbit/s |
| BNC input ports | 16 |
| Built-in processor | Yes |
| DC voltage | 12 V |
| Depth | 231.4 mm |
| Dual stream support | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Graphical user interface (GUI) | Yes |
| HDD interface | SATA/SATA II/SATA III |
| HDMI ports quantity | 1 |
| Height | 47.6 mm |
| Internal | No |
| Maximum HDD capacity | 6000 GB |
| Maximum video resolution | 1920 x 1080 pixels |
| Model | XVR1B16-I/T |
| Number of HDDs supported | 1 |
| Number of users | 128 user(s) |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -10 - 45 °C |
| Playback resolutions supported | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Power consumption (typical) | 10 W |
| Product colour | Black |
| PTZ control | Yes |
| Rack capacity | 1U |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Summary | Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Unit Box Height | 0.285 |
| Unit Box Length | 0.345 |
| Unit Box Width | 0.087 |
| Unit Calculated Volume | 0.008554 cubm |
| Unit Calculated Weight | 1.49 kg |
| Units per Shipping Box | 1 |
| USB 2.0 ports quantity | 2 |
| Vendor Homepage | https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t |
| VGA (D-Sub) output ports | 1 |
| Video capturing speed | 30 fps |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video input channels | 16 channels |
| Video motion detection | Yes |
| Video streaming | Yes |
| Weight | 890 g |
| Width | 260 mm |
