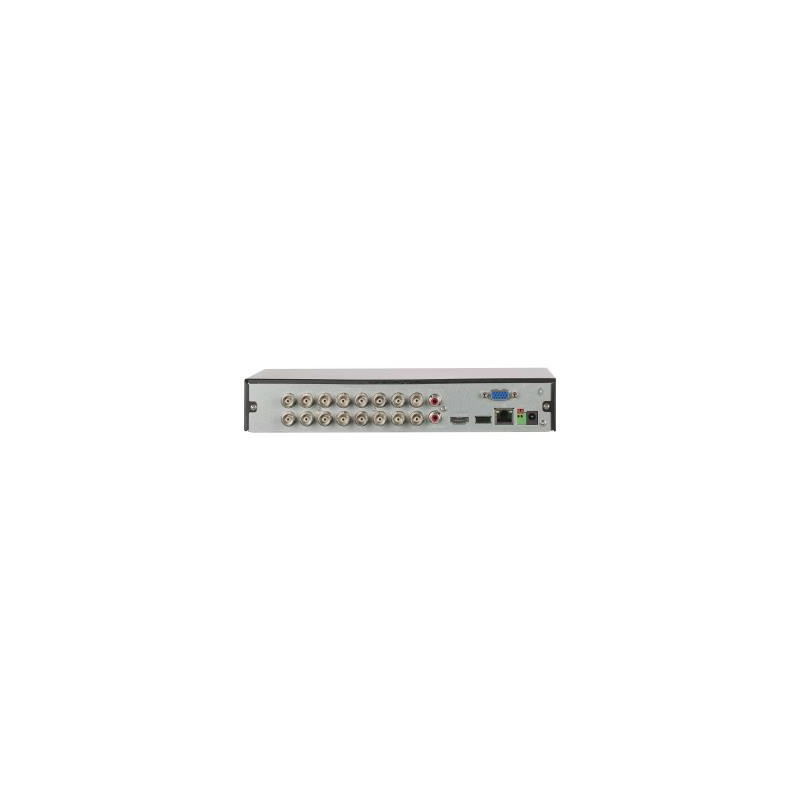

DVR 16CH HDCVI PENTABRID AI / XVR5116HS-I3 / T DAHUA
Product reference: 2-6937552414990

DVR 16CH HDCVI PENTABRID AI / XVR5116HS-I3 / T DAHUA

Product reference: 2-6937552414990
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
374,53
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua Technology, a world-leading video-centric smart IoT solution and service provider, debuted its new XVR series, XVR5000-I3 Series featuring max.full-channel SMD Plus to benefit customers from AI upgrade (The number of channels differs depending on the model. Please refer to the specifications below for information on the number of channels.). This series has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities.

  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
  • Up to 2 channels video stream (analog channel) Perimeter Protection
  • Up to 16 channels video stream (analog channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities

Analog signal format system NTSC/PAL
Audio formats supported G.711 µ-law/G.711 A-law/PCM
Audio input 1 RCA
Audio output 1 RCA
Backup function Yes
Bit rate 32 Kbit/s
BNC input ports 16
Certification CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN
50130, EN 55024
FCC: Part 15 Subpart B
Channels quantity 16 channels
DC voltage 12 V
Depth 237.4 mm
Dual stream support Yes
Ethernet interface type Fast Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
HDD interface SATA
HDMI ports quantity 1
Height 47.6 mm
Maximum HDD capacity 16000 GB
Maximum video resolution 3840 x 2160 pixels
Model XVR5116HS-I3/T
Operating relative humidity (H-H) 10 - 90 %
Operating system installed Embedded LINUX
Operating temperature (T-T) -10 - 55 °C
Package depth 333 mm
Package height 315 mm
Package width 89 mm
Power supply type DC
Product colour Black
PTZ control Yes
Rack capacity 1U
RS-485 ports 1
Summary Dahua Technology XVR5116HS-I3/T. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Audio input: 1 RCA, Audio output: 1 RCA, Video in: HDCVI/AHD/TVI/CVBS/IP. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P. HDD interface: SATA, Maximum HDD capacity: 16 TB. Power supply type: DC, DC voltage: 12 V
Supported network protocols HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Unit Box Height 0.086
Unit Box Length 0.344
Unit Box Width 0.285
Unit Calculated Volume 0.008431 cubm
Unit Calculated Weight 1.58 kg
Units per Shipping Box 1
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/5MP-Value1080p-Series/XVR5116HS-I3/T
VGA (D-Sub) output ports 1
Video capturing speed (NTSC) 30 fps
Video capturing speed (PAL) 25 fps
Video compression formats H.264/H.264+/H.265/H.265+
Video in HDCVI/AHD/TVI/CVBS/IP
Video loss detection Yes
Video motion detection Yes
Video streaming Yes
Weight 1170 g
Width 260 mm
