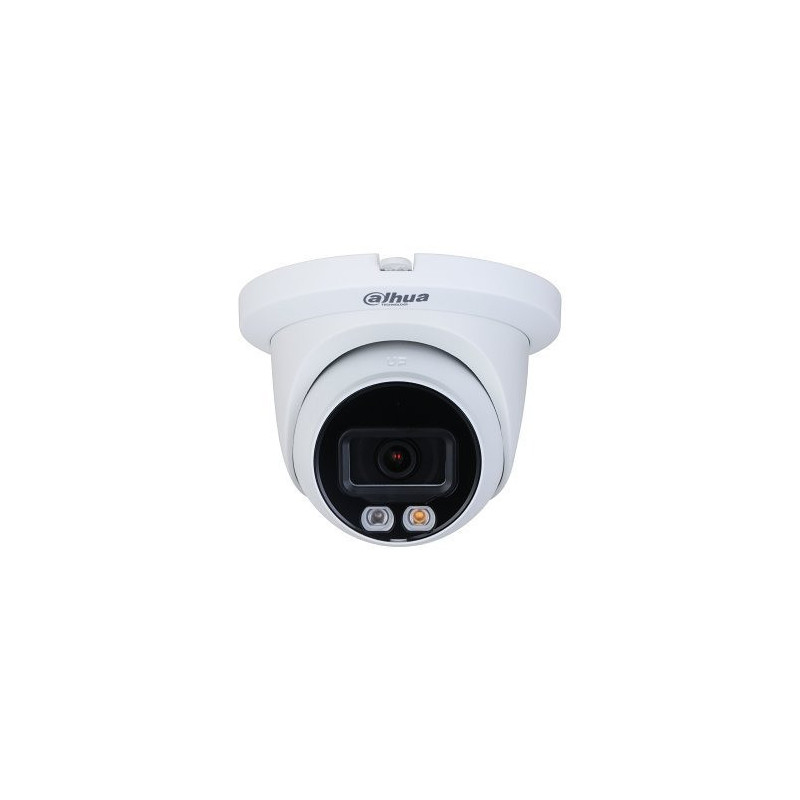

Dome camera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)
Product reference: 26-DAHIPCHDW2449TSIL
  • Type: dome IP camera
  • Brand: Dahua
  • Model: IPC-HDW2449T-S-IL-0280B
  • Technology: WizSense, dual illumination
  • Lens: 2.8 mm (95°)
  • Resolution: 4 MP
  • Image format: H.265
  • WDR: 120dB
  • Image functions: 3D DNA, HLC, BLC
  • Protection classes: IP67, IK10
  • Built-in microphone
  • Illumination: IR + white light up to 30 m
  • Power supply: PoE
  • Memory: SD up to 256 GB
  • Operating temperature: -40°C to +60°C
Dome camera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)

Dome camera Dahua IPC-HDW2449T-S-IL-0280B F2.8 (4 MP, 95°, IR+LED 30 m, IP67, IK10)

Product reference: 26-DAHIPCHDW2449TSIL
  • Type: dome IP camera
  • Brand: Dahua
  • Model: IPC-HDW2449T-S-IL-0280B
  • Technology: WizSense, dual illumination
  • Lens: 2.8 mm (95°)
  • Resolution: 4 MP
  • Image format: H.265
  • WDR: 120dB
  • Image functions: 3D DNA, HLC, BLC
  • Protection classes: IP67, IK10
  • Built-in microphone
  • Illumination: IR + white light up to 30 m
  • Power supply: PoE
  • Memory: SD up to 256 GB
  • Operating temperature: -40°C to +60°C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
85,68 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • General
  • Model DH-IPC-HDW2449TM-S-IL
  • Type 4MP Smart Dual Light Fixed-focal Eyeball WizSense Network Camera
  • Image sensor 1/2.9" CMOS
  • Highest resolution 2688 × 1520 (4MP)
  • ROM / RAM 128MB / 128MB
  • Scanning system Progressive
  • Minimum lighting level 0.006 lux@F1.6 (Color), 0.0006 lux@F1.6 (B/W), 0 lux (IR/Warm light on)
  • Lighting distance 30 m (IR), 30 m (Warm light)
  • Illuminator Control/Count Auto/Manual; 1 AND LED, 1 Warm light
  • Rotation/direction/pivot Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
  • Lens type Fixed focal
  • Lens mount M12
  • Focal Length Options 2.8mm, 3.6mm
  • Max Aperture F1.6
  • Field of View (2.8 mm) H: 95°, W: 52°, D: 114°
  • Field of View (3.6 mm) H: 78°, W: 41°, D: 94°
  • Close focus distance 2.8mm: 0.9m; 3.6mm: 1.6m
  • DORI Distance (2.8 mm) Detect: 63.6 m, Observe: 25.4 m, Recognize: 12.7 m, Identify: 6.4 m
  • DORI distance (3.6 mm) Detect: 85.4 m, Observe: 34.2 m, Recognize: 17.1 m, Identify: 8.5 m
  • Intelligent Functions Perimeter protection (Intrusion, Tripwire - human/vehicle classification), SMD Plus, Smart Search
  • Image compression H.265, H.264, H.264B, H.264H, MJPEG (sub stream)
  • Smart Codec Smart H.265+, Smart H.264+
  • Frame rate 2688×1520@1-20 fps, 2560×1440@1-25/30 fps (main); 704×576@1-25 fps, 704×480@1-30 fps (sub)
  • Streams 2 streams
  • Supported Resolutions 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
  • Bitrate Control / Bit Rate CBR/VBR; H.264: 32-6144 kbps, H.265: 12-6144 kbps
  • Day/night mode Auto(ICR)/Color/B/W
  • WDR 120dB
  • BLC / HLC Yes / Yes
  • White balance Auto, Natural, Street lamp, Outdoor, Manual, Regional Custom
  • Gain control Auto / Manual
  • Noise reduction 3D NR
  • Motion detection 4 configurable areas
  • Region of Interest (ROI) Area 4
  • Image rotation 0° / 90° / 180° / 270° (up to 2688×1520 resolution)
  • Mirror / Privacy Masking Yes / 4 areas
  • Sound MIC Built-in, G.711a, G.711Mu, PCM, G.726
  • Dangerous events No SD card, SD error/full, network disconnection, IP conflict, illegal access, motion detection, video tamper, tripwire, intrusion, voltage, security exception, SMD
  • Network interface RJ-45 (10/100 Base-T)
  • Network protocols IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P
  • SDKs APIs Yes
  • Compatibility ONVIF (Profile S/G/T), CGI
  • Max Users 6 users (36 Mbps total bandwidth)
  • Memory FTP, SFTP, Micro SD card up to 256 GB
  • Browser Compatibility IE, Chrome, Firefox
  • Management software DSS, DMSS
  • Mobile app iOS, Android
  • Cybersecurity Trusted execution, X.509 certs, HTTPS, video encryption, syslog, WSSE, 802.1x, IP/MAC filtering, trusted boot, secure upgrade
  • Power source 12 VDC / PoE (802.3af)
  • Energy consumption Basic: 2.1 W (DC), 2.5 W (PoE); Max: 4.4 W (DC), 5.2 W (PoE)
  • Operating temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Storage temperature -40 °C to +60 °C (-40 °F to +140 °F)
  • Humidity ≤95%
  • Protection against dust and moisture IP67
  • Housing material Metal (core cover), Plastic (decor ring)
  • Dimensions 99.1 × Φ121.9 mm (3.90" × Φ4.80")
  • Net Weight / Gross Weight 0.46 kg (1.01 lb) / 0.65 kg (1.43 lb)
  • Certificates CE-LVD (EN62368-1), CE-EMC (Directive 2014/30/EU), FCC Part 15 Subpart B, UL/CUL (UL62368-1 CAN/CSA C22.2 No. 62368-1-14)
  • Included / Optional Accessories Optional: PFA130-E (Junction Box), PFB205W-E (Wall Mount), PFA152-E (Pole Mount), PFA109 (Mount Adapter), PFB220C (Ceiling Mount), PFM321D (12VDC 1A Adapter), PFM900-E (Mount Tester), TF-P100 (MicroSD Card)

ManufacturerDahua
Manufacturer codeDAHIPCHDW2449TSIL
Weight0.41 kg
