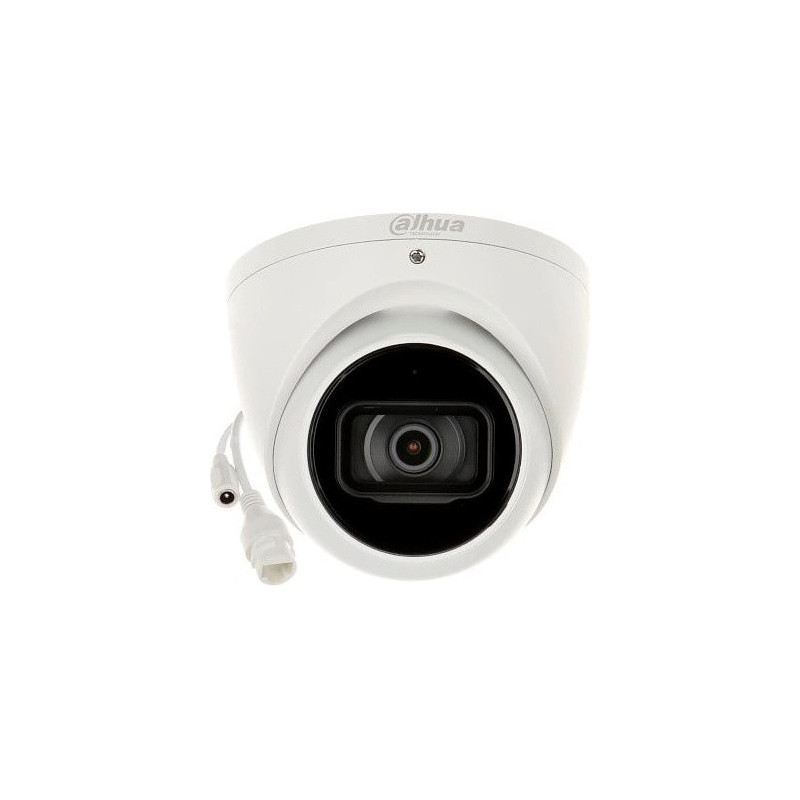

Dahua Dome IPC-HDW5842TM-ASE-0280B-S3 F2.8 (White, 8MP, ~111°, IR+LED 50m, IP67, PoE)
Product reference:
26-DAHIPCH5842TMASE0280
- Type: IP camera
- Model: IPC-HDW5842TM-ASE-0280B-S3
- Brand: Dahua
- Series: WizMind 5
- Lens: 2.8 mm (~111°)
- Resolution: 8 MP
- Image compression: H.265
- IR illumination: up to 50 m
- WDR: 140dB
- Noise reduction: 3D DNA
- Lighting technology: Dual illumination
- Functions: Starlight+, Lite AI, HLC, BLC
- Audio interface: Built-in microphone
- Alarm: Audio/alarm inputs
- Protection class: IP67
- Operating temperature: -40°C to +60°C
- Power supply: PoE
- Memory card: SD up to 256 GB
Dahua Dome IPC-HDW5842TM-ASE-0280B-S3 F2.8 (White, 8MP, ~111°, IR+LED 50m, IP67, PoE)
Product reference:
26-DAHIPCH5842TMASE0280
- Type: IP camera
- Model: IPC-HDW5842TM-ASE-0280B-S3
- Brand: Dahua
- Series: WizMind 5
- Lens: 2.8 mm (~111°)
- Resolution: 8 MP
- Image compression: H.265
- IR illumination: up to 50 m
- WDR: 140dB
- Noise reduction: 3D DNA
- Lighting technology: Dual illumination
- Functions: Starlight+, Lite AI, HLC, BLC
- Audio interface: Built-in microphone
- Alarm: Audio/alarm inputs
- Protection class: IP67
- Operating temperature: -40°C to +60°C
- Power supply: PoE
- Memory card: SD up to 256 GB
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Image sensor 1/1.8" CMOS
- Max resolution 3840 (H) × 2160 (V)
- ROM 4GB
- RAM 2GB
- Scanning system Progressive
- Electronic shutter speed Auto/Manual 1/3 s-1/100,000 s
- Min. lighting 0.0008 lux@F1.6 (Color, 30 IRE)0.0004 lux@F1.6 (B/W, 30 IRE)0 lux (Illuminator on)
- Signal-to-noise ratio > 56 dB
- Lighting distance Up to 50 m (164.04 ft) (IR)
- Lighting control Auto;Manual
- Number of lights 2 (AND LED)
- Changing the angle Pan: 0°-360°Tilt: 0°-78°Rotation: 0°-360°
- Lens type Fixed focal
- Lens installation M16
- Focal length 2.8mm; 3.6mm; 6mm
- Maximum aperture F1.6
- FOV 2.8 mm: H: 111°; W: 59°; D: 131°3.6mm: H: 87°; W: 47°; D: 102°6 mm: H: 55°; W: 30°; D: 64°
- Aperture control Fixed
- Closest focus 2.8 mm: 1.8 m3.6 mm: 2.6 m6 mm: 4.4 m
- EPTZ Yes
- IVS (Perimeter Security) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection. Supports long-distance mode. Supports self-learning, it filters out false alarms.
- Intelligent object detection Smart abandoned object; smart missing object
- SMD SMD 3.0
- AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals, and motor vehicles, and search through live and recorded videos to quickly locate targets.
- AI SSA Yes
- Facial recognition Face detection; track; snapshot snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
- People counting Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
- Heat map Yes
- Image metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
- Smart search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
- Smart sound detection Yes
- Image compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
- Smart Codec Smart H.265+; Smart H.264+
- AI coding AI H.265; AI H.264
- Video frame rate Main stream: 3840 × 2160@(1-25/30 fps) Sub stream: D1@(1-25/30 fps) Third stream: 1080p@(1-25/30 fps) Fourth stream: 720p@(1-10 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Flow capacity 4 streams
- Resolution 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240)
- Bit rate control CBR/VBR
- Video bit rate H.264: 32 kbps-16384 kbpsH.265: 12 kbps-13568 kbps
- Day/night Auto(ICR)/Color/B/W
- BLC Yes
- HLC Yes
- WDR 120dB
- Scene Self-adaptation (SSA) Yes
- White balance Car; natural; street lamps; outdoor; manual; regional custom
- Gain control Car
- Noise reduction 3D NR
- Motion detection OFF/ON (4 areas, rectangular)
- Area of interest Yes (4 areas)
- Smart lighting Yes
- Fog removal Yes
- Image rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
- Mirror Yes
- Privacy masking Area 8
- LDC Yes (only 2.8mm/3.6mm supports)
- Built-in microphone Yes
- Audio compression G.711a; G.711Mu; PCM; G.726; G.723
- Dangerous event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception
- Network port RJ-45 (10/100 Enhancement Base-T)
- SDKs and APIs Yes
- Internet protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register
- Compatibility ONVIF (Profile S/Profile G/Profile T/Profile M); CGI;
- User/port 20 (Total bandwidth: 80 M)
- Storage FTP; SFTP; Micro SD card (support max. 1 TB); NAS
- Browser IE: IE 9 and laterChrome: Chrome 102 and laterFirefox: Firefox 88 and later
- Management software SmartPSS Lite; DSS; DMSS
- Mobile app iOS;Android
- Cybersecurity Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
- Certificates CE-LVD: EN62368-1CE-EMC: Electromagnetic Compatibility Directive 2014/30/EUFCC: 47 CFR FCC Part 15, Subpart BUL/CUL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14
- Audio input 1 channel (RCA port)
- Audio output 1 channel (RCA port)
- Alarm input 1 channel in: wet contact, 5mA 3V-5V DC
- Alarm output 1 channel out: wet contact, 300mA 12V DC
- Power supply 12 VDC/PoE (802.3af)/ePoE
- Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
- Energy consumption Basic: 4.1 W (12 VDC); 5.2 W (PoE); Max. (H.265+ WDR+ Intelligence on+IR on): 6.8 W (12 VDC); 8.8 W (PoE)
- Working conditions (temperature) -40 °C to +60 °C (-40 °F to +140 °F)
- Working conditionshumidity ≤95%
- Storage conditions temperature -40 °C to +60 °C (-40 °F to +140 °F)
- Storage conditions humidity 10%-95% (RH), non-condensing
- Protection IP67
- Housing materials Inner core: MetalCover: MetalDecoration ring: PlasticQuick install mounting plate: Metal
- Product dimensions 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
- Net weight 500 g (1.10 lb)
- Total weight 770 g (1.70 lb)
| Manufacturer | Dahua |
| Manufacturer code | DAHIPCH5842TMASE0280 |
| Weight | 0.5 kg |
