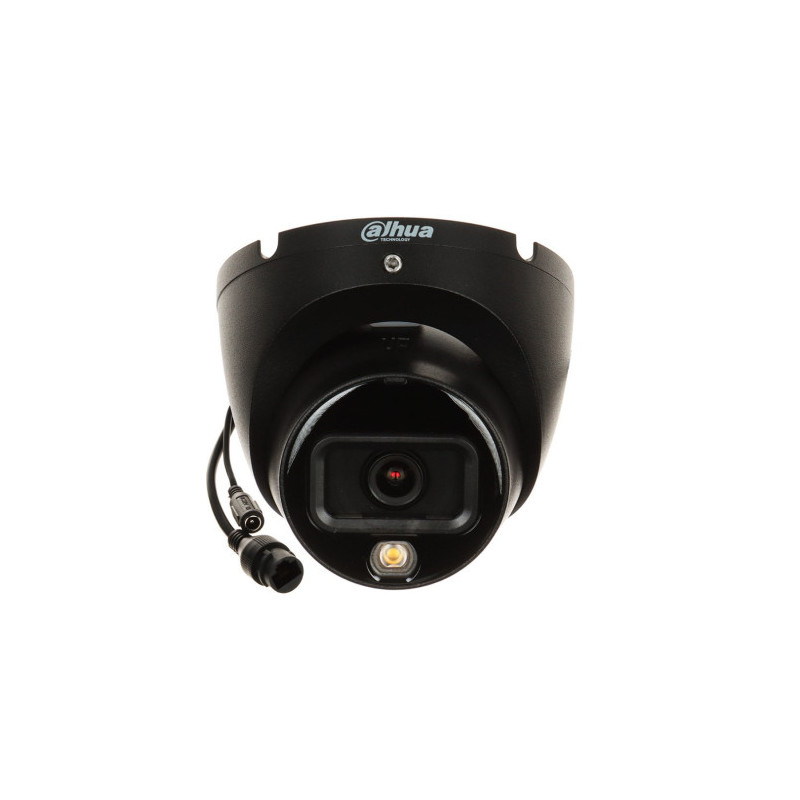

Dahua Dome IPC-HDW1639T-A-IL-0280B-S6-BLACK F2.8 (Black, 6MP, ~110°, IR+white light 30m, IP67)
Product reference: 26-DAHIPCHDW1639TAIL028J
  • Type: IP camera
  • Model: IPC-HDW1639T-A-IL-0280B-S6-BLACK
  • Color: Black
  • Lens: 2.8 mm (~110°)
  • Sensor resolution: 6 MP
  • Housing: DOME
  • Infrared range: IR + white light up to 30 m
  • Built-in microphone: Yes
  • Compression: H.265+
  • WDR: 120dB
  • Noise reduction: 3D NR
  • Resistance class: IP67
  • Impact resistance: IK10
  • Power supply: PoE
  • Operating temperature: -40°C to +60°C
  • Brand: Dahua
Dahua Dome IPC-HDW1639T-A-IL-0280B-S6-BLACK F2.8 (Black, 6MP, ~110°, IR+white light 30m, IP67)

Dahua Dome IPC-HDW1639T-A-IL-0280B-S6-BLACK F2.8 (Black, 6MP, ~110°, IR+white light 30m, IP67)

Product reference: 26-DAHIPCHDW1639TAIL028J
  • Type: IP camera
  • Model: IPC-HDW1639T-A-IL-0280B-S6-BLACK
  • Color: Black
  • Lens: 2.8 mm (~110°)
  • Sensor resolution: 6 MP
  • Housing: DOME
  • Infrared range: IR + white light up to 30 m
  • Built-in microphone: Yes
  • Compression: H.265+
  • WDR: 120dB
  • Noise reduction: 3D NR
  • Resistance class: IP67
  • Impact resistance: IK10
  • Power supply: PoE
  • Operating temperature: -40°C to +60°C
  • Brand: Dahua
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
71,41 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Converter 1/2.7" 5MP Progressive Scan CMOS
  • Resolution 5Mpx, 2880 (H) x 1620 (V) pixels
  • RAM / ROM 128MB / 16MB
  • Scanning system Progressive
  • Snapshot Auto / Manual, 1/3 ~ 1 / 100000s
  • Minimal lighting Color: 0.03 Lux / F2.0 (30 IRE), B/W: 0.003 Lux / F2.0 (30 IRE), IR on: 0 Lux
  • Lighting 1 AND LED
  • Lighting range 30m (98.4ft)
  • Lighting control Automatic / Manual
  • Position adjustment Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
  • Lens type Fixed focus
  • Lens assembly M12
  • Focal length 2.8mm (F2.0)
  • Viewing angle H: 105°, W: 57°, D: 125°
  • Focus adjustment Constant
  • Macro mode 0.5m (1.6ft)
  • DORI coverage Detection: 56m, Observation: 22.4m, Recognition: 11.2m, Identification: 5.6m
  • Image compression H.265 / H.264 / H.264B, MJPEG (Sub stream)
  • Smart Codec Yes (H.265+ / H.264+)
  • Simultaneous video streams 2
  • Processing resolution 5Mpx (2880x1620) / 4Mpx (2688x1520, 2560x1440) / 3Mpx (2048x1536, 2304x1296) / 1080p (1920x1080) / 1.3Mpx (1280x960) / 720p (1280x720) / D1 (704x576, 704x480) / VGA (640x480) / CIF (352x288, 352x240)
  • Processing speed and resolution (basic) 5Mpx - 2880x1620 (1 ~ 20kl/s), 4Mpx - 2688x1520 (1 ~ 25/30kl/s)
  • Processing speed and resolution (auxiliary) D1 - 704x576 (1 ~ 25fps), D1 - 704x480 (1 ~ 30fps)
  • Data transfer rate control CBR / VBR
  • Bit rate 32Kbps ~ 6144Kbps (H.264), 12Kbps ~ 6400Kbps (H.265)
  • Day/Night mode Auto (ICR) / Color / Black White
  • Gain control Automatic (AGC) / Manual
  • BLC Support
  • HLC Support
  • Background compensation DWDR
  • White balance Automatic (AWB), Natural, Street light, Outdoor, Manual, Region
  • Noise reduction 3D DNA
  • Smart IR Support
  • Privacy zones On/Off (4 areas, rectangles)
  • Motion detection On/Off (4 areas, rectangles)
  • ROI (Region of Interest) On/Off (4 areas)
  • Mirror reflection Support
  • Image rotation 0°, 90°, 180°, 270° (supports 90°, 270° for resolutions 2688x1520 and below)
  • Event triggers Motion detection, tamper, connection loss, IP conflict, unauthorized access, voltage anomaly
  • Network 1x RJ45 10/100 Base-T
  • System parameters 1x 5.5 / 2.1 socket on the cable
  • Supported protocols IPv4, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
  • Compliance with standards ONVIF (Profile S), CGI, Genetec, P2P
  • Number of logged in users 20 users
  • Network archiving FTP, Dahua Cloud
  • Browser support IE, Chrome, Firefox
  • Remote control CMS (Smart PSS), DSS, DMSS, P2P; Mobile devices: iOS, Android
  • Certificate LVD: EN62368-1, EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B (20-01-2022)
  • Construction Camera front: metal, Camera body: metal, Holder: metal
  • Tightness class IP67
  • Power supply DC 12V (±30%), PoE DC 48V (802.3af)
  • Energy consumption Basic: 1.9W (12V DC), 2.3W (PoE); Max: 3.9W (12V DC), 4.5W (PoE)
  • Humidity 0 ~ 95% (non-condensing)
  • Temperature -40°C ~ +60°C (-40°F ~ +140°F)
  • Operating temperature -40°C ~ +60°C (-40°F ~ +140°F)
  • Weight 320g (0.71Ib)
  • Size Ø94x85.6mm (Ø3.7" x 3.4")

ManufacturerDahua
Manufacturer codeDAHIPCHDW1639TAIL028J
Weight0.34 kg
