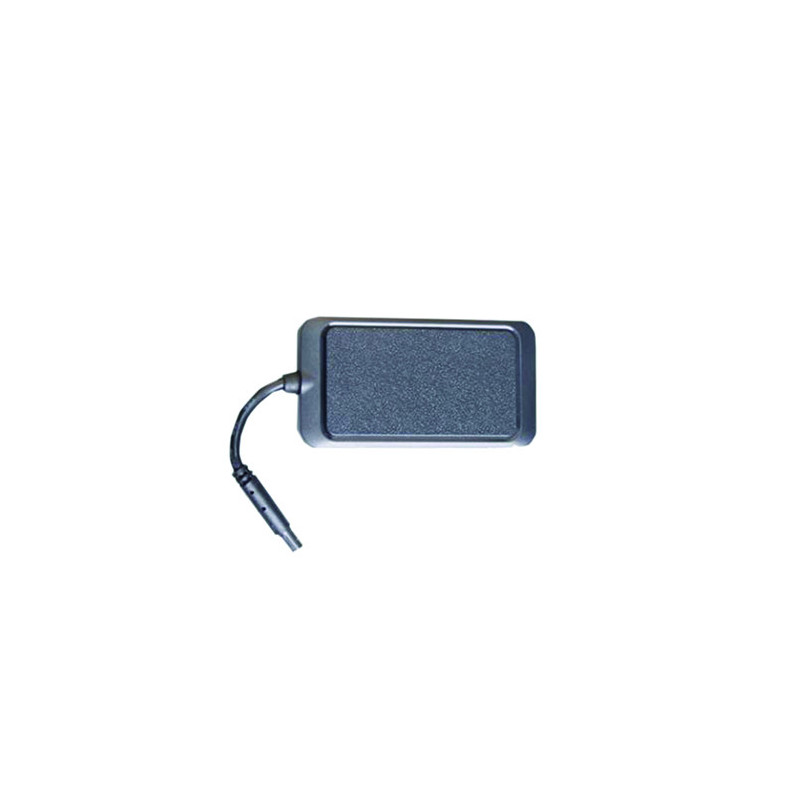

Car GPS tracking device

Car GPS tracking device

Small and compact car GPS tracking device. It has not only GPS tracking function, but also SOS calls.Features:

• Remote car stop


• Dust and water resistant (IP65)


• Combustion (ACC) detection


• Adaptation to different models (9-90V)


• Overspeed alarm


• GSM card is not included in the package.


• Location mapping on Google Maps

GSM technical data:

• GSM frequency: 850/900/1800/1900 MHz


• GPRS: Class 12, TCP/IP


• Memory: 32+32Mb


• Phase error: RMSPE<5,PPE<20


• Maximum frequency error: ±0.1ppm

GPS technical data:

• GPS chip: MTK high sensitivity chip


• Frequency: L1,1575.42MHz C/A


• GPS channels: 66


• Location detection: <10 meters


• Tracking sensitivity: -162dBm


• Minimum signal level required for setpoint during cold start: -148dBm

Time to first fix (TTFF):

• Coordinate acquisition time when time and last location coordinate are known (hot start) <1 sec.


• Coordinate acquisition time when the initial coordinate and time are not known (cold start) <35 sec.

Other technical data:

• Integrated GPS antenna


• Battery: 270mAh/3.7V lithium polymer battery


• Operating voltage: 9-90VDC/7mA (60VDC)


• Standby time: 60 hours


• Working mode: 3 hours


• Operating temperature: -20C~ +70C


• Size: 45x22.5x30.0 mm


• Weight: 41g

Coordinated and tested operation with the Tracksolid.com operating platform on Windows, Android, iOS systems.

• Free use for one year. There is an option to purchase further use of the platform.


• The app allows you to configure the device and monitor all collected information - location, time, status, etc.
