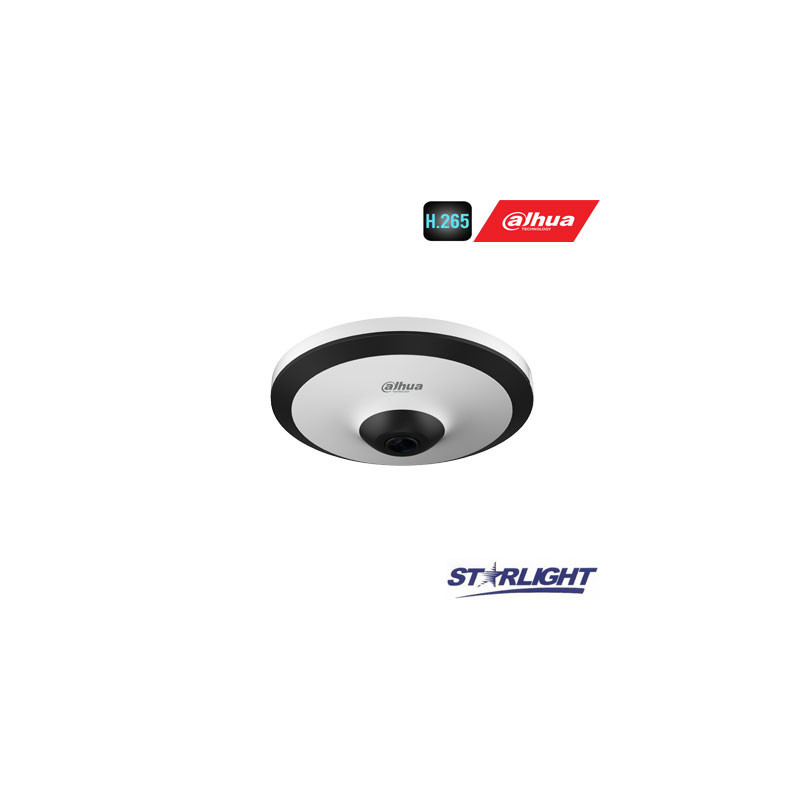

Camera - IPC-EW5541-AS 5MP Fisheye IP Camera 2592x1944 PoE
Product reference: 14-6939554993855
The 5MP Fish-Eye IP camera IPC-EW5541-AS has a 5MP progressive CMOS sensor with a maximum resolution of 2592 x 1944. It offers advanced features such as intelligent image analysis, multi-stream capabilities, and supports PoE power supply.
Camera - IPC-EW5541-AS 5MP Fisheye IP Camera 2592x1944 PoE

Camera - IPC-EW5541-AS 5MP Fisheye IP Camera 2592x1944 PoE

Product reference: 14-6939554993855
The 5MP Fish-Eye IP camera IPC-EW5541-AS has a 5MP progressive CMOS sensor with a maximum resolution of 2592 x 1944. It offers advanced features such as intelligent image analysis, multi-stream capabilities, and supports PoE power supply.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
30614 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

5MP Fish-Eye IP Camera IPC-EW5541-AS


The 5MP Fish-Eye IP camera IPC-EW5541-AS features a 5MP progressive CMOS sensor with a maximum resolution of 2592 x 1944. It includes advanced features such as intelligent image analysis, multi-stream capabilities, and supports PoE for power supply.


  • High-resolution 5MP image sensor for clear image quality.
  • 180° field of view, ensuring wide coverage of large areas.
  • Advanced smart features including heat maps and people counting.
  • Durable construction with metal and plastic housing, suitable for a variety of environments.

Features
Image sensor 1/2.7' 5 megapixel progressive CMOS
ROM 128MB
RAM 512MB
Scanning system Progressive
Electronic shutter speed Auto/Manual 1/3 s-1/100,000 s
Min. lighting 0.006 Lux @F2.0
S/N ratio ≥ 56 dB
Lighting distance 10 m (32.8 ft)
Number of lights 3 (IR LEDs)

Lens
Lens type Fixed focal length
Mounting type M12
Focal length 1.4 mm
Max aperture F2.0
Field of view Horizontal: 180°, Vertical: 180°, Diagonal: 180°
Close focus distance 0.2 m (0.7 ft)

Video
Image compression H.265; H.264; H.264H; H.264B; MJPEG (only support substream)
Video frame rate Main stream (2592 × 1944 @1-25/30 fps), sub stream (704 × 576 @1-25 fps), third stream (1280 × 720 @1-25/30 fps)
Flow capabilities 3 streams
Bit rate control CBR/VBR
Video bitrate H.264: 3kbps-8192kbps; H.265: 3kbps-8192kbps
Day/Night Automatic (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Noise reduction 3D DNA

Network
Network interface RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
User/Host 20 (Total bandwidth: 64M)
Memory Dahua Cloud; FTP; SFTP; Micro SD card (max. 256G); NAS

Power supply
Power source 12V DC/PoE
Power consumption Basic: 3.6W (12V DC); 4.4W (PoE); Max.: 7.3W (12V DC); 8.8W (PoE)

Environment
Operating conditions -10°C to +50°C (14°F to +122°F)/Less than 95% RH
Storage conditions -40°C to +60°C (-40°F to +140°F)

Construction
Housing Metal + plastic
Dimensions 44.6mm × 126.2mm (1.8' × 5.0')
Net weight 299g (0.7lb)
Gross weight 441 g (1.0 lb)
