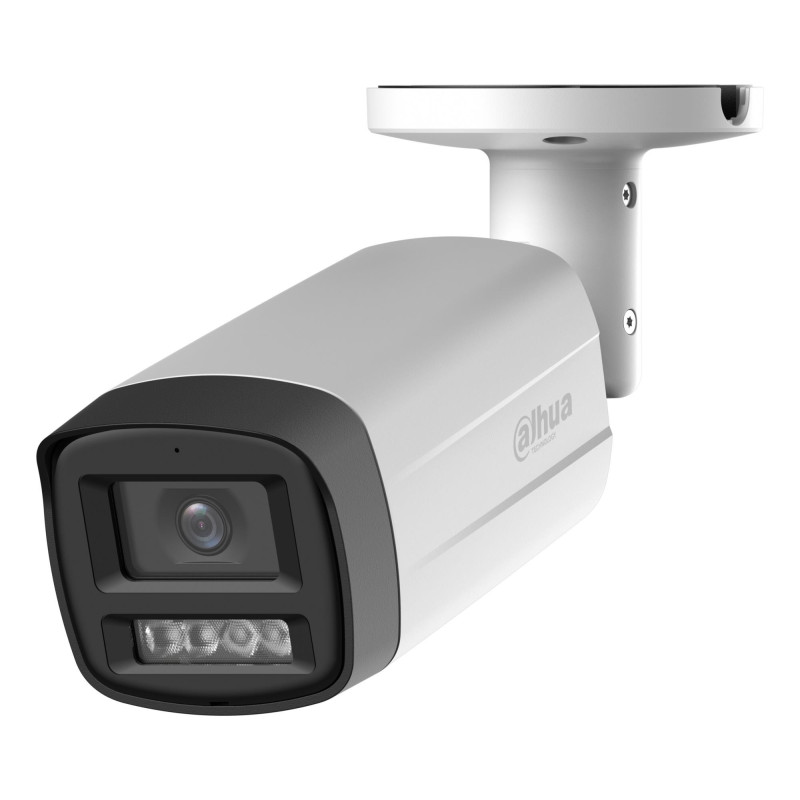

CAMERA HDCVI 8MP BULLET / HFW1801THILA-0360B-S3DIP DAHUA
Product reference: 2-6939554962721

CAMERA HDCVI 8MP BULLET / HFW1801THILA-0360B-S3DIP DAHUA

Product reference: 2-6939554962721
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
91,36 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as fullcolor and starlight, providing various solutions for different scenarios.

Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.

Smart Light+
Equipped with advanced LEDs and beam processing technology, the camera effectively reduces interference of stray light, ensuring concentrated illumination within the lens's field of view. This allows the camera to easily produce clear images that reveal the fine details of targets even in low light conditions.

Smart Area Lighting
Automatically adjusts the intensity of the brightness and exposure for the left and right areas in the video based on the proportion and position of the targets to reveal more details in the image.

Broadcast-quality Audio
Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Super Adapt
With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Advanced 3DNR
Dahua's advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.

  • > * The parameters and datasheets below can only be applied to 1801-IL-S3 series
  • In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version
  • In order to use the TVI Audio, the firmware of HDCVI camera must be upgraded to V1.001.0000002.0.R.20251204 or later version
  • Max. 15 fps@4K
  • Smart Dual Light
  • 80 m illumination distance
  • Super Adapt
  • Built-in Mic
  • 3.6 mm fixed lens (2.8 mm, 6 mm optional)
  • CVI/CVBS/AHD/TVI switchable
  • IP67, 12 VDC

Analoginio signalo formato sistema NTSC/PAL
Apsaugos ypatybės Atsparus korozijai/Atsparus vandeniui
Aptikties atstumas 113.6 m
Apšvietimo LED diodų skaičius 4
Atitikties sertifikatai CE/Elektromagnetinis suderinamumas (EMS)/Žemos įtampos direktyva (LVD)
Atpažinimo atstumas 22.7 m
Aukštis 90.4 mm
Baltos spalvos balansas Automatinis
Bluetooth Ne
BNC išvesties prievadai 1
Bruto svoris 0.65 kg
Darbo santykinės drėgmės diapazonas 0 - 95 %
Darbo temperatūros diapazonas (TT) -40 - 60 °C
DC išeigos įtampa 12
Dienos / nakties režimas Taip
Ethernet LAN jungtis Ne
Fiksuotas fokusavimas Taip
Fiksuotas židinio nuotolis 3.6 mm
Foninio apšvietimo kompensavimas Taip
Forma Kulka (forma)
Fotoaparatų skaičius 1
Galios suvartojimas (maks.) 7.2 W
Identifikavimo atstumas 11.4 m
Ilgis 240.7 mm
Integruotas kietasis diskas Ne
Išplėstinis dinaminis diapazonas (WDR) Taip
Jutiklio tipas CMOS
Kadrų sparta 15 fps
Kameros išlaikymo tipas Elektroninis
Kameros užrakto greitis 1/25 - 1/100000 s
Korpuso medžiaga Metalas/Plastikas
LED tipas Infraraudonieji / balti
Lęšio montavimo sąsaja M12
Maitinimo šaltinio tipas DC
Maksimali rezoliucija 3840 x 2160 pikseliai
Maksimalus apertūros skaičius 2
Mažiausias fokusavimo atstumas 2.1 m
Montavimo tipas Ant lubų / sienos / stulpo
Naktinio matymo atstumas 80 m
Naktinis matymas Taip
Neto svoris 0.42 kg
Objektyvo vaizdo kampas, horizontalus 105.5 °
Objektyvo vaizdo kampas, vertikalus 56.5 °
Objektyvo vaizdo kampas, įstrižainė 125.3 °
Paketo svoris 590 g
Palaikomi vaizdo režimai 2160p/480p/576p
Palaikomos grafikos rezoliucijos 3840 x 2160/960 x 480/960 x 576
Plotis 90.7 mm
Posvyrio kampo intervalas 0 - 90 °
Produkto spalva Balta/Juoda
Progresyvus nuskaitymas Taip
Rainelė Taip
Ryšio technologija Vielinis
Sandėliavimo santykinis drėgmės diapazonas 0 - 95 %
Sandėliavimo temperatūros norma (T-T) -40 - 60 °C
Shipping Box Depth 30 cm
Shipping Box Height 11 cm
Shipping Box Weight 0.65 kg
Shipping Box Width 12 cm
Signalo ir triukšmo santykis (SNR) 65 dB
Skaitmeninis platus dinaminis diapazonas (DWDR) Taip
Stebėjimo atstumas 45.4 m
Sukimosi kampas 360 °
Summary Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Black, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 105.5°, Lens viewing angle, vertical: 56.5°. Sensor type: CMOS. Detect distance: 113.6 m, Observe distance: 45.4 m, Recognize distance: 22.7 m
Svoris 420 g
Sąsaja BNC
Talpinimas palaikomas Vidaus ir lauko
Tarptautinės apsaugos (IP) kodas IP67
Tipas CCTV stebėjimo kamera
Triukšmo mažinimas Taip
Triukšmo sumažinimo technologija 3D triukšmo mažinimas
Unit Box Height 0.11
Unit Box Length 0.3
Unit Box Width 0.12
Unit Brutto Volume 0.00396 cubm
Valdymo sustiprinimo tipas Automatinis
Veidrodis Taip
Vendor Homepage https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/4K/Smart-Dual-Light/HAC-HFW1801TH-IL-A=S3
Vieneto aukštis 11 cm
Vieneto gylis 30 cm
Vieneto plotis 12 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Viso diapozonas 0 - 360 °
Įmontuotas mikrofonas Taip
Šviesos efekto kompensavimas (HLC) Taip
"Smart IR" įtaisas Taip
"Wi-Fi" Ne
