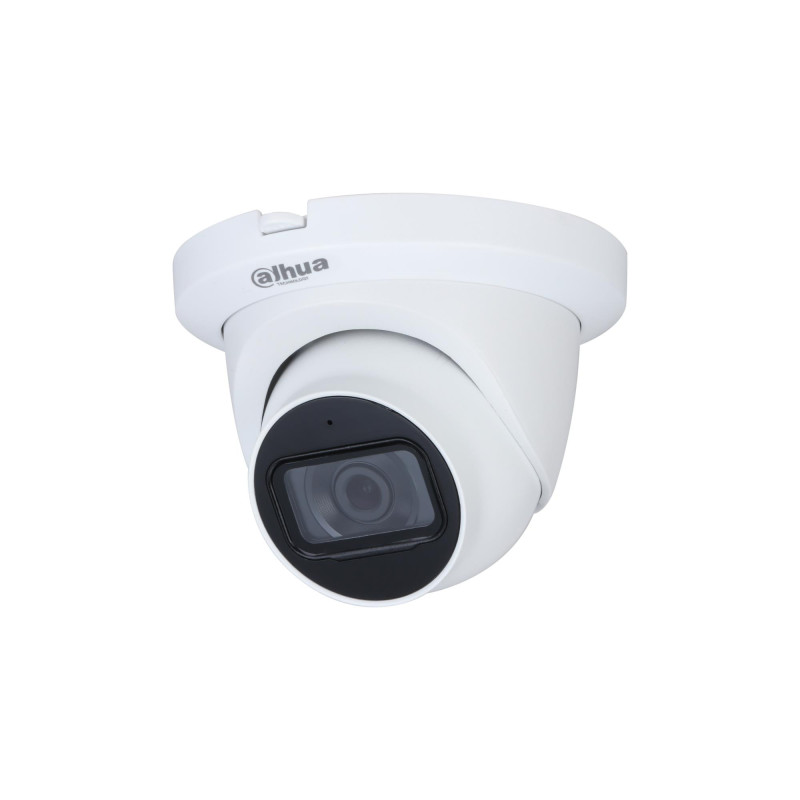

CAMERA HDCVI 2MP IR EYEBALL / HAC-HDW1231TLMQ-A-0280B DAHUA
Product reference:
2-6923172506658
CAMERA HDCVI 2MP IR EYEBALL / HAC-HDW1231TLMQ-A-0280B DAHUA
Product reference:
2-6923172506658
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- Max 30 fps@1080p
- Starlight, 130 dB true WDR, 3D NR
- 3.6 mm fixed lens (2.8 mm optional)
- CVI/CVBS/AHD/TVI switchable
- Super Adapt
- Built-in mic(-A)
- Max. IR length 30m, Smart IR
- IP67, DC 12 V
- Quick-to-install saves installation time
| Analog signal format system | NTSC/PAL |
| Angle of rotation | 360 ° |
| Audio input channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes |
| Bluetooth | No |
| BNC output ports | 1 |
| Built-in HDD | No |
| Built-in microphone | Yes |
| Camera pan control | Yes |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Closest focusing distance | 0.7 m |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| DC output voltage | 12 |
| DC-in jack | Yes |
| Detect distance | 43.9 m |
| Diameter | 109.9 mm |
| Ethernet LAN | No |
| Fixed focal length | 2.8 mm |
| Form factor | Dome |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Height | 88.1 mm |
| Highlight Compensation (HLC) | Yes |
| Housing material | Metal/Plastic |
| Identify distance | 4.4 m |
| International Protection (IP) code | IP67 |
| Lens viewing angle, diagonal | 127 ° |
| Lens viewing angle, horizontal | 107 ° |
| Lens viewing angle, vertical | 56 ° |
| Manual | Yes |
| Maximum aperture number | 1.6 |
| Maximum resolution | 1920 x 1080 pixels |
| Mirror | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Number of cameras | 1 |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
| Observe distance | 17.5 m |
| Operating temperature (T-T) | -40 - 60 °C |
| Optical sensor size | 1/2.8 " |
| Package weight | 450 g |
| Pan range | 0 - 360 ° |
| Placement supported | Outdoor |
| Power consumption (max) | 3.1 W |
| Power source type | DC |
| Privacy masking | Yes |
| Product colour | White |
| Product Net Weight | 0.28 kg |
| Recognize distance | 8.8 m |
| Sensor type | CMOS |
| Shipping Box Depth | 13 cm |
| Shipping Box Height | 12 cm |
| Shipping Box Weight | 0.439 kg |
| Shipping Box Width | 11 cm |
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Smart IR | Yes |
| Storage temperature (T-T) | -40 - 60 °C |
| Summary | Dahua Technology Lite HAC-HDW1231TLMQ-A-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 107°, Lens viewing angle, vertical: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Detect distance: 43.9 m, Observe distance: 17.5 m, Recognize distance: 8.8 m |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/960 x 480/960 x 576 |
| Supported video modes | 1080p/480p/576p |
| Tilt angle range | 0 - 78 ° |
| Total megapixels | 2 MP |
| Type | IP security camera |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.11 |
| Unit Calculated Volume | 0.001716 cubm |
| Unit Calculated Weight | 0.439 kg |
| Unit Depth | 13 cm |
| Unit Height | 12 cm |
| Unit Width | 11 cm |
| Units per Shipping Box | 1 |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HDW1231TLMQ(-A) |
| Weight | 280 g |
| White balance | Auto |
| Wi-Fi | No |
| Wide Dynamic Range (WDR) | Yes |
