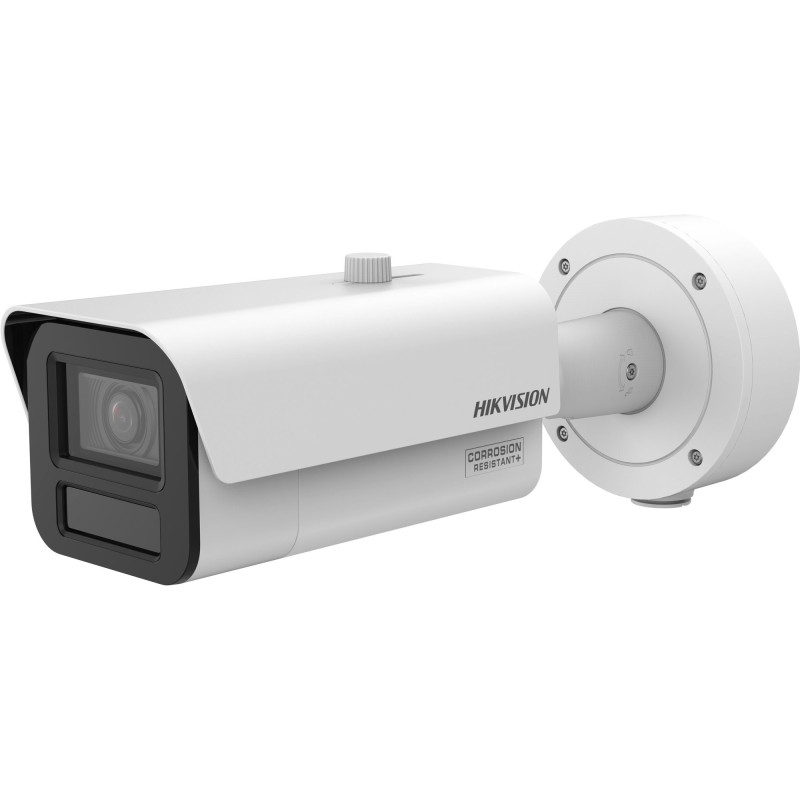

Bullet camera Hikvision iDS-2CD7A46G2-IZHSY F2.8-12 (4MP, IR 60m, PoE, IP67, IK10, H.265+)
Product reference:
26-6942160464152
- High quality image with 4 MP resolution
- Excellent visibility in low light with DarkFighter 2.0 technology
- Clear image in strong backlight thanks to 150 dB AWDR technology
- Efficient H.265+ compression technology saves bandwidth and storage space
- 5 streams for different applications
- Water and dust resistant (IP67), vandal resistant (IK10) and corrosion resistant (NEMA 4X)
- Clear images of vehicles and people at different speeds with ShotN technology
- High frame rate - up to 2MP@120fps and 4MP@60fps
- Integrated heater ensures clear vision in rainy or snowy weather
- Integrated G-sensor for vibration detection
- Integrated energy consumption measurement, statistical monitoring
- Smart features - people counting, queue management, heat map, facial recognition, helmet and safety vest capture
Bullet camera Hikvision iDS-2CD7A46G2-IZHSY F2.8-12 (4MP, IR 60m, PoE, IP67, IK10, H.265+)
Product reference:
26-6942160464152
- High quality image with 4 MP resolution
- Excellent visibility in low light with DarkFighter 2.0 technology
- Clear image in strong backlight thanks to 150 dB AWDR technology
- Efficient H.265+ compression technology saves bandwidth and storage space
- 5 streams for different applications
- Water and dust resistant (IP67), vandal resistant (IK10) and corrosion resistant (NEMA 4X)
- Clear images of vehicles and people at different speeds with ShotN technology
- High frame rate - up to 2MP@120fps and 4MP@60fps
- Integrated heater ensures clear vision in rainy or snowy weather
- Integrated G-sensor for vibration detection
- Integrated energy consumption measurement, statistical monitoring
- Smart features - people counting, queue management, heat map, facial recognition, helmet and safety vest capture
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- AI Open Platform
- Model Specification Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model)
- Approvals
- Corrosion protection NEMA 4X (NEMA 250-2018)
- Automation EN50121-4
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- Environmental protection CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Other PVC FREE
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
- Security CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1
- Sound
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16) to 64 Kbps (AAC-LC)
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio sampling frequency 8 kHz/16 kHz/32 kHz/48 kHz
- Audio type Mono sound
- Removing extraneous sounds Yes
- Camera
- DayNight IR cut filter,Blue glass module (less ghost phenomenon)
- Image sensor 1/1.8" Progressive Scan CMOS
- Max resolution 2688 × 1520
- Min. lighting Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter speed 1 s to 1/100,000 s
- DOROUS
- DOROUS Wide：2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 mTele:2.8 to 12 mm:D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 years old
- Smart features
- Facial recognition Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,Uploads face with background and closed-up face pictures, Supports best shot and quick shot for capture mode, Supports dynamic mosaic mask, Gets 7 face features
- Face Comparison Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption
- Hard Hat Detection Detects up to 30 human targets simultaneously Supports up to 4 shield regions
- Heat map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
- Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, face capture, multi-target-type detection
- Multi-target type Detection Supports simultaneous detection and capture of human body, face, and vehicle,Gets 7 face features,Gets 13 human body features,Gets 2 vehicle features,Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle,Supports dynamic mosaic mask
- On/Off Duty Detection Supports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: absence detection, on/off duty detectionSupports parameter settings: person on duty, absence duration
- People counting Supports Multi-Dimension People Counting,Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.),Supports real-time uploading and uploading by statistical cycle,Supports generating daily, weekly, monthly or annually reports,Supports dynamic deduplication based on face picture comparison, and can filter out the target with the same custom face pictures, same attributes, or filter out repeated invalid targets within the set time interval,Supports face feature deduplication,Supports people flow data replenishment
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Support combined event alarm triggering
- Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Regional People Counting Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports parameter settings: alarm times per exception, alarm interval, first alarm delay Supports searching real-time number of people People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B) Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- Features
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, video quality diagnosis, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), vibration detection
- Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
- Smart features scene change detection, audio exception detection, defocus detection
- General data
- Dew removal Yes
- Device management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
- Dimensions With -Y: Ø140 mm × 377.4 mm (Ø5.5" × 14.9"), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7" × 14.8")
- Main functions Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
- Heater Yes
- Integrated Connector Panel -Y: No
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Material Aluminum alloy body
- Package size 425 mm × 190 mm × 180 mm (16.7" × 7.5" × 7.1")
- Energy three-core terminal block,12 VDC ± 20%, 1.88 A, max. 22.56 W,24 VAC ± 20%, 1.57 A, max. 21.5 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
- Working conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Storage conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
- Weight Approx. 2170 g (4.78 lb.)
- Weight with packaging Approx. 3275 g (7.22 lb.)
- Lighting
- IR wavelength 850 nm
- Smart additional lighting Yes
- Additional lighting range 2.8 to 12 mm: Monitoring: 60 m; 8 to 32 mm: Monitoring: 100 m
- Additional lighting type AND
- Photo
- Day/Night mode Day, Night, Auto, Schedule, Alarm Trigger
- Photo beautification BLC,HLC,3D DNA, Distortion Correction, Defog
- Photo parameters converter Yes
- Image settings Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Image stabilization EIS
- Photo overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Privacy mask 8 programmable polygon privacy masks
- SNR ≥ 52 dB
- Wide Dynamic Range (WDR) 150dB
- Interface
- Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
- Sound 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Web interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Output power 12 VDC, max. 100 mA
- RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reboot button Yes
- Video output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Lens
- Aperture 2.8 to 12 mm: F1.38 to F2.53, 8 to 32 mm: F1.7 to F1.73
- Focal Length FOV 2.8 to 12 mm, horizontal FOV 106° to 41.8°, vertical FOV 55.4° to 23.6°, diagonal FOV 130° to 48.1°8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
- Focusing Auto,Semi-auto,Manual
- Iris type P-iris
- Mobile Communication
- Frequency NO
- SIM Card Type NO
- Standard NO
- Network
- API ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
- Customer iVMS-4200,Hik-Connect,Hik-Central
- Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
- Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
- Live video viewing Up to 20 channels
- User/port Up to 32 users3 user levels: administrator, operator, and user
- Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Bit rate control CBR,VBR
- Fifth stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
- Fourth stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
- H.264 type Baseline Profile, Main Profile, High Profile
- H.265 type Main Profile
- Main stream Monitoring mode:50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI) 4 fixed regions for each stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Secondary flow 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
- Target cropping Yes
- Third stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video bit rate 32 Kbps to 8 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
- e-PTZ Support Patrol and Auto Tracking settings
| Manufacturer | Hikvision |
| Manufacturer code | KIPDS2CD7A46G2IZHSY |
| Weight | 2.315 kg |
