Biometric door controller with fingerprint and EM/HID/MF/NFC/CPU card readers

Biometric door controller with fingerprint and proximity card reader sPress2, EM/HID/MF/NFC/CPU, IP65.
Features:

• This is an autonomous access control with a fingerprint and proximity card reader.


• This biometric access control controller is designed for outdoor conditions (-20°C~+60°C temperature), has IP65 water and dust resistance, suitable for outdoor or indoor use.


• Optionally 125KHz EM / HID or 13.56MHz Mifare / NFC / CPU cards are supported.


• 4bit, 8bit keyboard can be connected.


• The door controller can authenticate users through multiple verification modes, such as fingerprint and card, to ensure a higher level of security.


• A remote control is included.

Technical data:

• Number of users (cards/PIN codes): 20,000 (21 administrators).


• Fingerprint capacity: 219 users + 21 administrators.


• PIN code length: 4-6 digits.


• Supported card frequencies: 125KHz (EM / HID cards) / 13.56MHz (Mifare / NFC / CPU cards; ISO14443A).


• Supply voltage: DC 10~14 V.


• Power consumption in standby mode: lt;50mA.


• Card scanning distance: 2~5 cm.


• Number of doors supported: 1.


• Output protocol: 26/66 bit Wiegand.

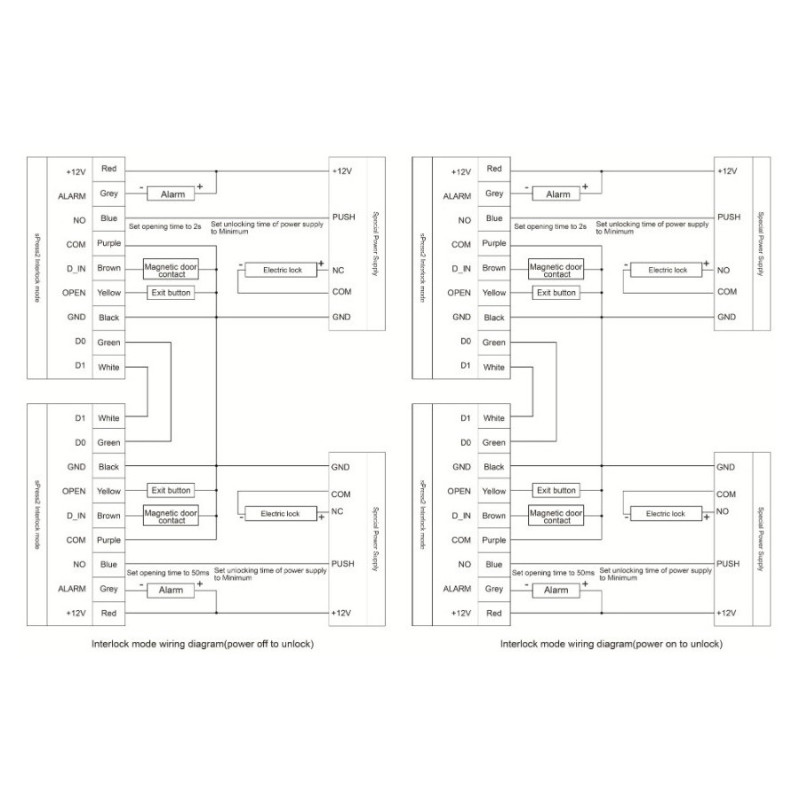

• Wire connections: for lock, exit button, door sensor, doorbell, alarm.


• Relay: 1 (for lock, No, Nc, Com contacts).


• Adjustable relay activation time: 0-99 seconds.


• Security class: IP65.


• Mounting: on the wall.


• Material: zinc alloy.


• Operating temperature: -20°C~+60°C.


• Relative humidity: 0%~95%RH.


• Dimensions: 170x 83 x 35 mm.
